Lake Shore Model 331 Temperature Controller User’s Manual
Refer to
Installation
Procedure
1. Use 5/64 inch (2 mm) hex key to remove two 6-32 x 1/4
black button head screws from side of instrument.
2. Place Instrument on shelf.
3. Use 5/64 inch (2 mm) hex key to reinstall two 6-32 x 1/4
black button head screws through side of rack into
corresponding holes in the side of the instrument.
Installation ProcedureInstallation Procedure
C-331-7-4.eps

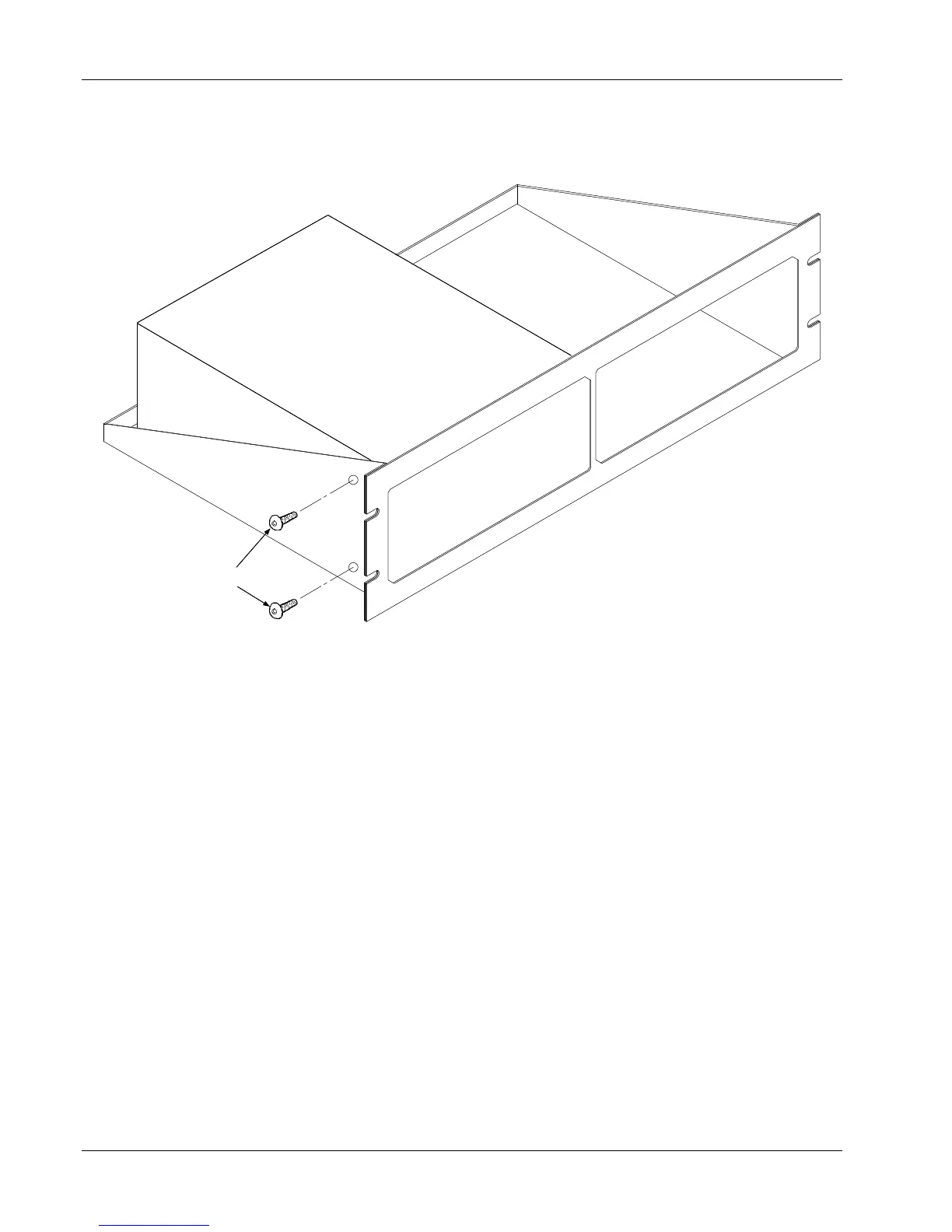

Figure 7-4. Model RM-2 Dual Rack-Mount Shelf
7-6 Options and Accessories
