DISPLAY & KEYPAD FUNCTIONS
Display
The meter has a large custom LCD that consists of 4-digit segments and
operation annunciators for uS/mS for the CON 6 meter, or ppm/ppt for the
TDS 6 meter, and °C (Temperature). Other annunciators include “HO”
(when the HOLD function is activated) and “LO” (low battery condition).
See Figure below.

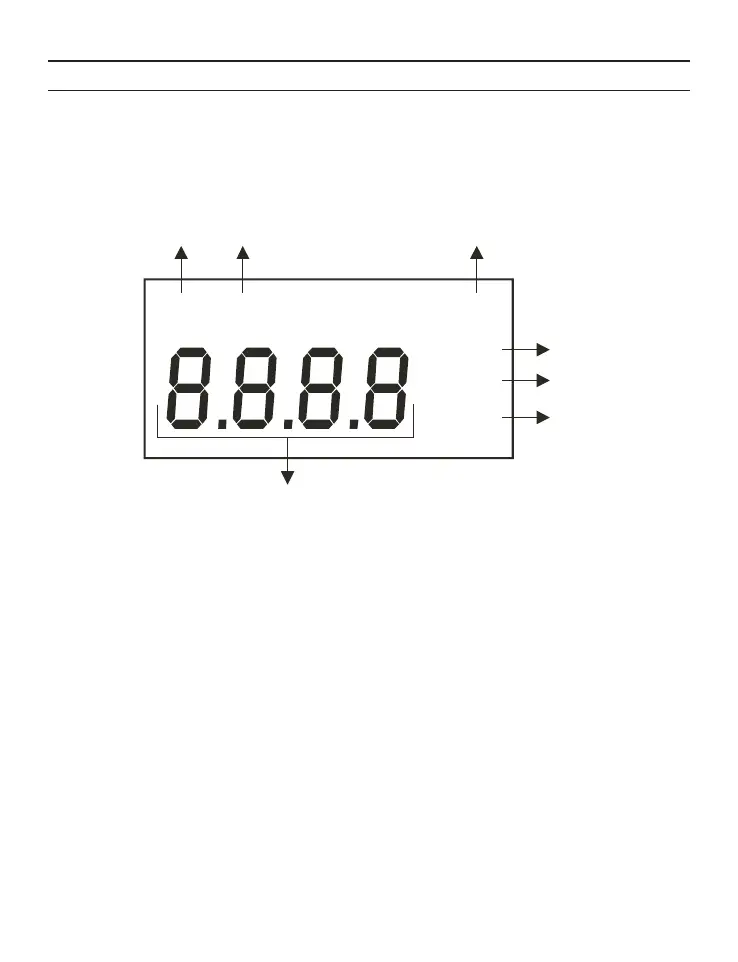

LCD and Customized Annunciators for CON 6/TDS 6 meters
1. Primary display
2. Parts Per Million (ppm) or Parts Per Thousand (ppt)
indicator - TDS 6 meter only.
3. milli-Siemens/cm (mS) or micro-Siemens/cm (µS)
indicator - CON 6 meter only.
4. Temperature indicator
5. Percentage indicator for Temperature Coefficient.
6. Low battery indicator.
7. Hold (freezed) reading indicator.
