11.1 Technical Data
11.1.1 F130l evaluation device
Housing material: Plastic
The right to make technical changes is reserved.

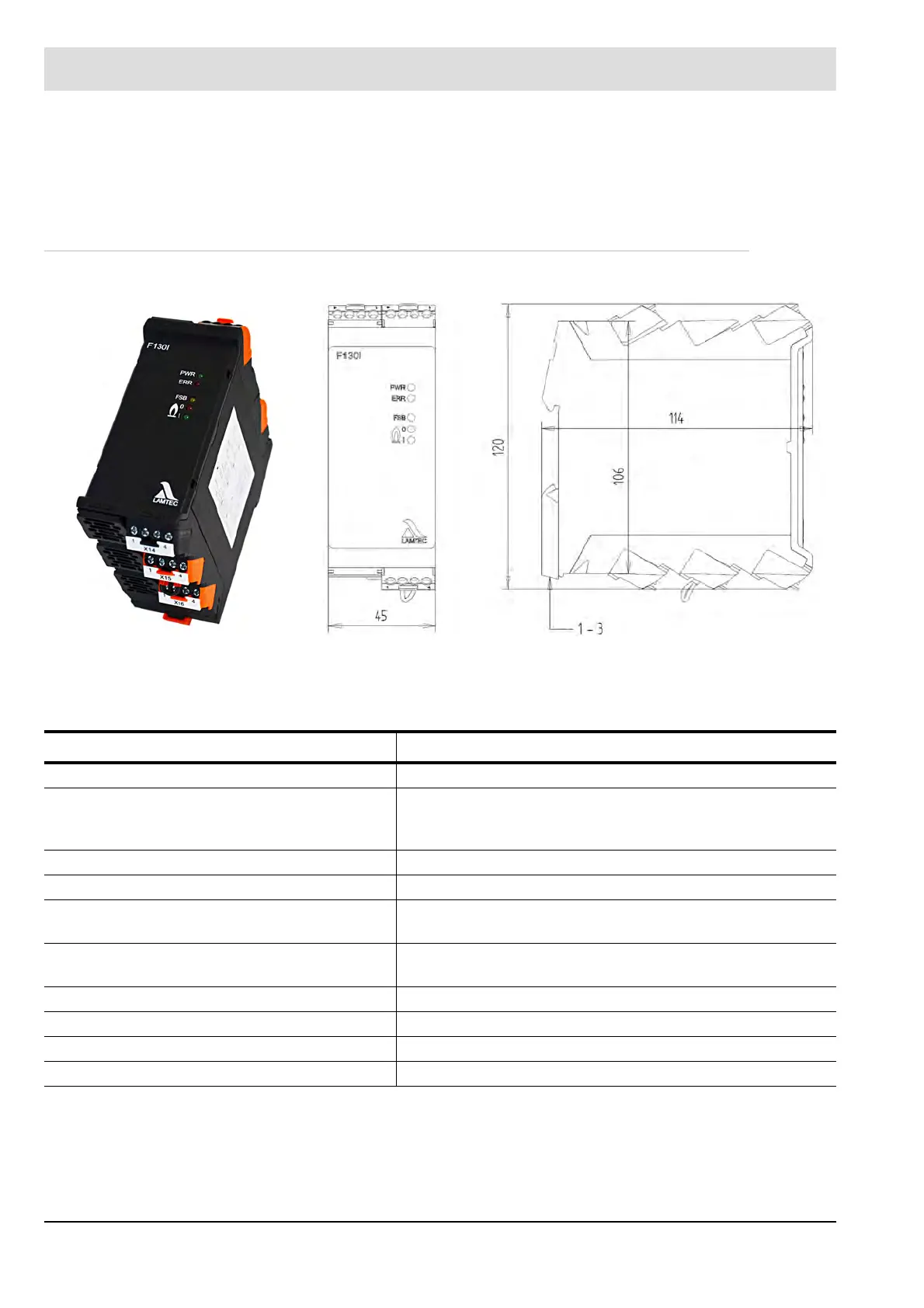

Fig. 11-1 F130I
Fig. 11-2 dimensions F130I
Input parameters
Auxiliary power/device supply
Supply voltage
1
Factory setting
230 VAC +10 % -15 % or
120 VAC +10 % -20 %
Mains frequency
1
47 Hz ... 63 Hz
Power consumption 10 VA
Internal device fusing 50 mAT for 230 V device
100 mAT for 120 V device
External device fusing
(mandatory)
min. 500 mAT
max. 4 AT
Ionisation input
Supply voltage
1, 2
(Auxiliary power) Device supply voltage
Ionisation current from 1 ADC Flame ON
Mode Continuous operation capable
1
The product may not be transported, stored or operated outside the specified range. If it is, any guarantees with regard to safety-related functions lose their valid-
ity.
2
The attainable ionisation current at the plant is dependent on the supply voltage. The higher the supply voltage, the higher the sensitivity of the Ionisation lance.
The min. sensitivity of the device of 1 uA is independent on the supply voltage. See also Chapter F130I connection diagram 120 V device.
