Lamtec F130I - Application Example

38
11 Appendix
11.2.3 Application Example
• Brahma Type AR1 Series 01
• Code 18211002
• 0,5 VA
• Connection via flat connector 6.3 x 0.8 mm

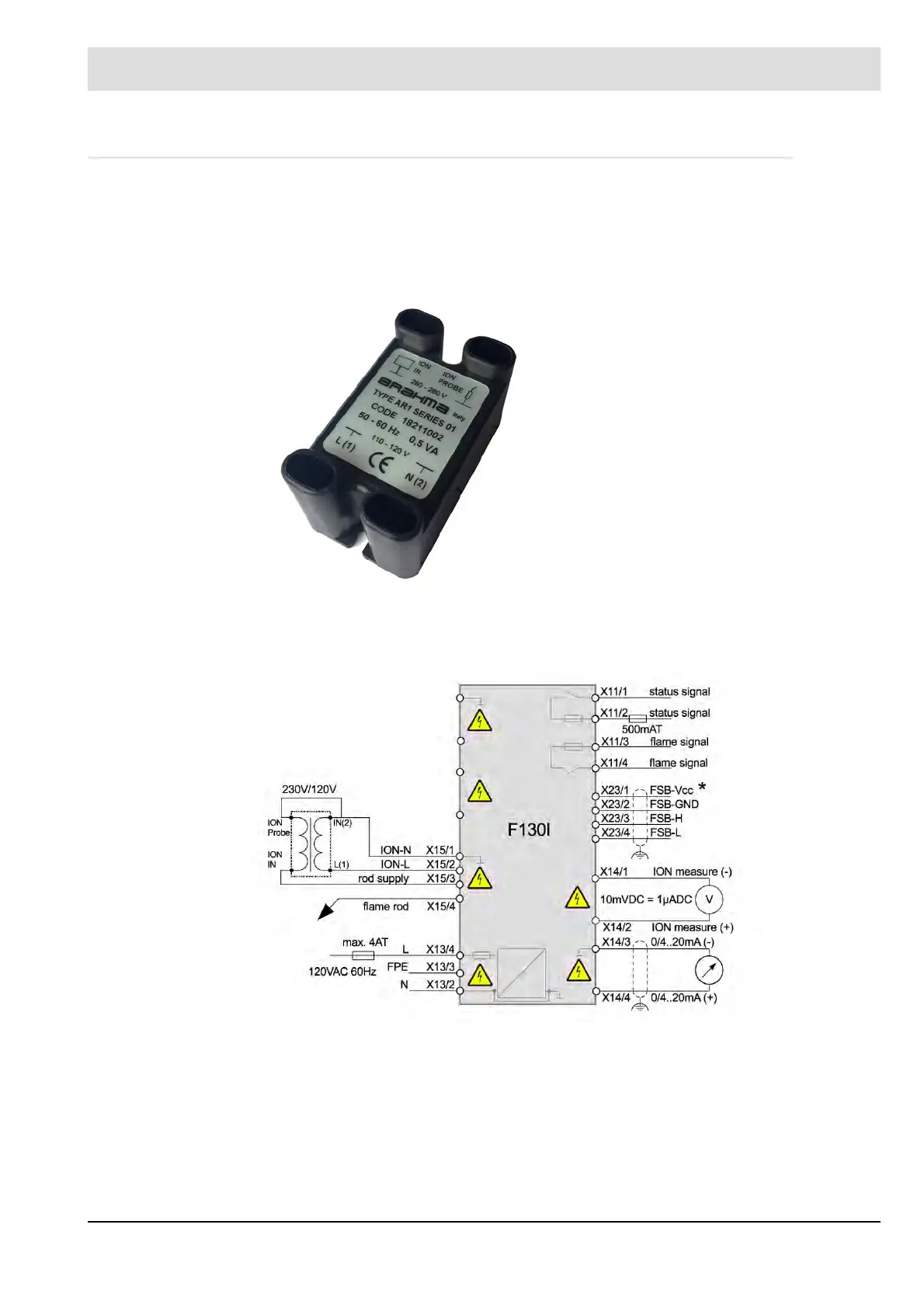

Fig. 11-5 Brahma transformer 120 V Type AR1 Series 01
Connection on F130I
Fig. 11-6 F130I Connection diagram Brahma transformer
*FSB currently no function
