The cooling system uses
coolant “R134a” refriger-
ating fluid that meets cur-
rent regulations and does not
pollute the environment if it acci-
dentally leaks. Under no circum-
stances should other fluids be
used which are incompatible
with the system components.

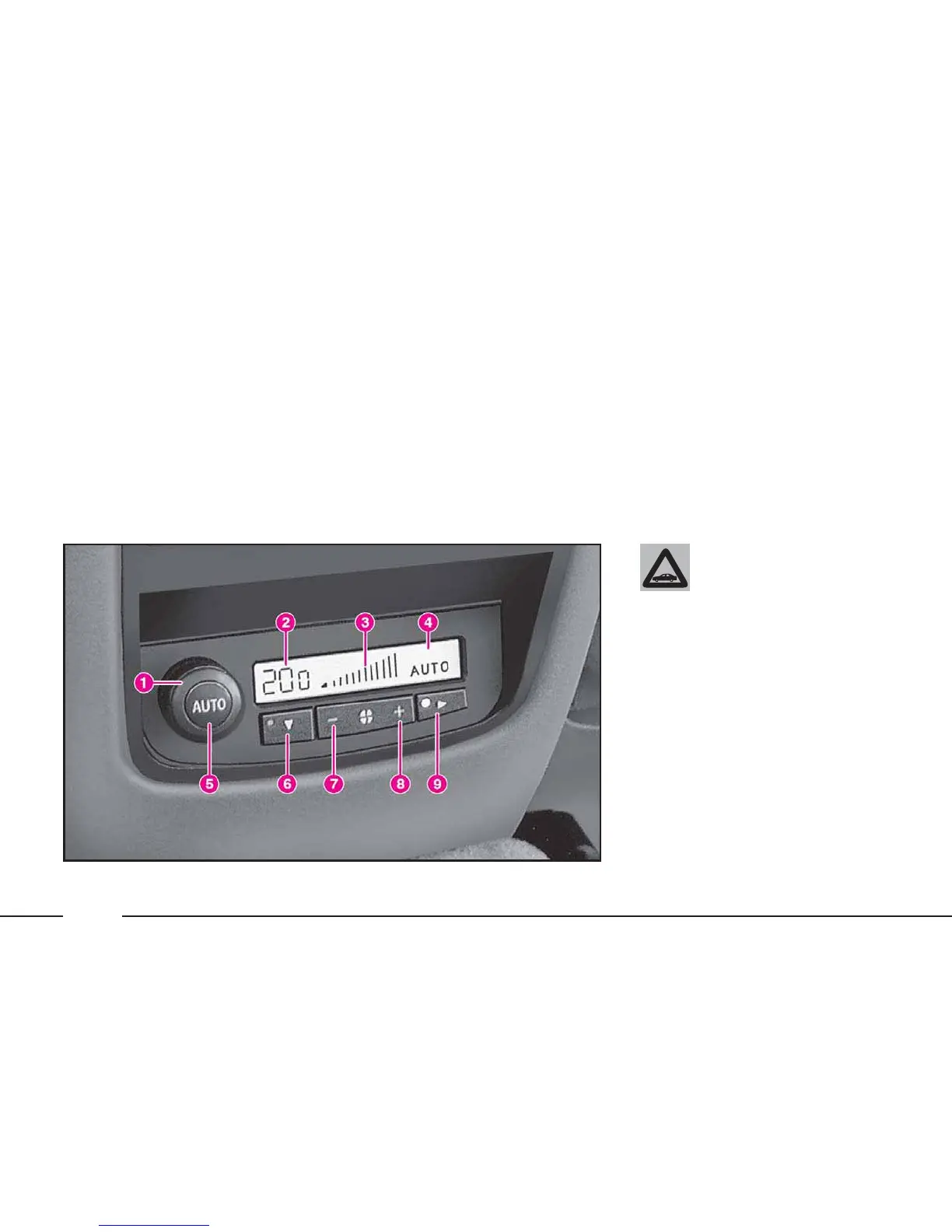

BACK CONTROL PANEL
(fig. 122)
1 - Inside temperature adjustment
knob (back-seat passengers)
2 - Display for set inside tempera-
ture (back-seat passengers)
3 - Fan speed display
4 - System status display (AUTO,
FULL AUTO)
5 - Button for automatic system
selection (back-seat passengers)
6 - Button for rear footwell air
vents
7 - Button for fan speed reduction
8 - Button for fan speed increase
9 - Button for air distribution
through front back vents
fig. 122
L0A0101b
