FUSES IN THE DASHBOARD
The fuses protecting the main
devices are arranged in a fusebox
located under the dashboard, on the
left of the steering column, behind
the glove compartment (fig. 72).
To reach the fuses open the glove
compartment A (fig. 71) and then
remove it by loosing the two screws B
with a screwdriver. After replacing
the fuses, refit the glove compart-
ment and secure it by the two screws.
The fusebox also contains tongs for
removing the fuses.
Spare fuses A (fig. 72) are housed in
horizontal position in the upper part of
the fusebox. The spare fuse present
various amperages.
The devices protected by the fuses
(fig. 73) are listed in the tables on
the following pages.
IMPORTANT Remember to
replace the spare fuse after replacing
a fuse.
FUSES IN THE ENGINE COM-
PARTMENT
The fusebox is located on the left
side of the engine compartment.
To reach the fuses remove the
cover A (fig. 74) after releasing the
fastening clips B.

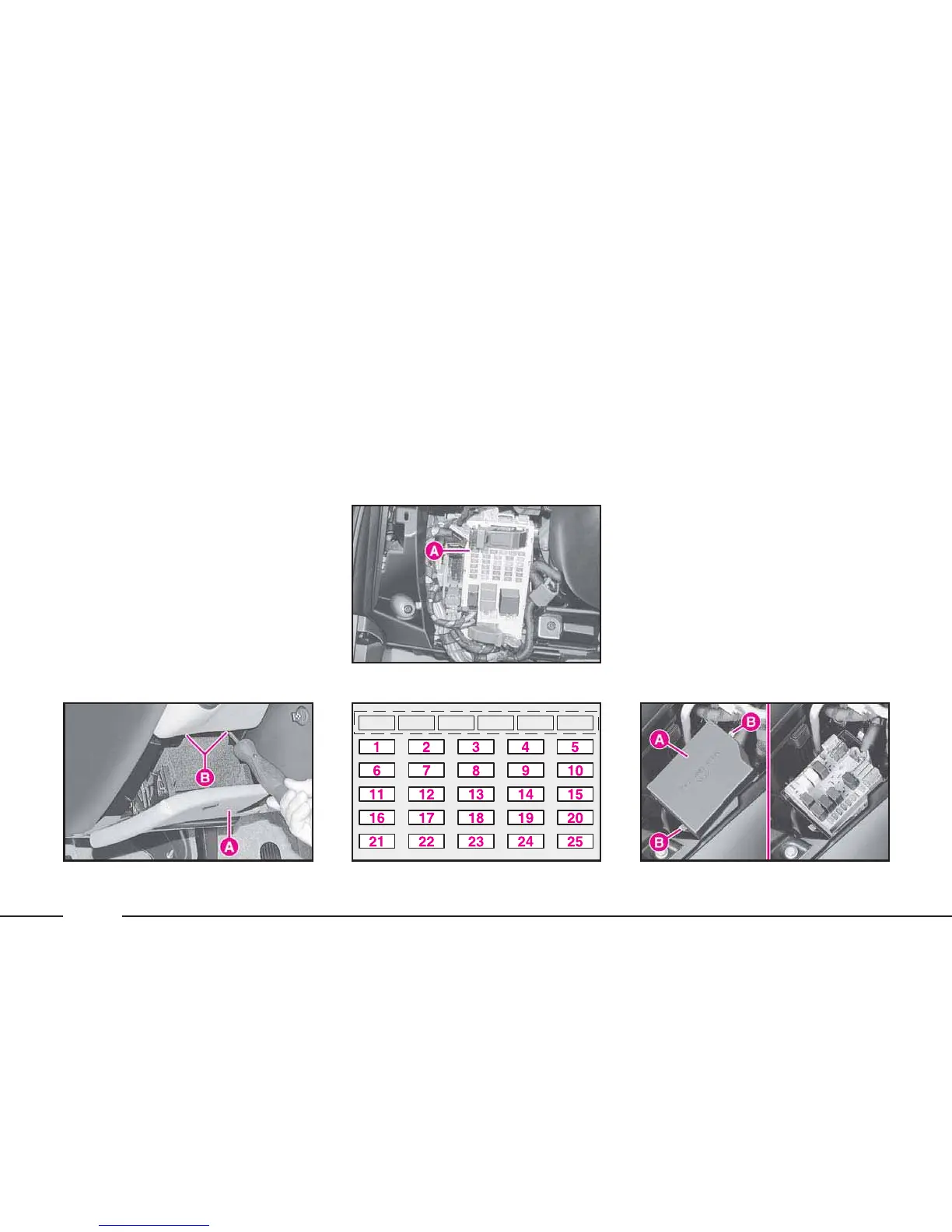

fig. 71
L0A0144b
fig. 72
L0A0143b
fig. 73
L0A0265b
fig. 74
L0A0145b
