FUSE LOCATION
The main fuses of THESIS are con-
tained into four fuse boxes, to be
found on the left side of the dash-
board, in the engine compartment,
on the battery and in the right side
compartment of the boot.
GENERAL FUSES
(MIDI-FUSE and MEGA-FUSE)
The car is fitted with a set of gen-
eral fuses (MIDI-FUSE and MEGA-
FUSE) which separately protect the
various electrical system functions in
addition to the individual device
fuses.
The general fuses are located in the
left side of the boot in a fusebox direct-
ly connected to the positive battery
terminal.
To reach the fuses:
1) Open the tailgate.
2) Loosen knob A (fig. 68) and
remove the battery cover B.
3) Press tabs A (fig. 69) and
remove the cover B.
The systems and devices protected
by the general fuses (fig. 70) are
listed on the following pages.

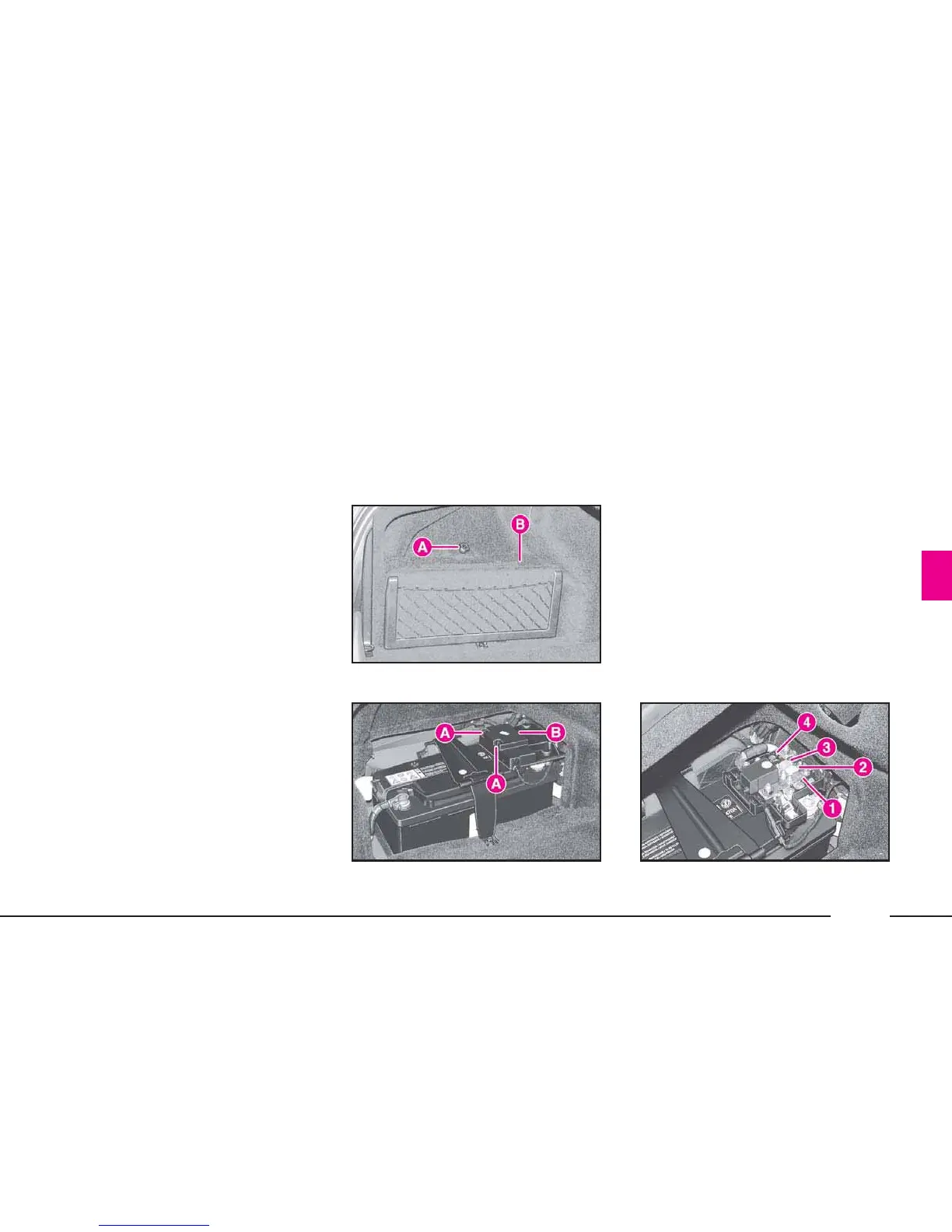

fig. 68
L0A0030b
fig. 69
L0A0031b
fig. 70
L0A0142b
