DIMENSIONS

fig. 7

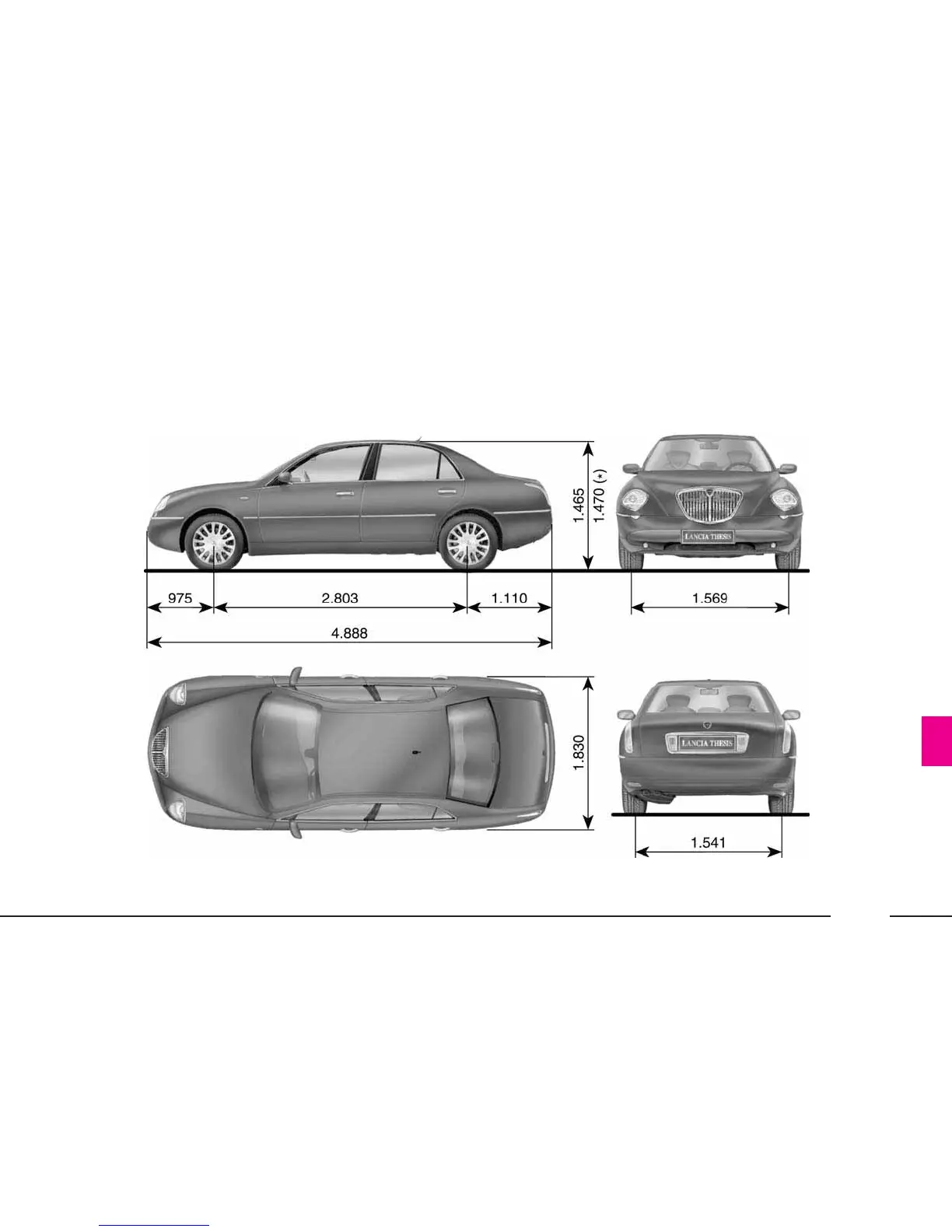

The sizes are in mm and refer to the car fitted with standard tyres.

Slight size changes with optional tyres. Height is intended for an unladen car.

Boot volume (as per VDA standards): 400 dm

3

L0A0171b

(*) = 3.0 V6 CAE and

3.2 V6 CAE versions
