BONNET

Open the bonnet only

when the car is station-

ary.

To open the bonnet:

1) Open the driver’s door.

2) Pull lever A (fig. 212) in the

direction shown by the arrow.

3) Lift lever B (fig. 213) and

release the bonnet from the safety

retainer.

4) Lift the bonnet.

IMPORTANT The bonnet is lifted

by two gas struts (fig. 214). Do not

tamper with the struts and follow

the bonnet in its movement.

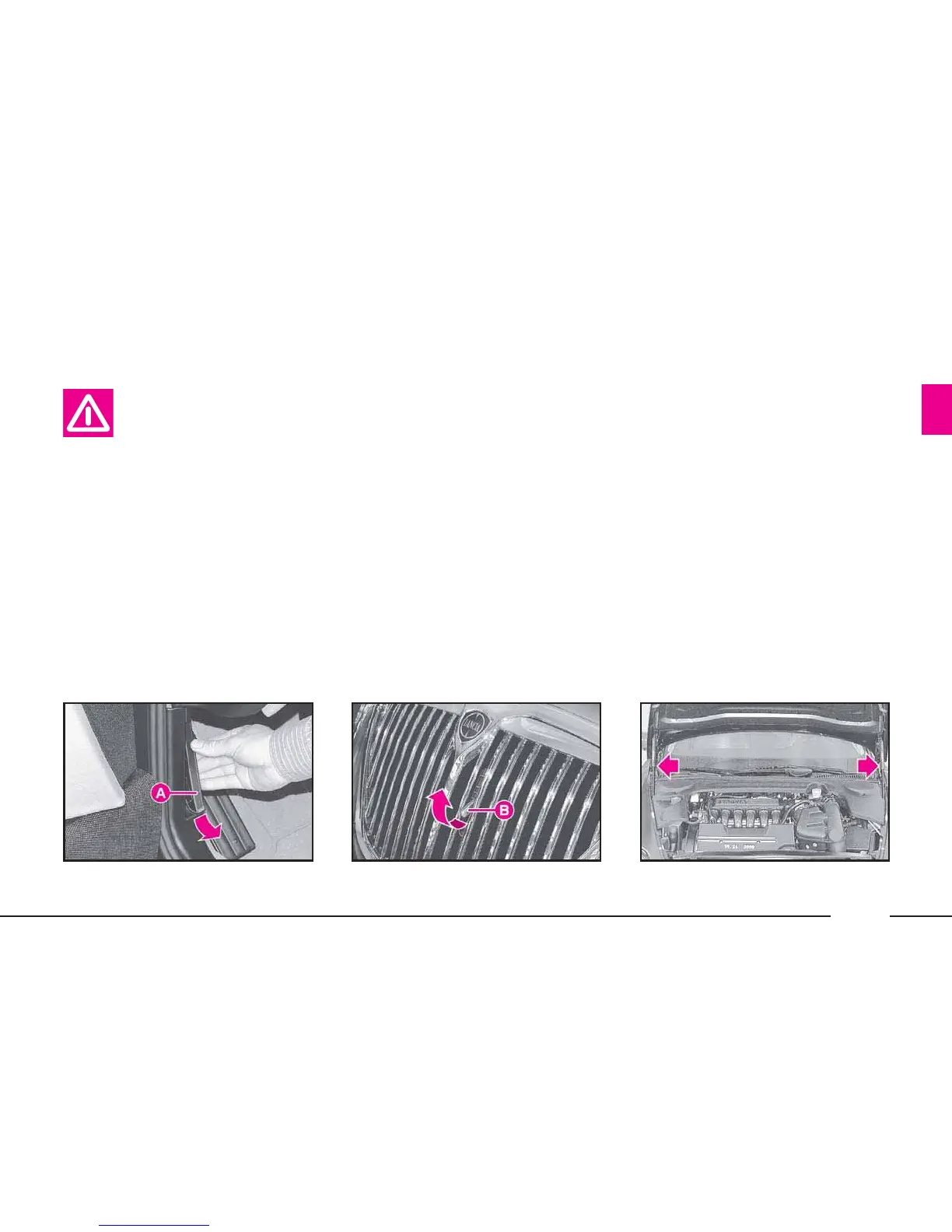

fig. 212

L0A0019b

fig. 213

L0A6023b

fig. 214

L0A0285b
