Lancia Thesis - Sensor Operating Range

210

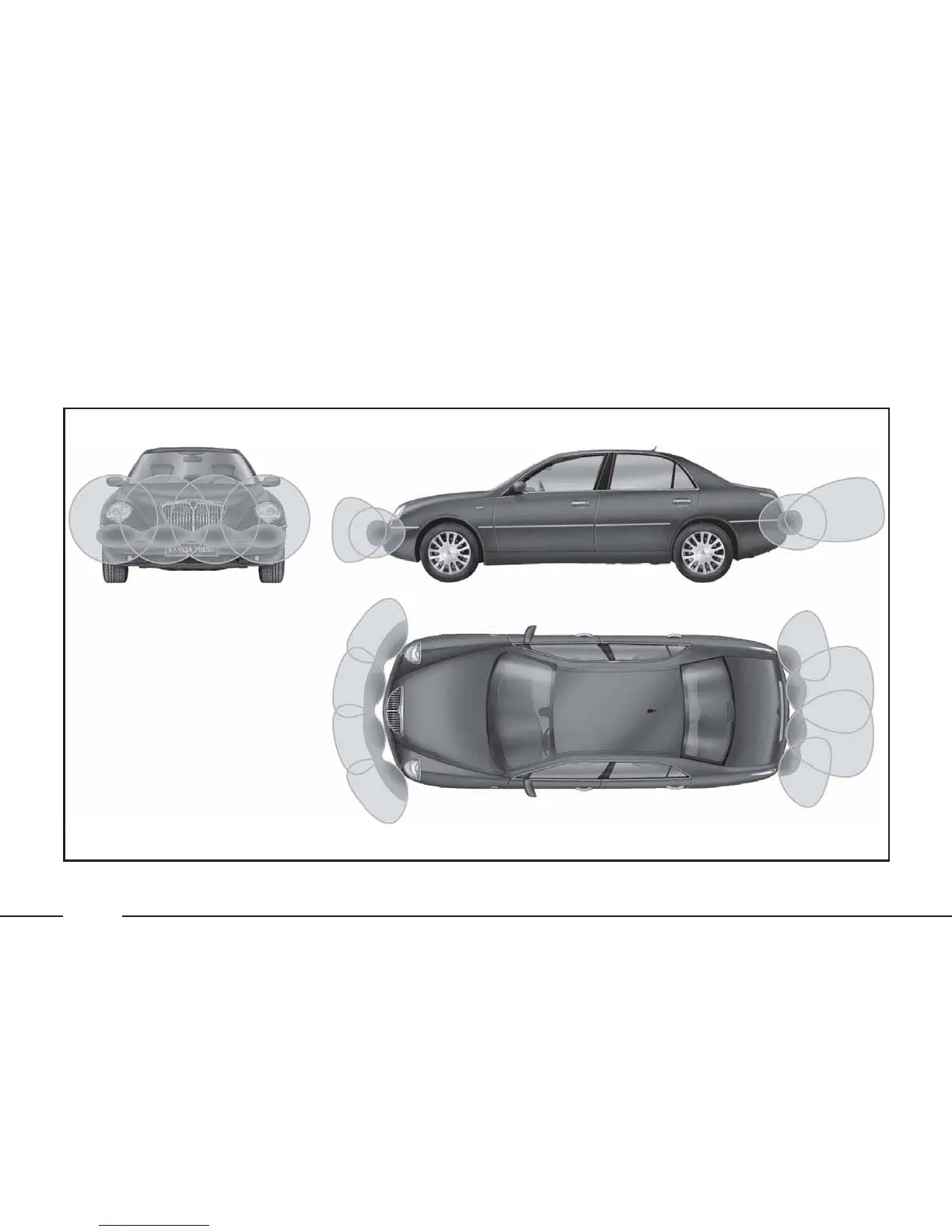

fig. 158
LOA6021b
Sensor operating range
The sensors allow the system to
monitor the car’s front and rear
parts.
Their position covers the middle
and side areas of the car’s front and
back (fig. 158).
Obstacles placed in the middle area
are detected at a distance of less
than approx. 0.9 m (front) and 1.50
m (rear).
