318

1) Engine oil

2) Brake fluid

3) Windscreen/rear window and

headlight washer fluid

4) Engine coolant

5) Power steering fluid

L0A0345b

L0A0341b

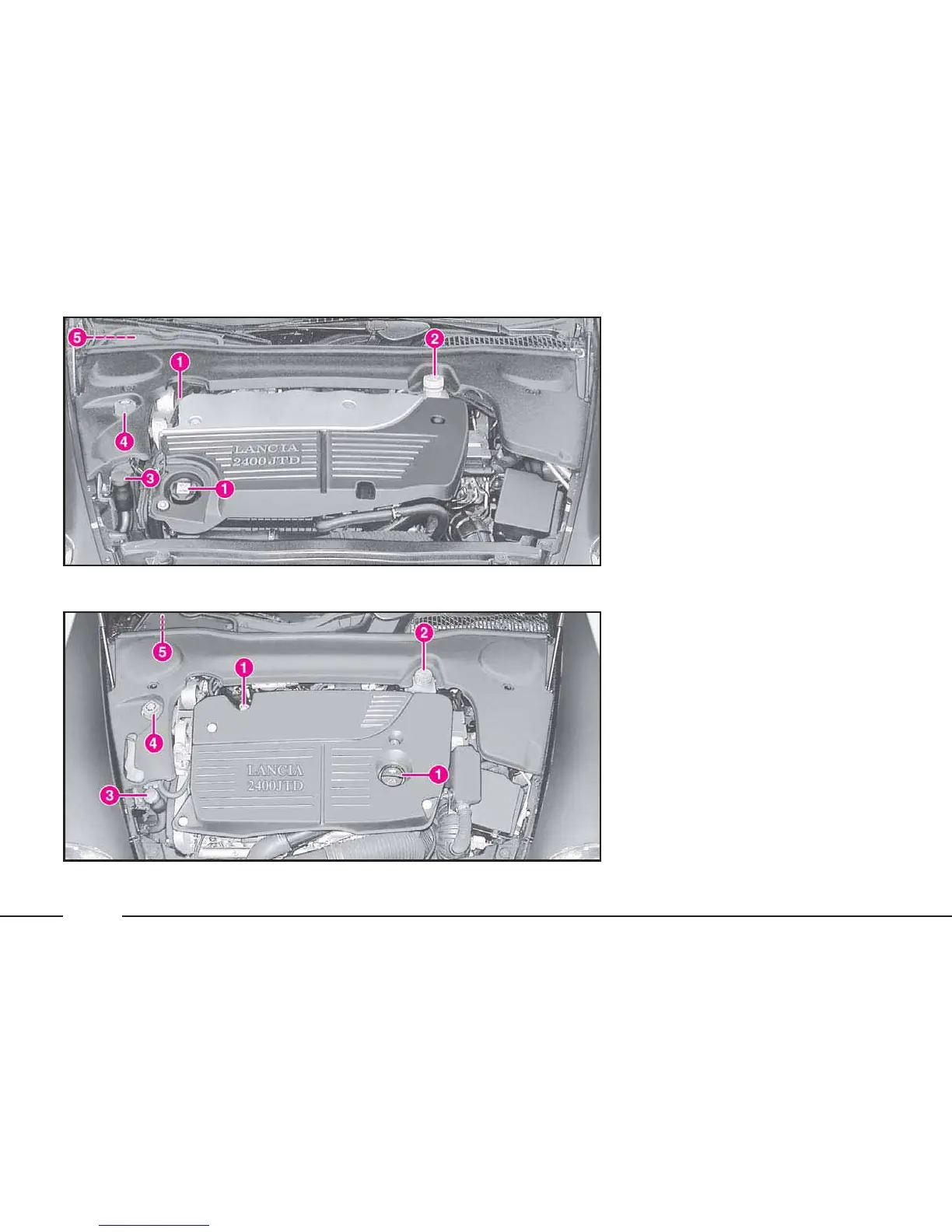

fig. 3 - 2.4 JTD version

fig. 4 - 2.4 JTD

20V - 2.4 JTD 20V CAE versions
