5. Align the bracket to the side of the
chassis and
make sure the
screw-holes are matched, and then
secure the bracket onto the chassis
with three provided M4X4L
screws.
6. Repeat Steps 2~5 to attach the bracket to the other side of the chassis.
7. Follow the instructions in
Installing the System Using Mounting Ear Brackets Only
to attach the
Mounting Ear Brackets.
N
ow, you shall install the slide rail
assemblies onto the rack.

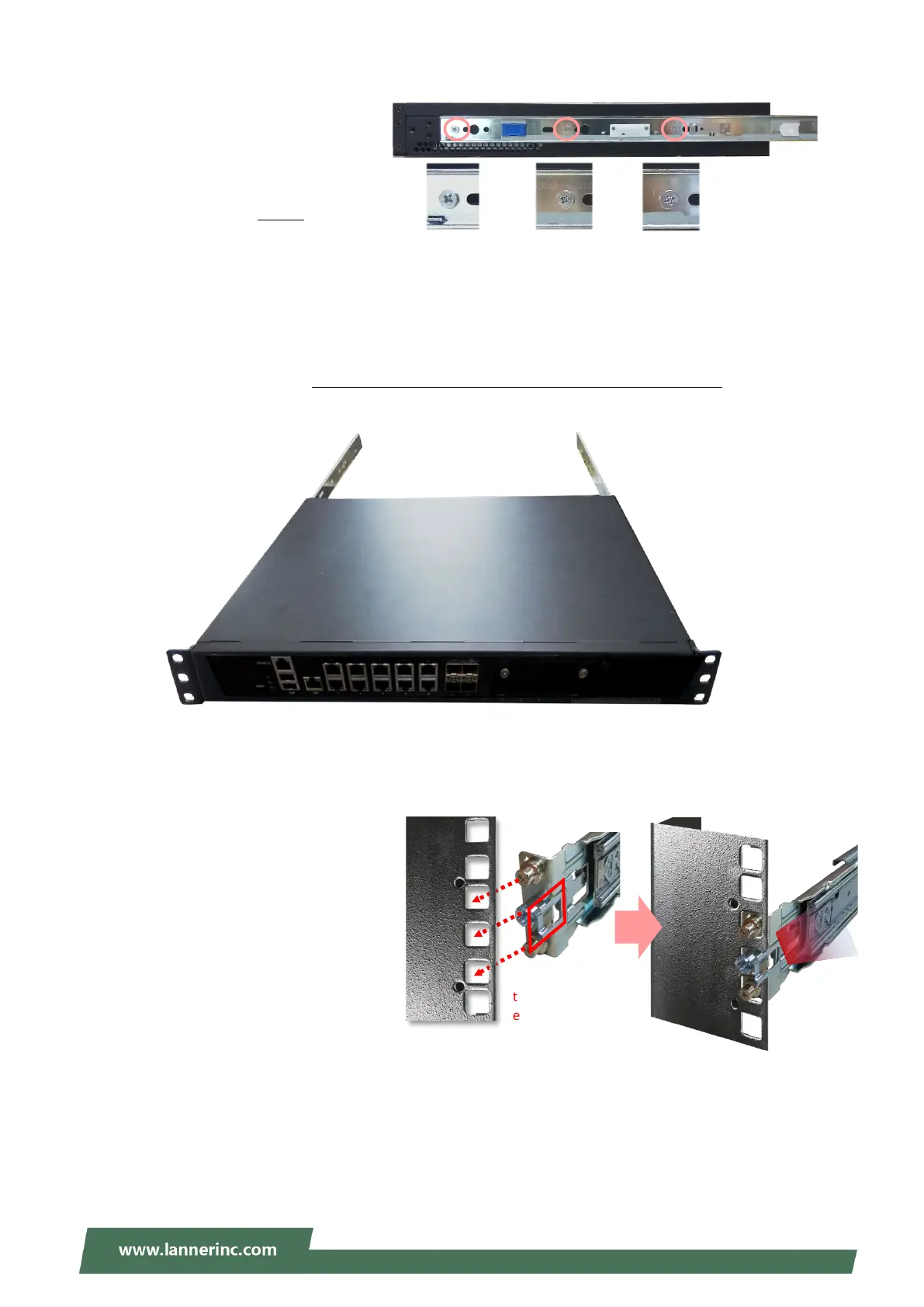

8. This slide-rail kit does NOT require
screw-fixing. Simply aim at three
available screw holes on the rack
front and snap the rail front into the
rack post
as shown in the image.
You should hear a
“click” sound
once it is firmly attached.
Align the screws with the holes indicated on the brackets and the
screw holes on the side of the chassis.
Left Rail Bracket
Right Mounting
Ear Bracket
Right Rail Bracket
Use this clamp
to fix the front
end of the rail
onto the post.
Click
Left Mounting
Ear Bracket
