9: Device Ports

SLC™ 8000 Advanced Console Manager User Guide 157

Device Status

The Devices > Device Status page displays the status of the SLC ports, USB ports and SD card

ports.

1. Click the Devices tab and select the Device Status option. The following page displays:

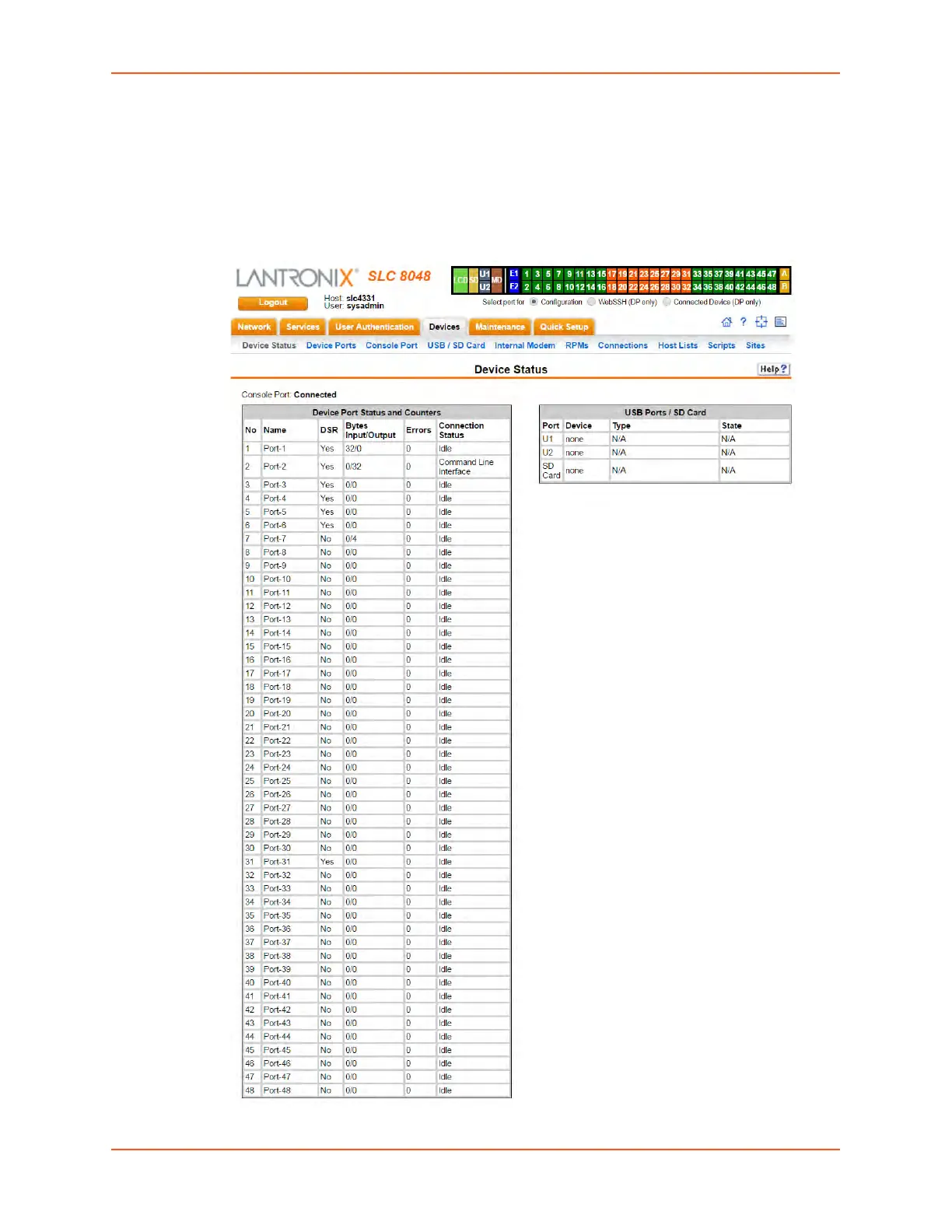

Figure 9-2 Devices > Device Status
