Appendix C: Adapters and Pinouts

SLC™ 8000 Advanced Console Manager User Guide 421

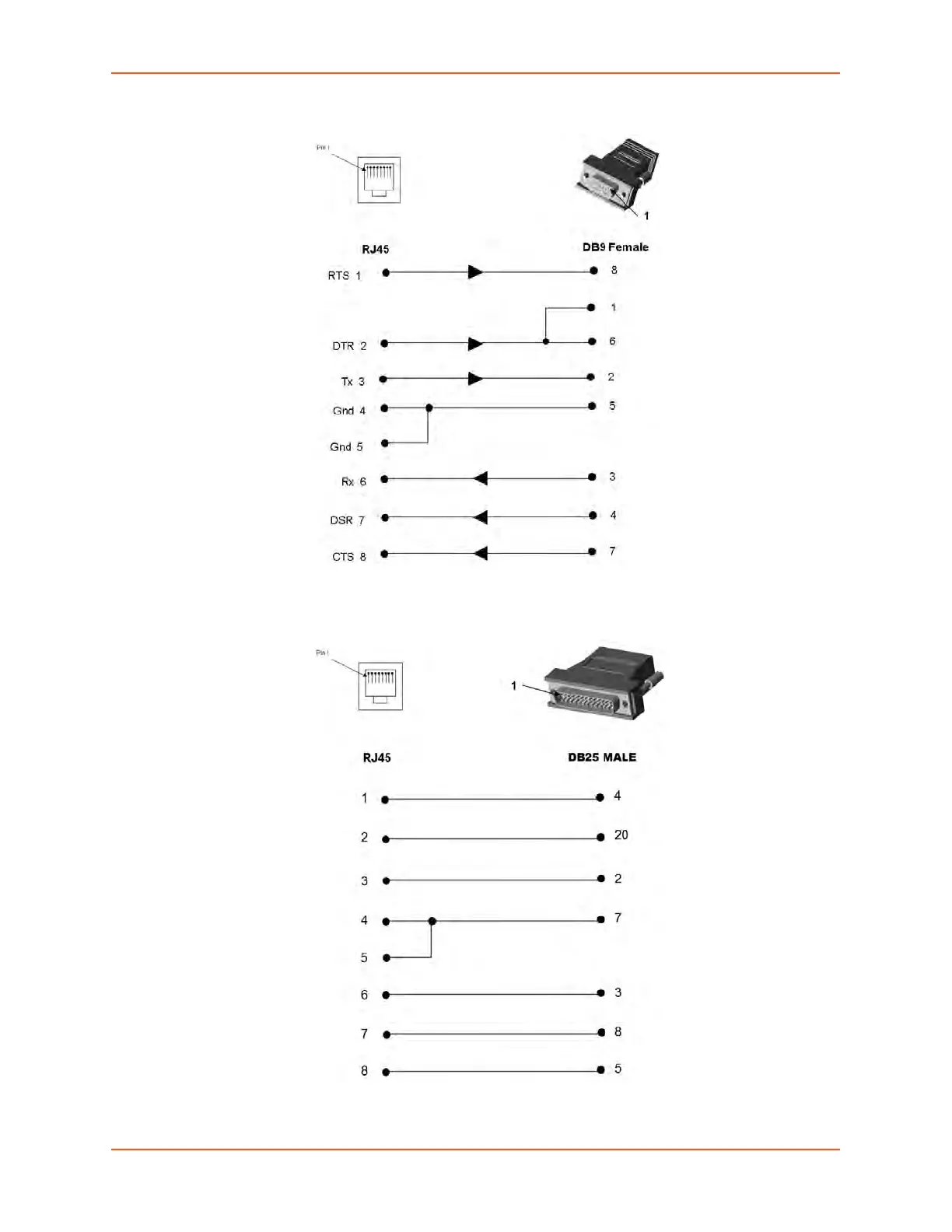

Figure C-4 RJ45 Receptacle to DB9F DCE Adapter for the SLC unit (PN 200.2070A)

Use PN 200.2070A adapter with a PC's serial port.

Figure C-5 RJ45 Receptacle to DB25M DTE Adapter (PN 200.2073)

Default Chapter2
