4.3. JTAG to MSPI Pass-through Interface
The download controller can also access the JTAG to MSPI pass-through circuit that allows the slave SPI Flash to be
erased, programmed, and read with Radiant Programmer.
4.4. SPI Flash Device Selection in Programmer
The Flash device on this board is a Macronix MX25L12833F.

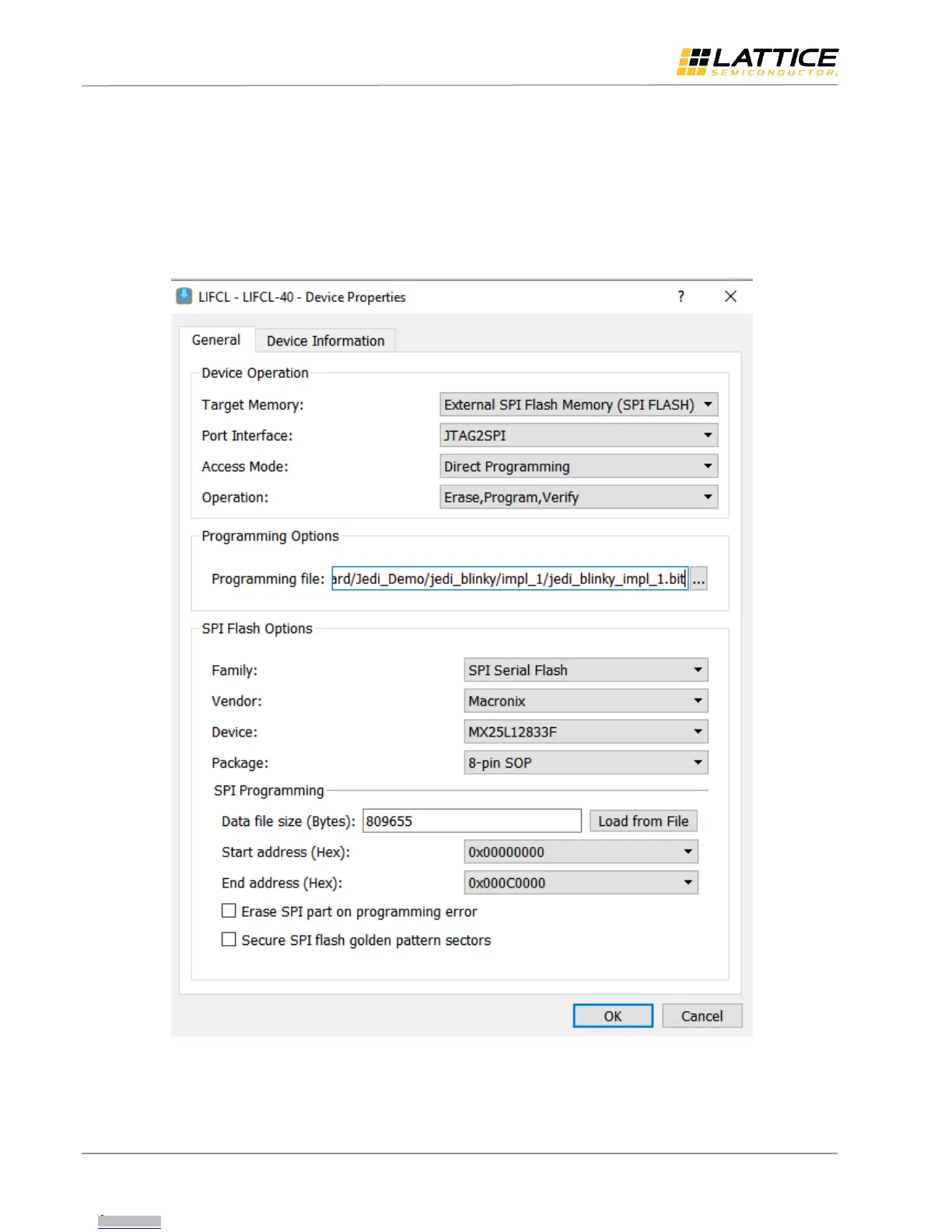

Figure 4.2. SPI Flash Operation Dialog
You may proceed with the Flash device programming by following the procedure in CrossLink-NX sysCONFIG Usage
Guide (FPGA-TN-02099).
