4 Operating and functional controls
On the following pages the ECO GOLD control head, the control panel and the heating/cooling thermostat device types are
presented.

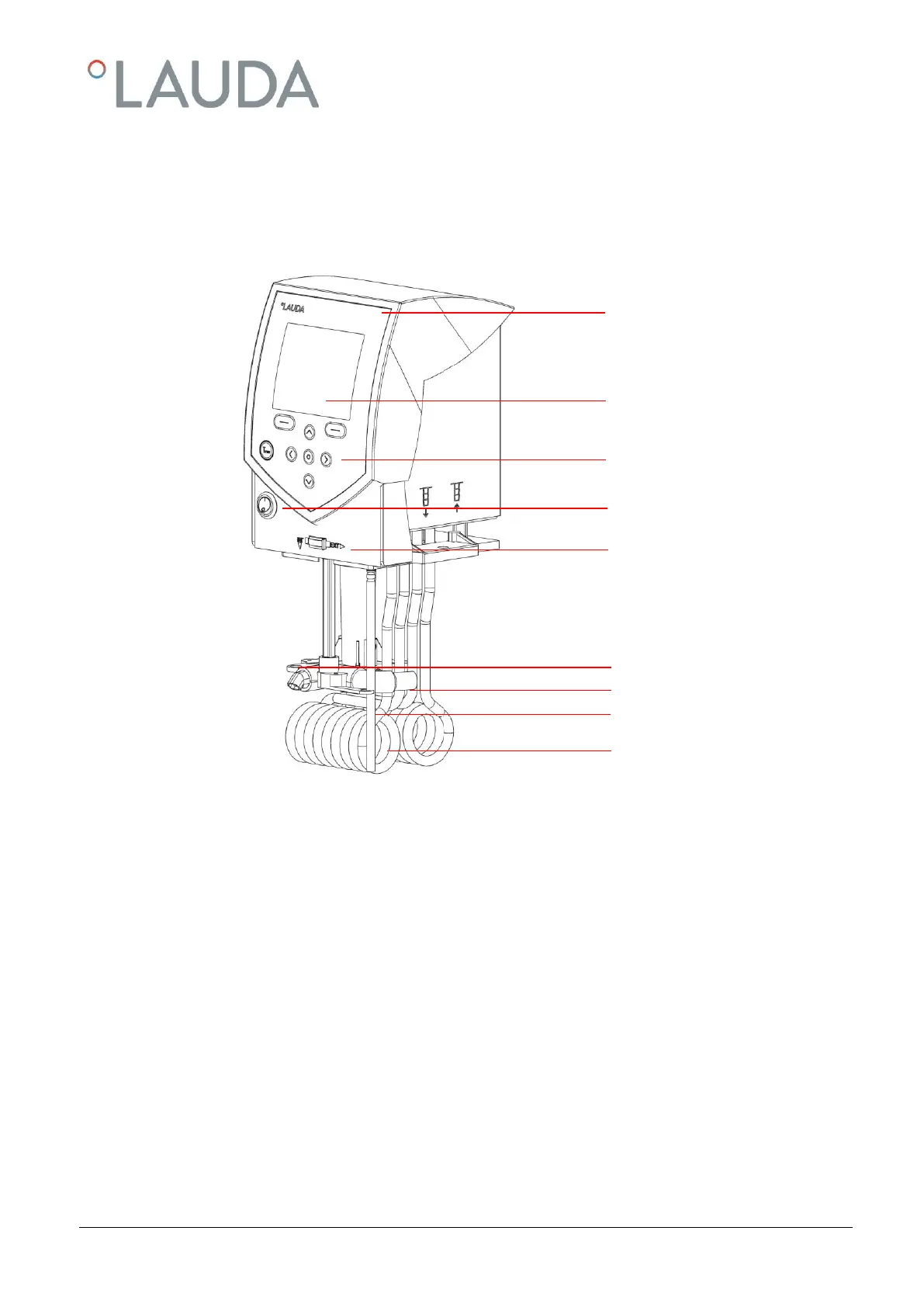

Control Head ECO GOLD (can be used as immersion thermostat with screw clamp)
1 Light sensor for automatic control of display brightness
2 Color TFT display
3 Control panel (refer to following page)
4 Mains switch
5 Selector switch for dividing up the external and internal pump flow
6 Pump output for internal bath circulation
7 Pump output for bath circulation or connection to the pump connection set
8 Pt100 temperature sensor
9 Heater
