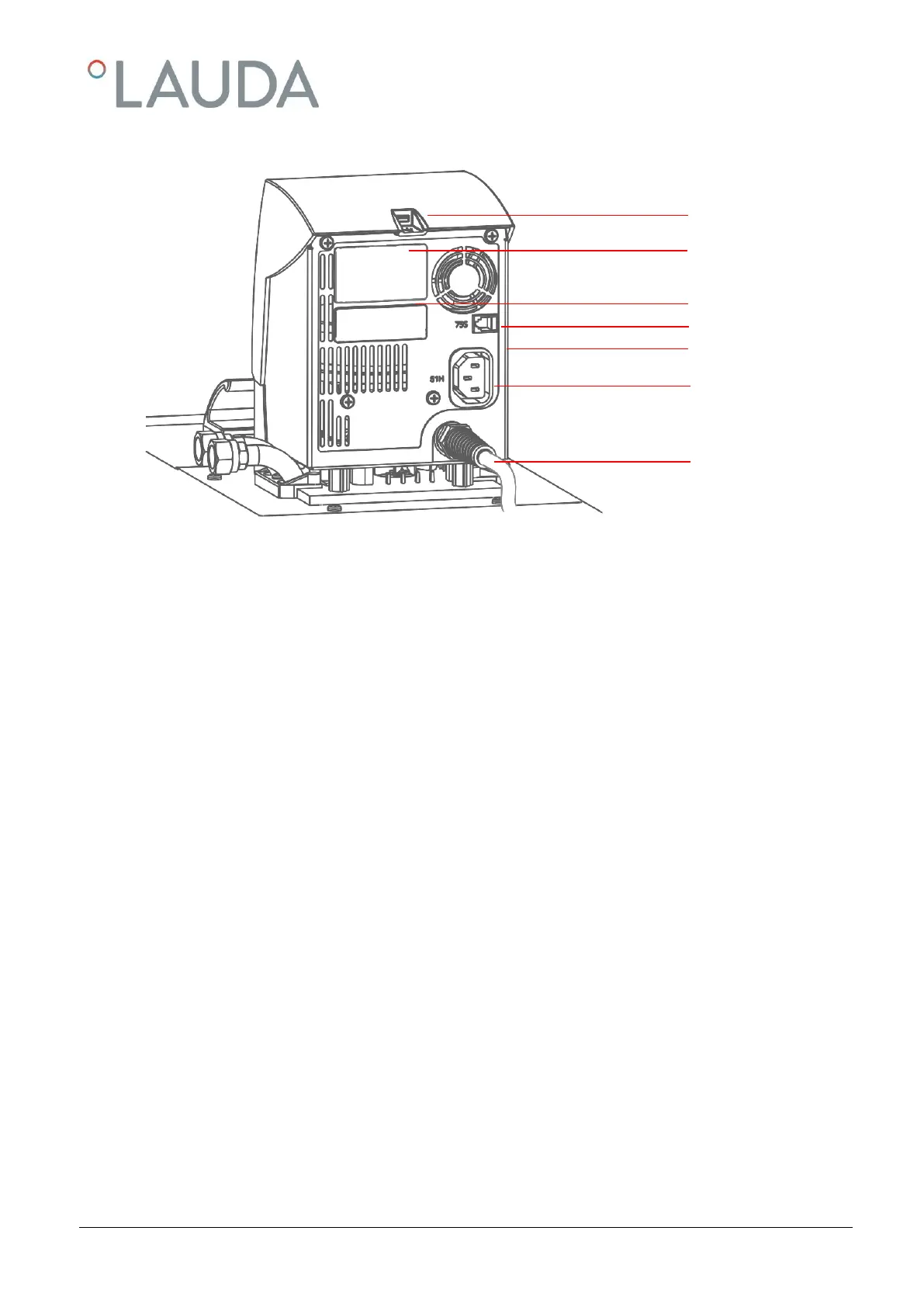

Rear view of Control Head ECO GOLD
1 USB interface
2 Upper module receptacle approx. 51 mm x 27 mm for analogue, RS 232/485 module, Profibus module
and contact modules.
3 Lower module receptacle approx. 51 mm x17 mm for Pt100/LiBus module
4 Connection 75S for control cable of cooling underpart for RE 1050 G
5 Rating label
6 Connection socket 51H for power supply between the control head and cooling underpart
7 Mains connecting lead
