D45 System
Description
Colour 5.6” handsfree indoor handset
D45 System indoor handsfree video handset with 5.6” analogue LCD backlit display.
Complete door entry functions with alarms management. International standard SOS
pushbutton and keyboard for intercom function and programming device. Direct call to
switchboard function. 12 ring tones selectable for different call types. Surge protection.
Wall mount installation.
Technical data
LCD display resolution: 320 x 234 pixels
Power supply : 30 Vdc
Stand by absorption: ≤ 10 mA @ 30 V
Max. operating absorption: ≤ 140 mA @ 30 V
Operating temperature: (-10)-(+40)°C
Dimensional data

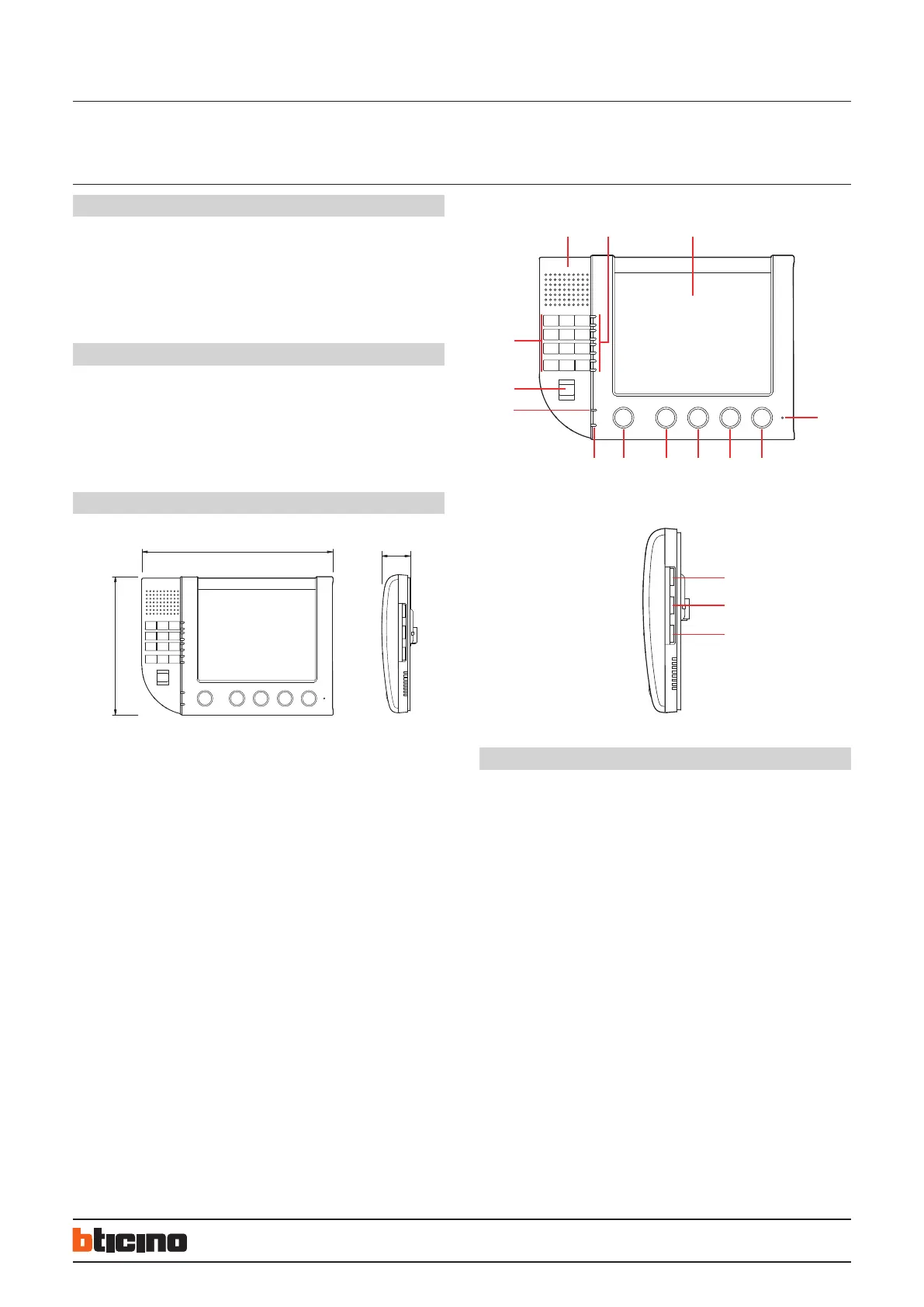

Legend
1. Loudspeaker
2. 1 to 8 defence areas status LEDs
3. 5.6” LCD backlit display
4. Microphone
5. Door lock activation key
6. Monitoring key
7. Call to the switchboard key
8. Audio connection activation/deactivation key
9. SOS pushbutton
10. Information status LED
11. Connection status LED
12. Shortcut key
13. Numerical keyboard
14. Ring volume control knob
15. Display brightness regulation knob
16. Display colour regulation knob
Front view
Side view
BT00468-b-EN 15/05/2013
