LEGRAND D45 SYSTEM User Manual

N N N CF4 CF5 CF6 CF7
N N N
FF
min
FF
min
#I #I
0 1 2 0 1
CF8 CF9 CF10CF11 TYP ASR M LE
FF
max
FF
max
TYP ASR M LE
0 2 1 0 0 0

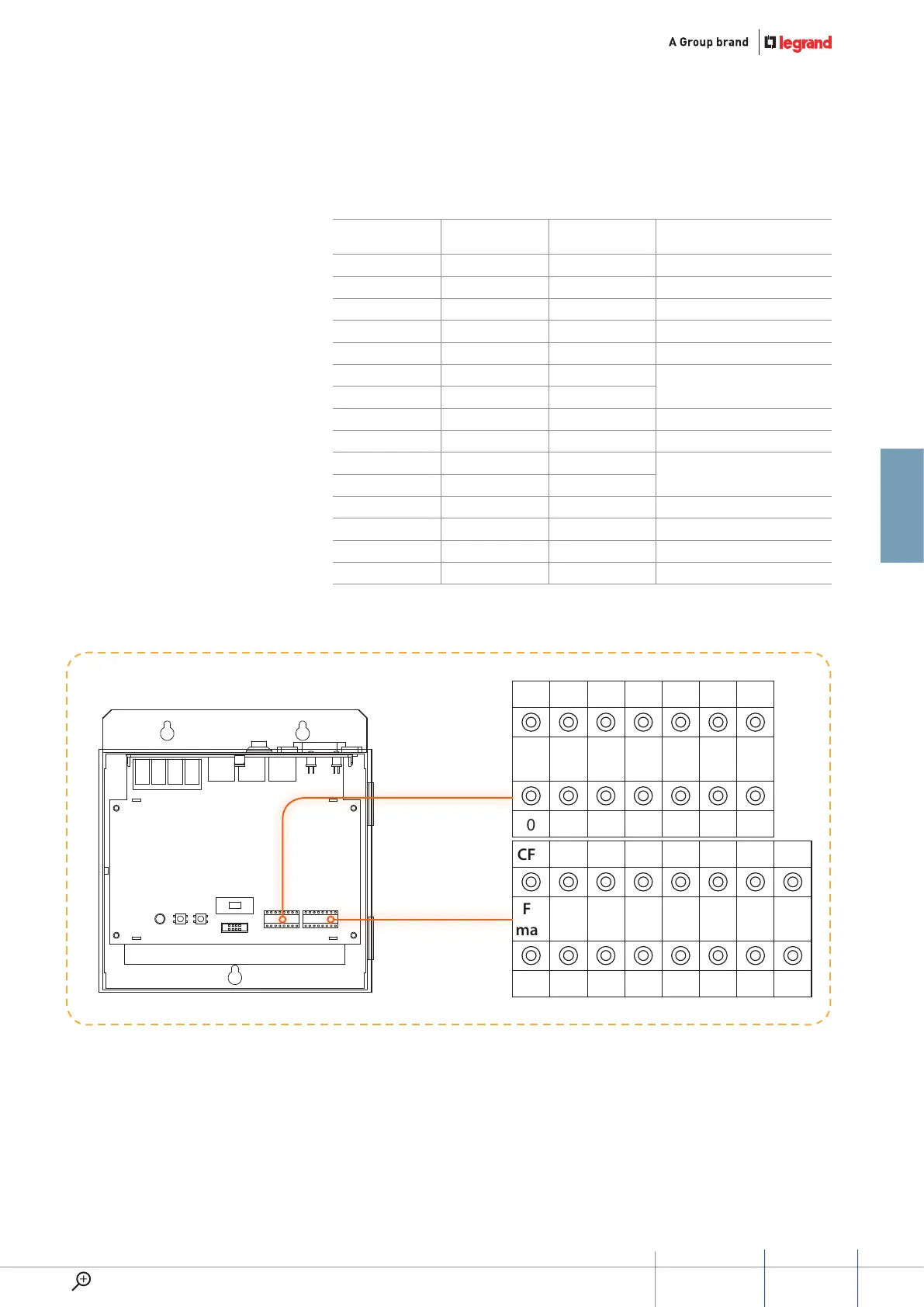

Example (A):
This riser has 20 floors, and each floor
has 4 handsets. This power supply
manages 1-2 floors. If necessary
enable the smart power function and
power management function, the
power supply address is 12, the max
current of the alarm sensor is 300 mA.
System configuration Mode 1 is used.
The power supply configuration
should be as follows:
poSition Mode 1
Value for
configurator
reMarkS
CF1 N 0
CF2 N 1
CF3 N 2
CF4 FF Min 0
CF5 FF Min 1
CF6 #II
Default is 4 apartments.
0 means 4 apartments0.
CF7 #II
CF8 FF Max 0
CF9 FF Max 2
CF10 CF10
For Mode 1 and Mode 2, CF10 and CF11
do not apply
CF11 CF11
CF12 Type 1
CF13 ASR 0
CF14 M 0
CF15 LE 0
A
51
GUIDED45 SyStEm
WWW.LEGRAND.COM
