6.4.1 Instrument Status

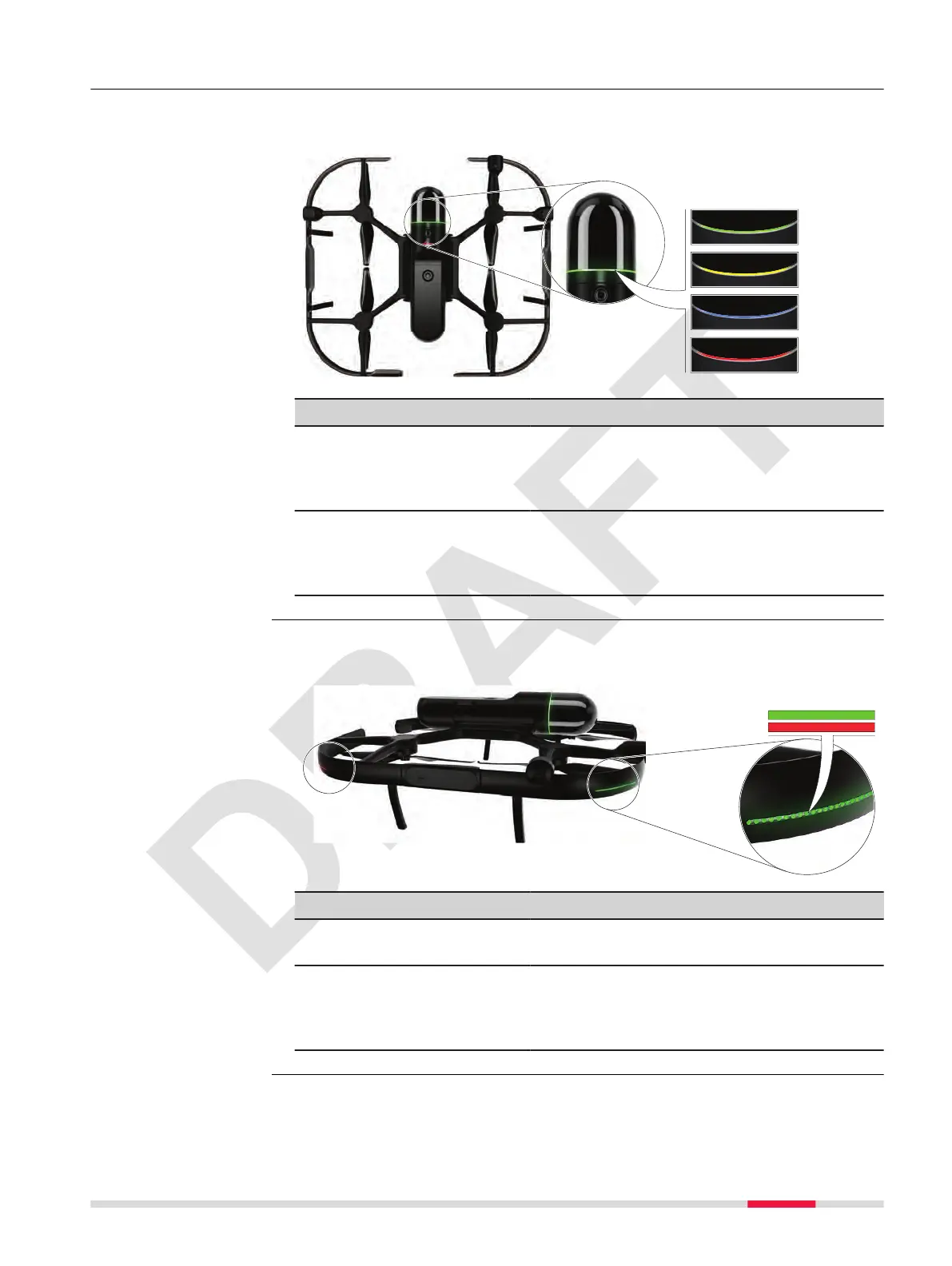

The ring-shaped LED lights up in different colours and lighting intervals to
show the operation states of the BLK2FLY.
Description Details
Colours
•
Green
•
Yellow
•
Red
•
Blue
Lighting intervals
•
Continuous/static
•
Fade in/fade out
•
Blinking
•
Pulsating
The wing LEDs, position lights, light up to show the operation states of the
BLK2FLY and indicate the orientation of the UAV in air.
Description Details
Colours
•
Green: Front LED
•
Red: Rear LED
Lighting intervals
•
Continuous/static
•
Fade in/fade out
•
Blinking
•
Pulsating
LiDAR light guide
Wing light guide
