CS20, Description of the System
18

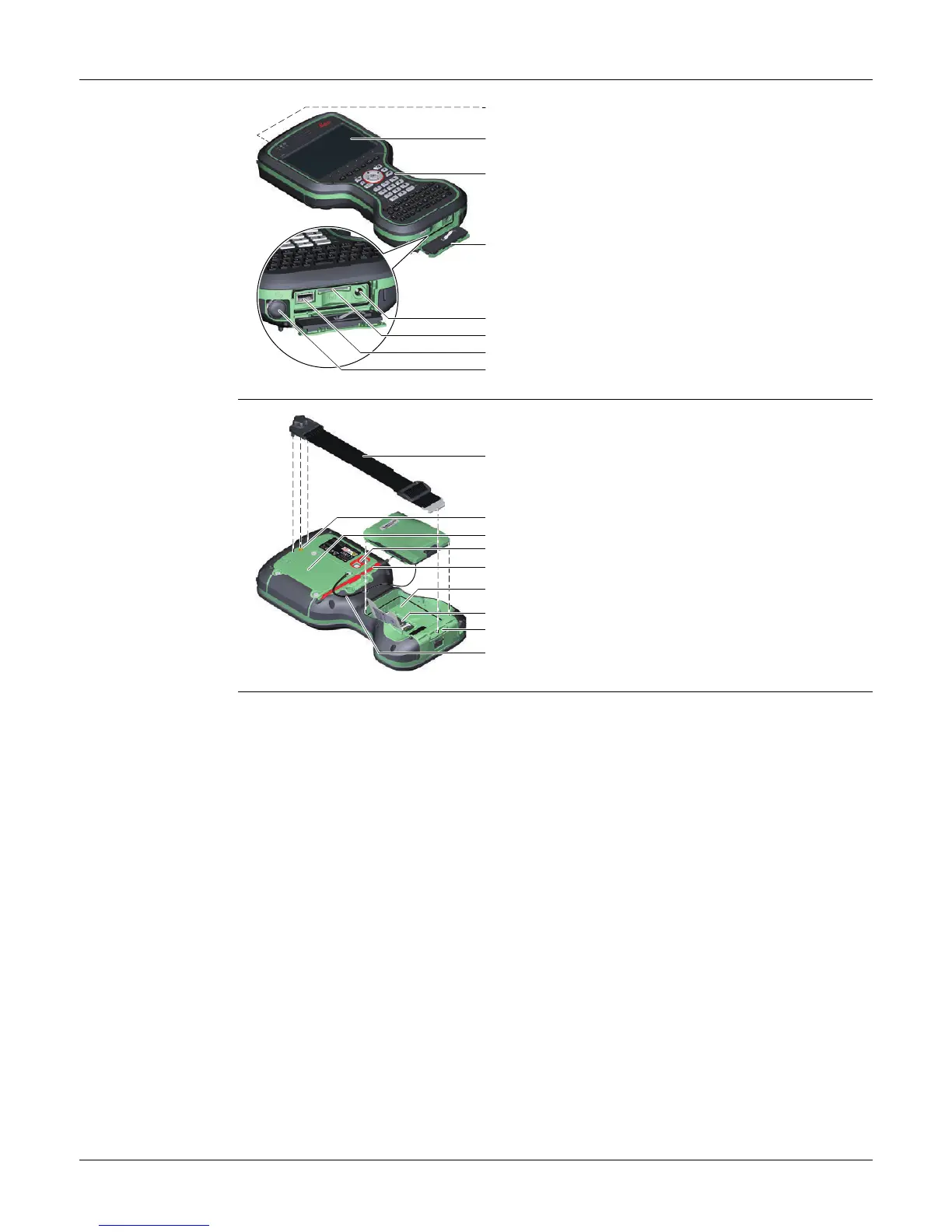

2.4 CS Components
Upside of CS20
Underside of CS20
a) DISTO with camera
b) Screen
c) Keyboard
d) Connector cover
e) Power socket
f) SD card slot
g) USB A host port
h) LEMO port (USB and serial)
008471_001
a
b
c
e
f
d
g
h
a) Hand strap
b) Thread for screwing on hand
strap or utility hook
c) Expansion cover
d) Digital camera with flash
e) Stylus
f) Battery compartment
g) SIM card slot under the battery
h) Socket for fastening clip of the
hand strap
i) Tether for the stylus
008472_001
a
b
c
h
e
f
d
g
i

Leica CS20 Specifications

General

Type	Field Controller
Operating System	Microsoft Windows Embedded Handheld 6.5
Memory	1 GB RAM
Connectivity	Bluetooth
Camera	5 MP, autofocus
Interfaces	USB
GNSS	GPS/GLONASS
Expansion Slot	microSD card slot
Protection Rating	IP67
Operating Temperature	-30 °C to +60 °C
Processor	1.0 GHz dual-core ARM Cortex-A9
