Leica CS20 User Manual

CS20, Operation
23
Detaching the Field
Controller from a
Pole Step-by-step

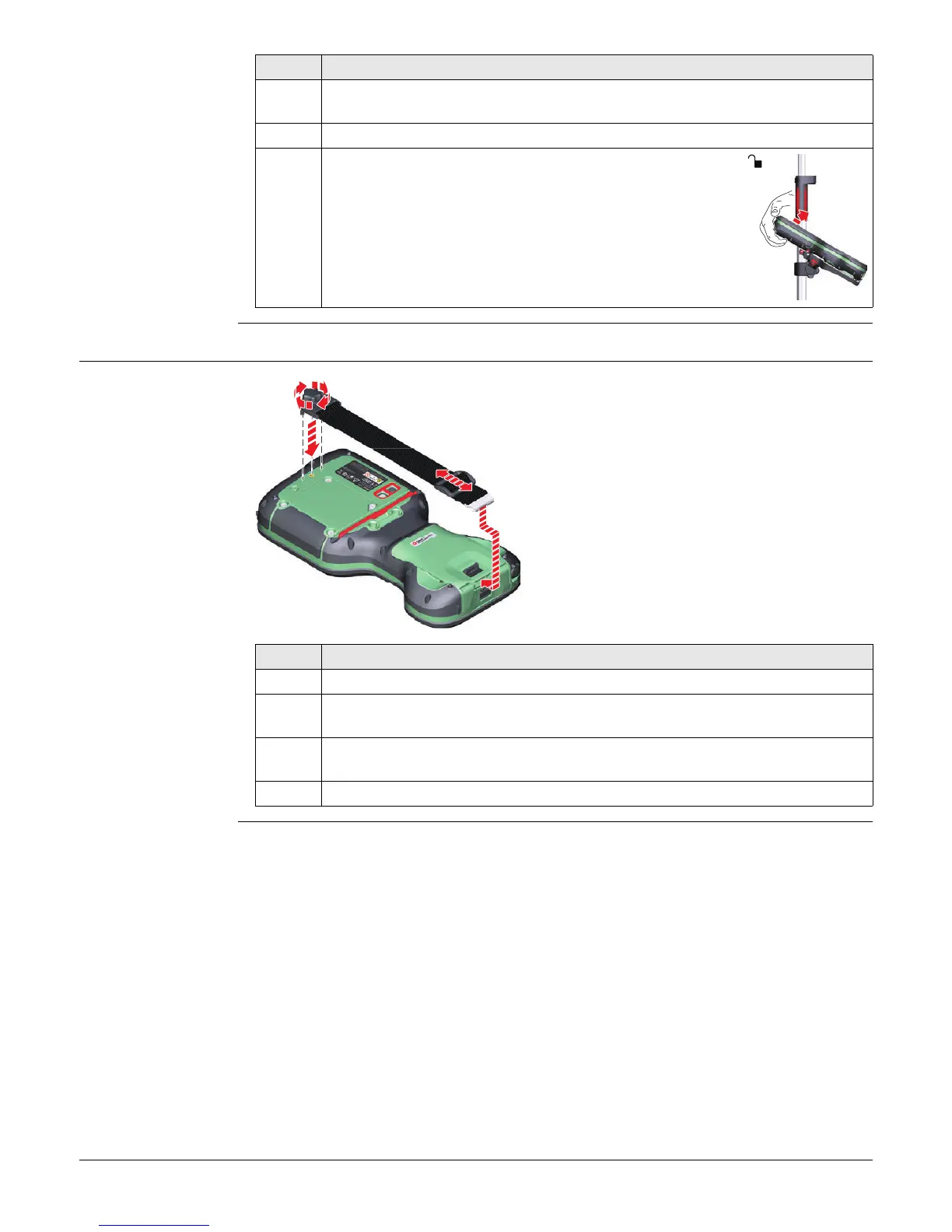

4.1.2 Fixing a Hand Strap to the CS
Fixing the Hand
Strap (GHT67) Step-
by-step
Step Description
1. Unlock the locking pin by pushing the locking pin to the left of the mounting
plate.
2. Place your palm over the top of the field controller.
3. While in this position, lift the top of the field controller
from the holder.
2
3
1
008551_001
Step Description

Turn over the field controller.
1. Take the end of the hand strap and clip it to the socket at the bottom of the
field controller.
2. Place the screw of the main hook into the thread at the top of the field
controller and fasten it.
3. Adjust the length of the hand strap.
008501_001
2b
1
3
2a

Leica CS20 Specifications

General

Type	Field Controller
Operating System	Microsoft Windows Embedded Handheld 6.5
Memory	1 GB RAM
Connectivity	Bluetooth
Camera	5 MP, autofocus
Interfaces	USB
GNSS	GPS/GLONASS
Expansion Slot	microSD card slot
Protection Rating	IP67
Operating Temperature	-30 °C to +60 °C
Processor	1.0 GHz dual-core ARM Cortex-A9
