CS20, Operation
30

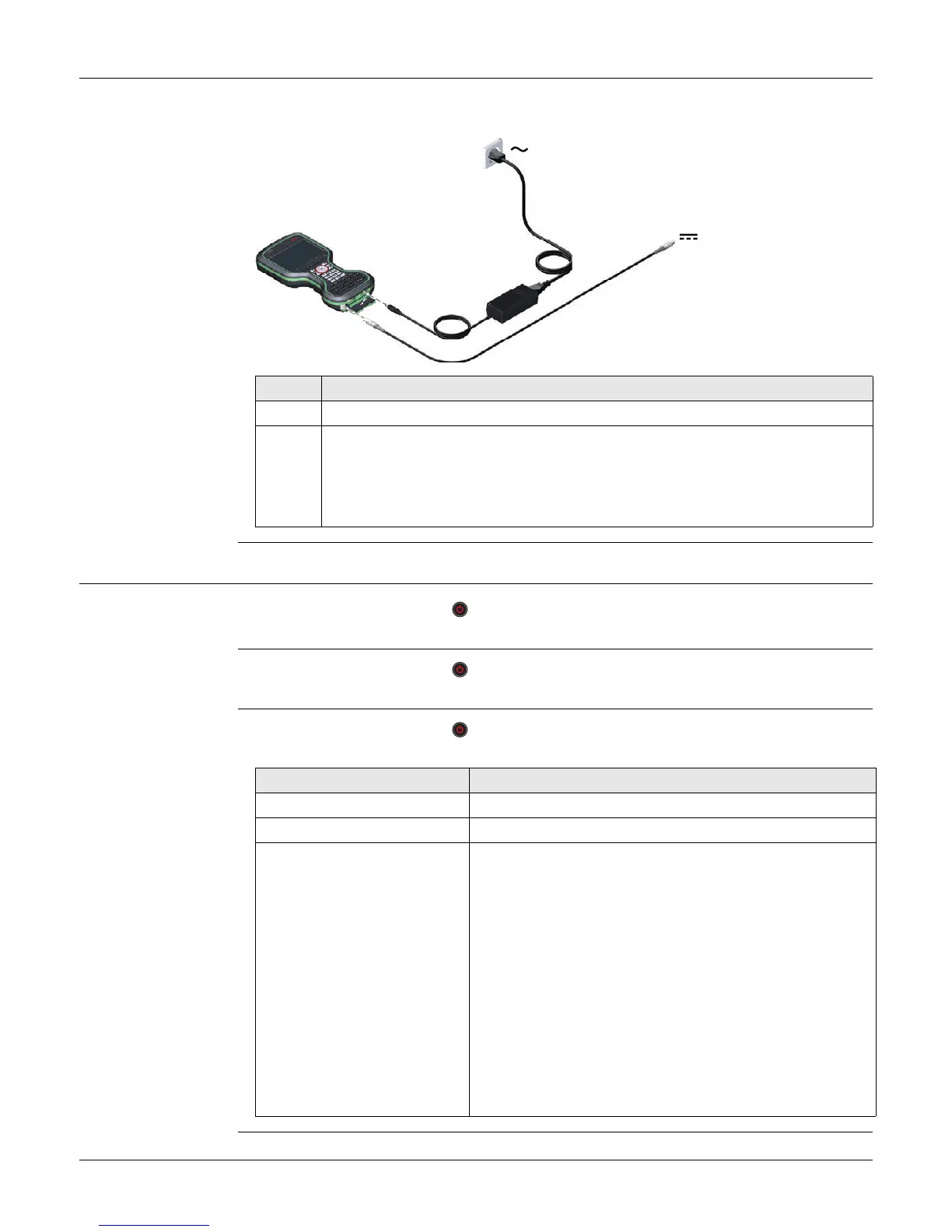

4.2.3 Charging the Battery
Charge the Battery
inside the CS20:
Step-by-step
Please note: Charging functionality is not available for
CS20 field controller (823 164).
4.3 Power Functions
Turning field
controller on
Press and hold power key ( ) for 2 s.
The field controller must have a power supply.
Turning field
controller off
Press and hold power key ( ) for 5 s.
The field controller must be on.
Menu “Power Down
Options”
Press and hold power key ( ) for 2 s to open Power Down Options menu.
The field controller must be on.
Step Description
1. Connect the GEV276 power adapter or GEV219 with the field controller.
2. The power LED on the CS field controller switches on. While charging, the
power LED flashes. When the field controller’s battery is fully charged the
Power LED is green.
Refer to LED Indicators for detailed information about the power
LED.
Option Description
Power down and turn off To turn the field controller off.
Put into stand-by To put the field controller into stand-by mode.
Reset hardware Perform one of the following options:
• Restart hardware
The device powers down and restarts.
• Reset Windows EC7
The device powers down and restarts. Any Bluetooth
pairings are deleted.
• Reset Leica Captivate
The device powers down and restarts. All working
styles, dial-up lists and server lists are deleted. Jobs,
code lists, coordinate systems etc. are not deleted.
• Reset Windows EC7 and Leica Captivate
The device powers down and restarts. Bluetooth
pairings, working styles, dial-up lists and server lists
are deleted.
