CS20, Operation
32
4.4.2 Working with a USB Memory Stick
Insert a USB Stick
Step-by-step
4.5 Using the Digital Camera
Overview The field controller is equipped with a digital camera and a flash light, both located at
the underside. Mounting a hand strap or pole holder plate does not limit the camera
view.
You can start the camera application from within Leica Captivate.
Taking a Picture
Step-by-step
4.6 Using the Camera Flash Light as Torch
Using the Flash
Light as Torch
You can use the flash light of the camera as torch.
To put the flash light on/off, hold and press .
Step Description

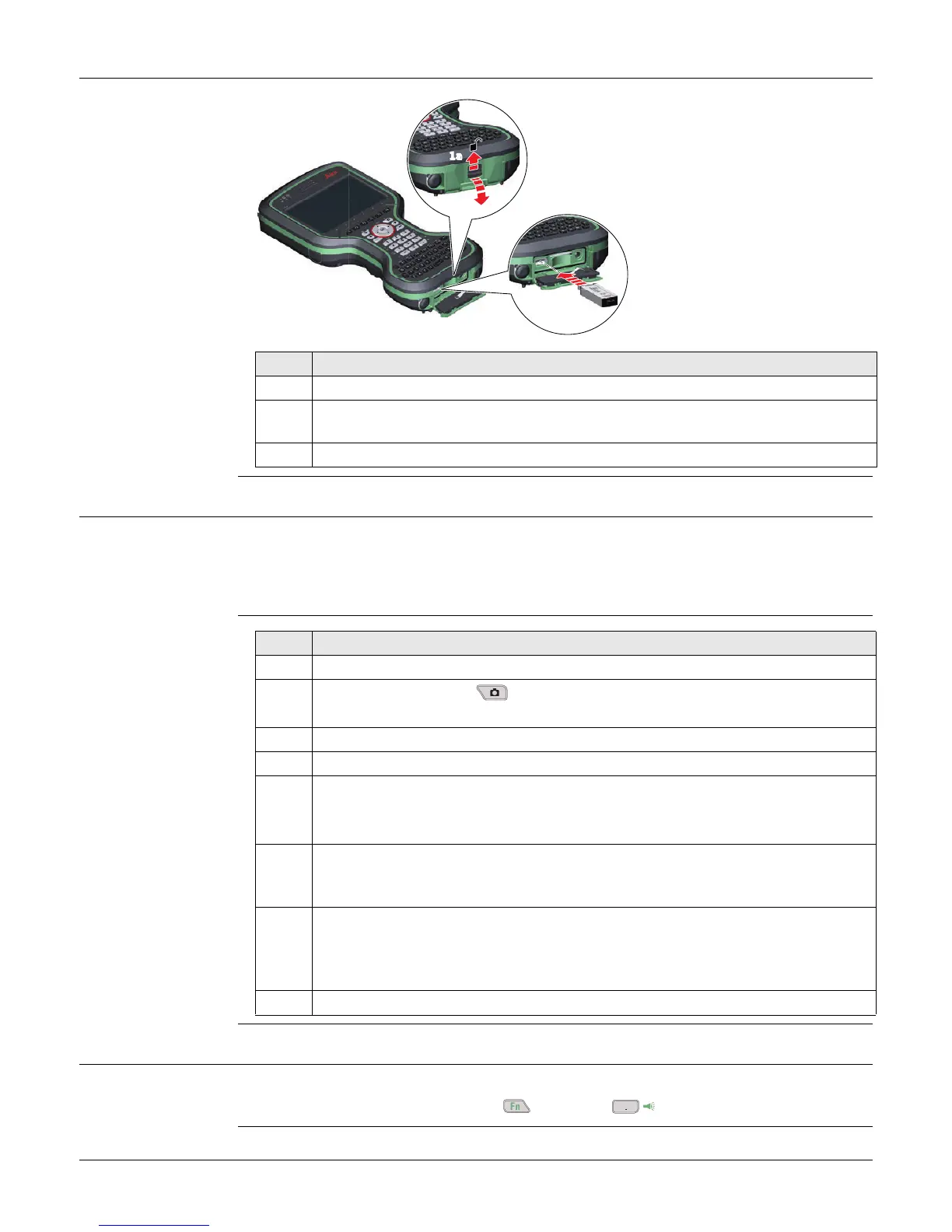

The USB stick can be inserted into a slot behind the connector cover.
1. Push the slide fastener of the connector cover in the direction of the arrow
with the open-lock symbol. Open the connector cover.
2. Insert the USB stick into the USB A host port.
008504_001
Step Description
To be able to start the camera application, Leica Captivate has to be open.
1.
Press the Camera key .
The screen Capture Image is displayed.
2. Aim the camera to the desired target.
3. Check the view at the display.
4. Press the OK key or click Capture to take a picture.
The picture is displayed in the
Image Viewer
.
Capture changes to Store.
5. Press OK again or click Store to store the picture.
An info screen is displayed where you can choose to save the picture with a
link to a point, line or area.
6. Press F2 or F3 to store the picture with a link. Follow the instructions on the
screen.
Press F4 to store the picture without a link.
Press F6 to return to the Image Viewer without storing the picture.
After storing the picture, the
Capture Image
screen is displayed again.
