CS20, Operation
24

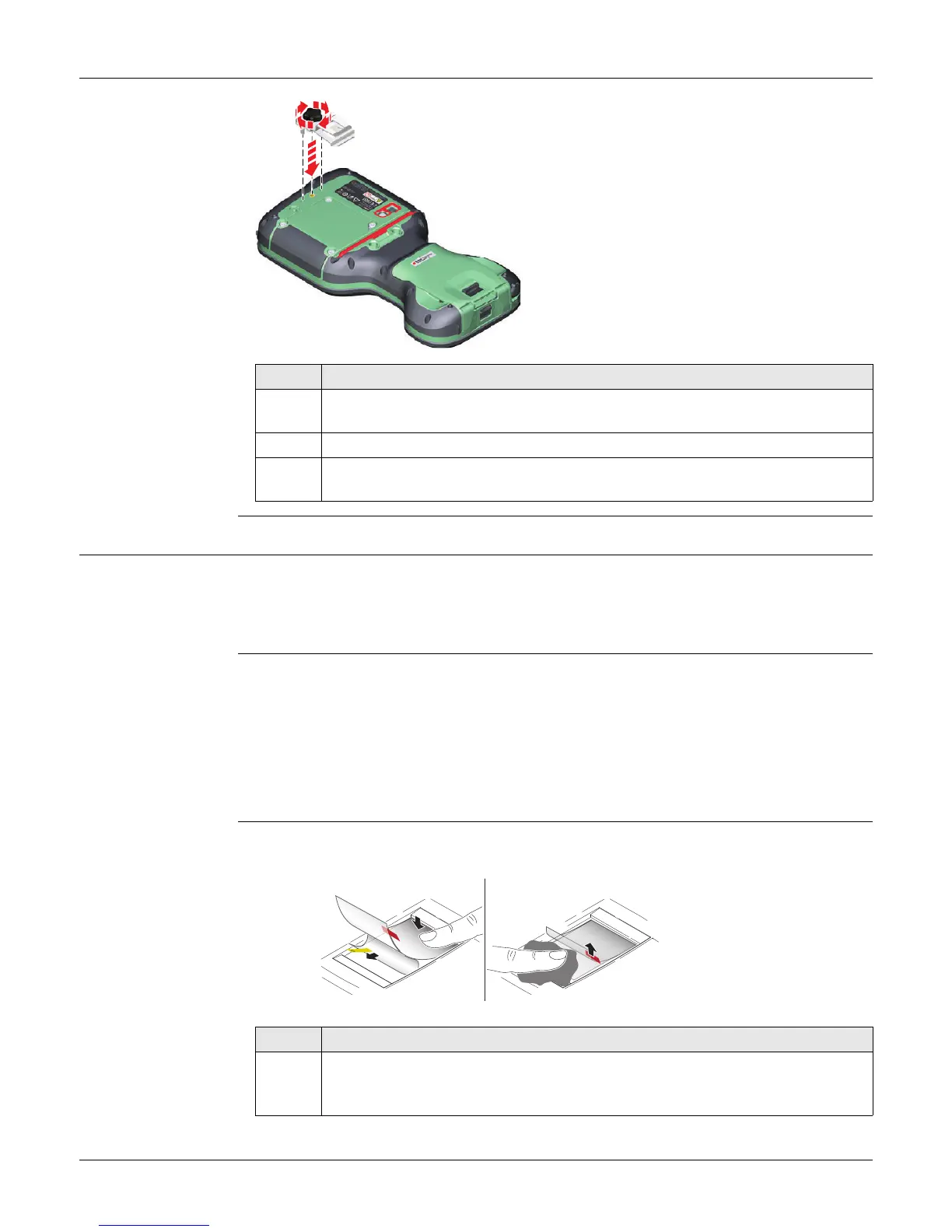

4.1.3 Fixing the Utility Hook to the CS
Fixing the Utility
Hook (GHT68) Step-
by-step
4.1.4 Replacing the Display Foil on the CS
On delivery, the display of the CS is covered by a foil to protect the display against
scratches and dirt and to guarantee a trouble-free function of the touchscreen in
extreme and humid weather conditions. We strongly recommend to use this display
foil and to replace it, if necessary.
Preparation • Remove the old display foil.
• Ensure that the display is free of dust and grease.
• Use the provided microfibre cloth to clean the display.
• Look for a dust free and dry atmosphere surrounding while fixing the display foil.
The recommended conditions are:
Fixing the display
foil step-by-step
The display foil lies between two thin carrier foils. The display foil has a silver-coloured
sticker to peel away the carrier foil from the actual display foil.
Step Description
If the hand strap is already attached to field controller, you need to detach
it before you can fix the utility hook.
Turn over the field controller.
1. Place the screw of the utility hook into the thread at the top of the field
controller and fasten it.
008498_001
1b
1a
Temperature: approx. 21°C
Humidity: < 55%
Step Description
1. Touch the yellow-coloured sticker with two fingers and pull it slowly
upwards. The carrier foil is peeling away.
Do not peel the carrier foil more than 2 cm - 3 cm away.
004510_001
1
2
3
4
