CS20, Operation
22
4Operation
4.1 Equipment Setup

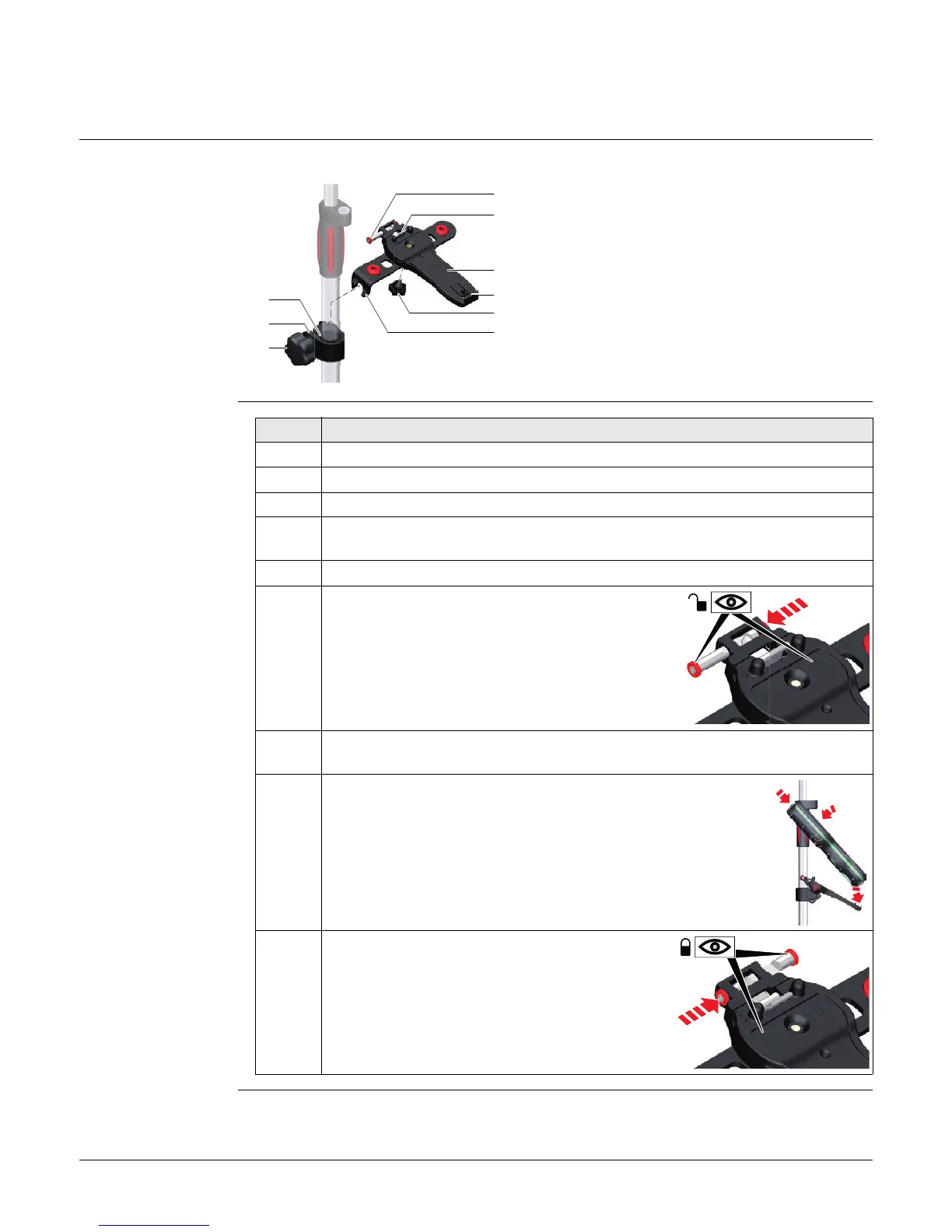

4.1.1 Fixing the Field Controller to a Holder and Pole
Components of the
GHT66 Holder
The GHT66 holder consists of the following components:
Fixing the Field
Controller and
GHT66 to a Pole
Step-by-step
GHT63 clamp
a) Plastic sleeve
b) Pole clamp
c) Clamp bolt
GHT66 holder
d) Locking pin
e) Top clip
f) Mounting plate
g) Bottom clip
h) Tightening screw
i) Mounting arm
008545_001
a
b
c
f
d
e
g
h
i
Step Description
For an aluminium pole, fit the plastic sleeve to the pole clamp.
1. Insert the pole into the clamp hole.
2. Attach the holder to the clamp using the clamp bolt.
3. Adjust the angle and the height of the holder on the pole to a comfortable
position.
4. Tighten the clamp with the clamp bolt.
5. Before placing the CS field controller onto
the mounting plate, ensure that the locking
pin is put into the unlocked position. To
unlock the locking pin, push the locking pin
to the left.
6. Hold the CS field controller above the holder and lower the end of the CS
field controller into the mounting plate.
7. Apply slight pressure in a downward direction and then
lower the top part of the CS field controller until the unit
is clicked into the holder. The guides of the mounting
plate aid in this action.
8. After the CS field controller is placed onto
the mounting plate, ensure that the locking
pin is put into the locked position. To lock
the locking pin, push the locking pin to the
right.
