Leica IP S
Instrument Setup 4
Inserting the ink cartridge
Note
• In this instruction, an example of how to insert the ink cartridge is shown using the Leica IP S
printer.
• Follow the information on the flag attached to the ink cartridge.
Warning
The ink cartridge has to be replaced after 3.5 months at the latest or after 60,000 prints. On the white
surface on the front side of the ink cartridge, note the date when the ink cartridge was installed.
1. Take a new ink cartridge from the carton and remove the plastic packaging.
2. Carefully shake the ink cartridge 2 to 3 times.
3. Pull the red retaining bracket (→ "Fig. 35-1") forward and insert the new ink cartridge about
halfway into the slot (→ "Fig. 35-2").
4. Open the red protective cap (→ "Fig. 35-3") one turn counterclockwise.
1
3
2

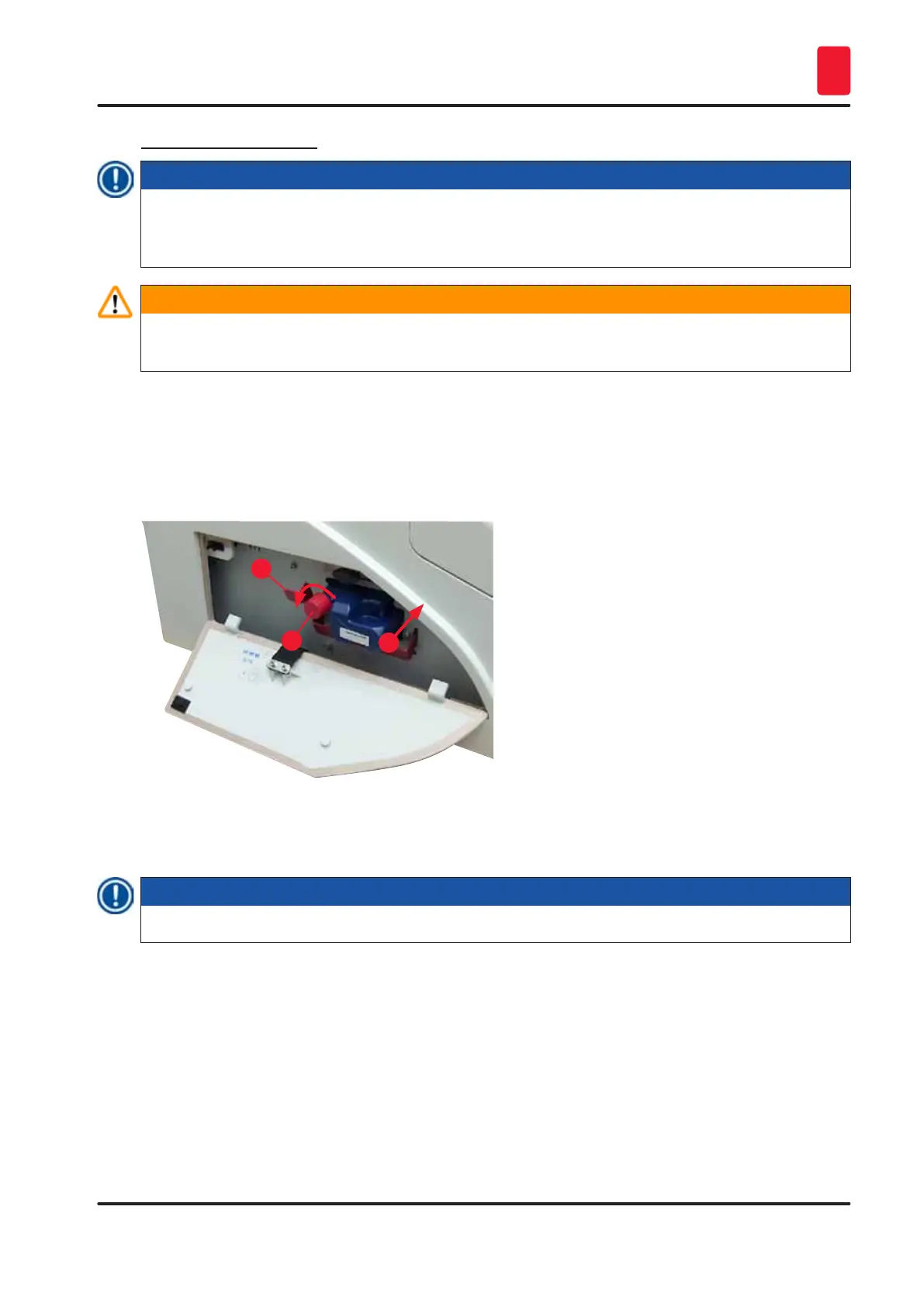

Fig. 35
Then fully insert the ink cartridge into the slot.
Note
Puncturing the cartridge seal requires that some force be applied (→ "Fig. 36-1").
