18
1
2
3
4
38
17 16 6
Installing the guide bar (1)
• Install the guide bar (1) using the lever screw (20) and set it to the desired position
Adding an auxiliary weight (15)
• Install the weight holder base (22), plus any necessary weight holder extensions (23), and place the
weights (15) on the weight holders (max. seven auxiliary weights)

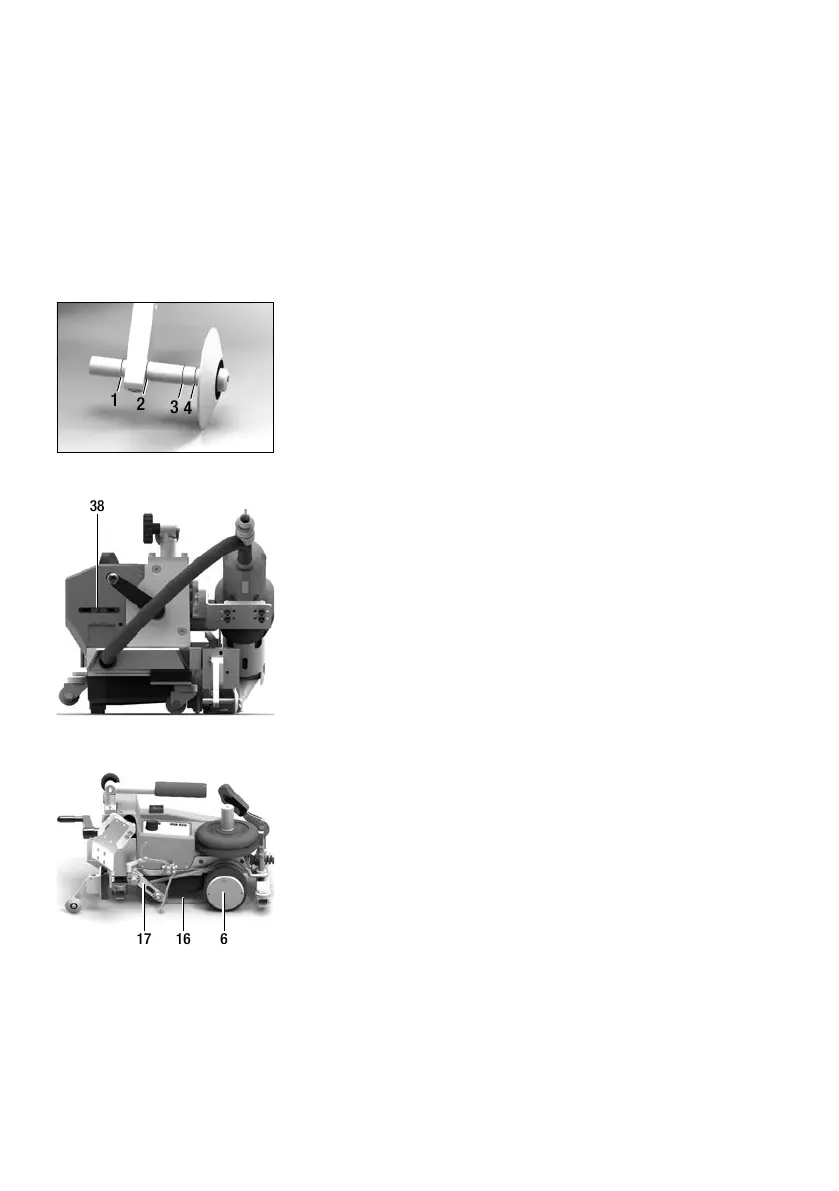

Adjusting the overlap guide (18)
The roller on the overlap guide (18) has 4 markings
Adjusting the starting switch
Release the starting switch (38) clamp, and move the starting switch as
required. Moving it to the left increases the starting delay, moving it to the
right reduces the starting delay. This increases or reduces the preheating
time at the start up.
Adjusting the round belt (16)
Check the position of the round belt (16). The round belt
(16) must lie parallel to the drive roller / contact pressure roller (6). If
necessary, adjust the tensioner (17) for the round belt.
1: Not used
2: Marking 40, 30, 20 mm overlap (factory setting)
3: Not used
4: Marking tape 40 mm
