Leister Uniplan E - Page 12

4

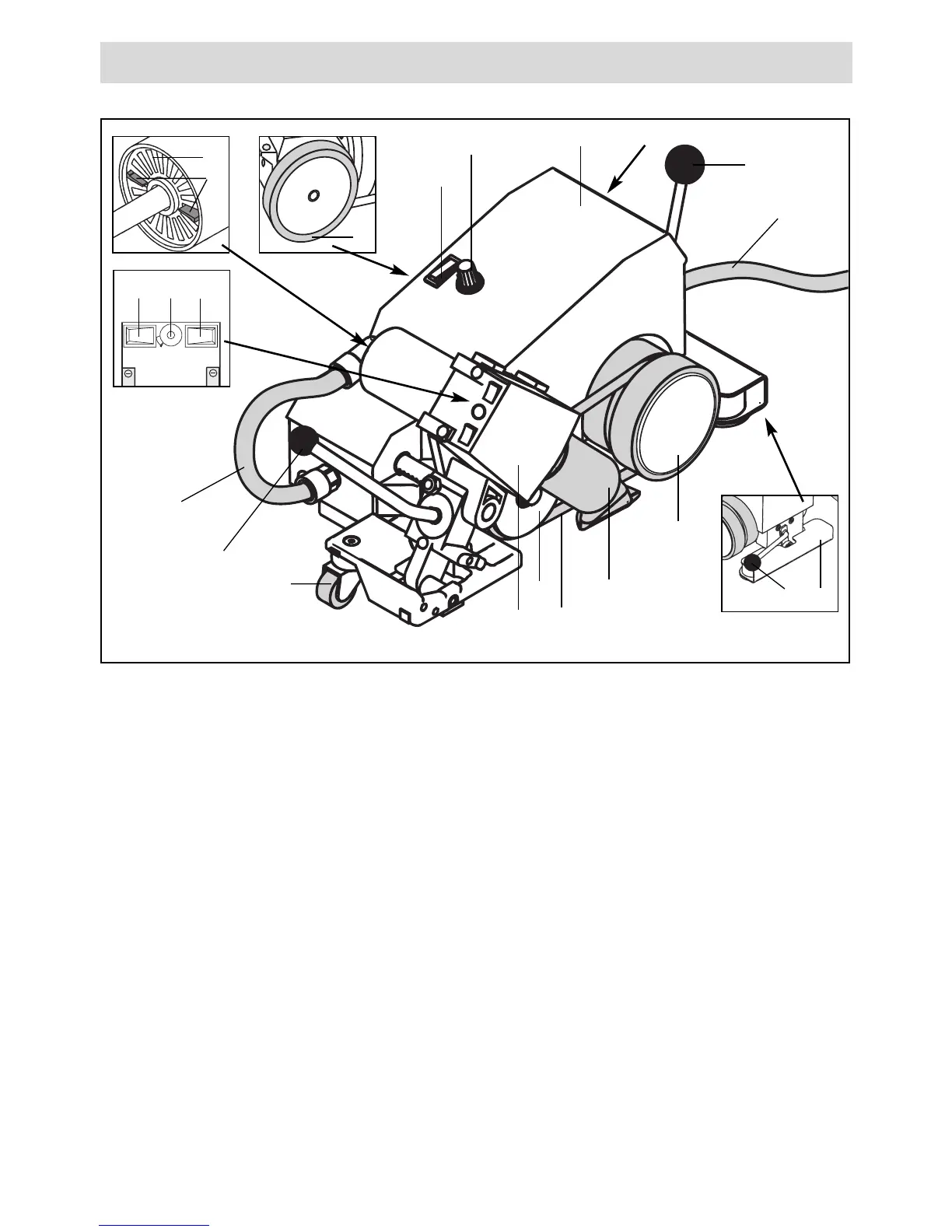

TOOL DESCRIPTION Overlap 20/30 mm LEISTER Uniplan S
1
2
3
7
8
4
12
13
9
6
20
5
Main components
1. Housing/chassis
2. Mains cable
3. Hot air blower
4. Welding nozzle
5. Connection hose
6. Drive/pressure roller
7. Pressure belt
8. Guide roller
9. Drive roller
10. Steering roller
11. Lifting device
12. Air filter
13. Manual air valve
15
16
Operating components
14. Lifting device lever
15. Drive switch
16. Potentiometer for welding speed
17. Air blower switch
18. Potentiometer for air temperature
19. Two stage switch for airflow
20. Swivel lever
21. Fuse T 1.0 A 230 V~
T 1.2 A 120 V~
1114
1
2
0
3
14
21
10
17 18 19
