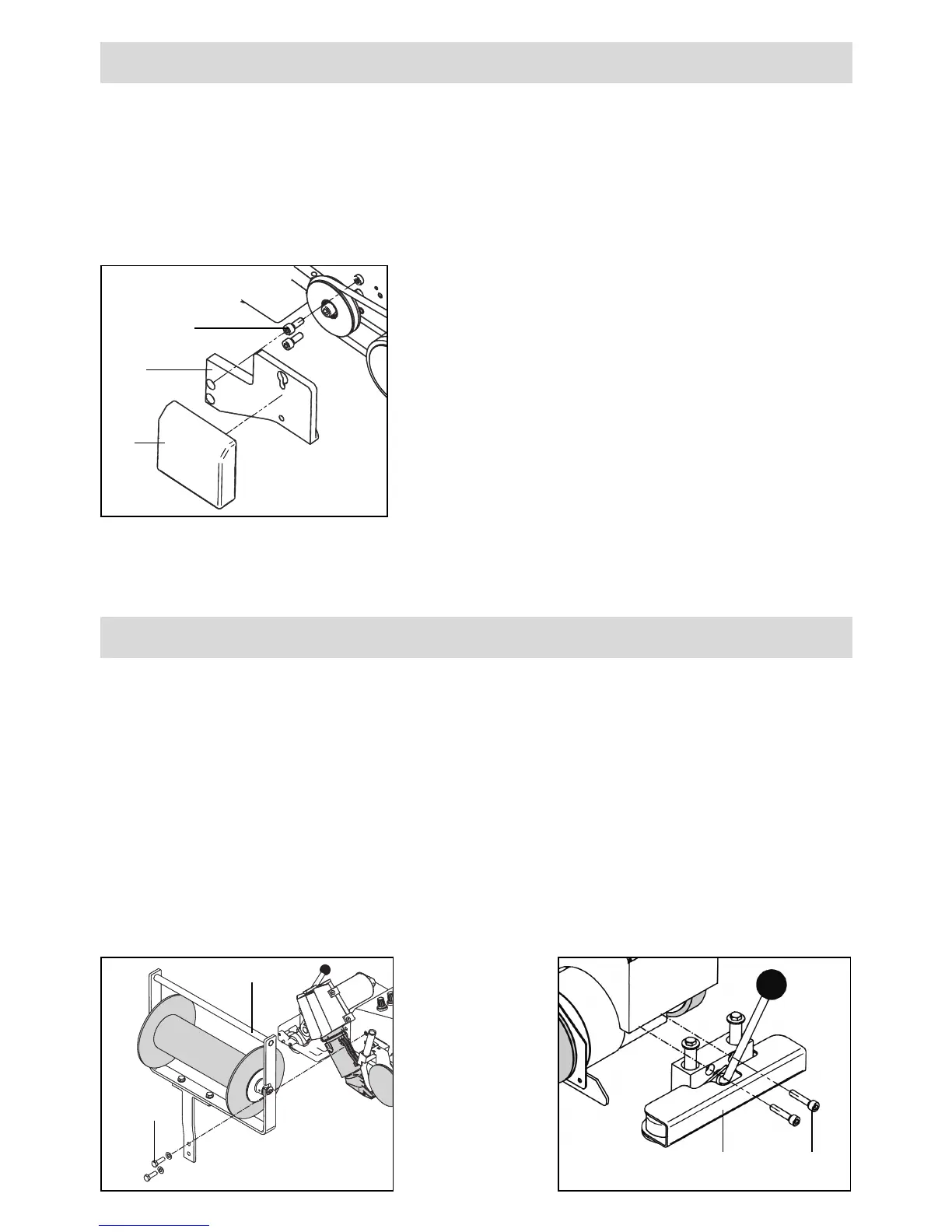

• Assembly of additional weight
– Fasten the additional weight holder (22) to the Uniplan S machine with cheese
head screw M8×20 (23).
– Attach the additional weight (24) to the additional weight holder (22).
ACCESSORIES LEISTER Uniplan S
ACCESSORIES LEISTER Unifloor S
• Operational condition: Accessories
• If the welding rod de-reeler (25) and lifting device (11) are available:
– Attach welding rod de-reeler (25) to the Unifloor S machine using cheese head
screw M8
× 20 (26).
– Attach lifting device (11) using socket head cap scew M6
× 30 (27).
Accessory
Welding rod de-reeler
Accessory
Lifting device
26
25
Additional weight accessories
23
22
24
3
2728
