Leister WELDPLAST S2 - Description of Tool; With External Air Duct; With Integrated Air Duct; Multifunctional Display

4

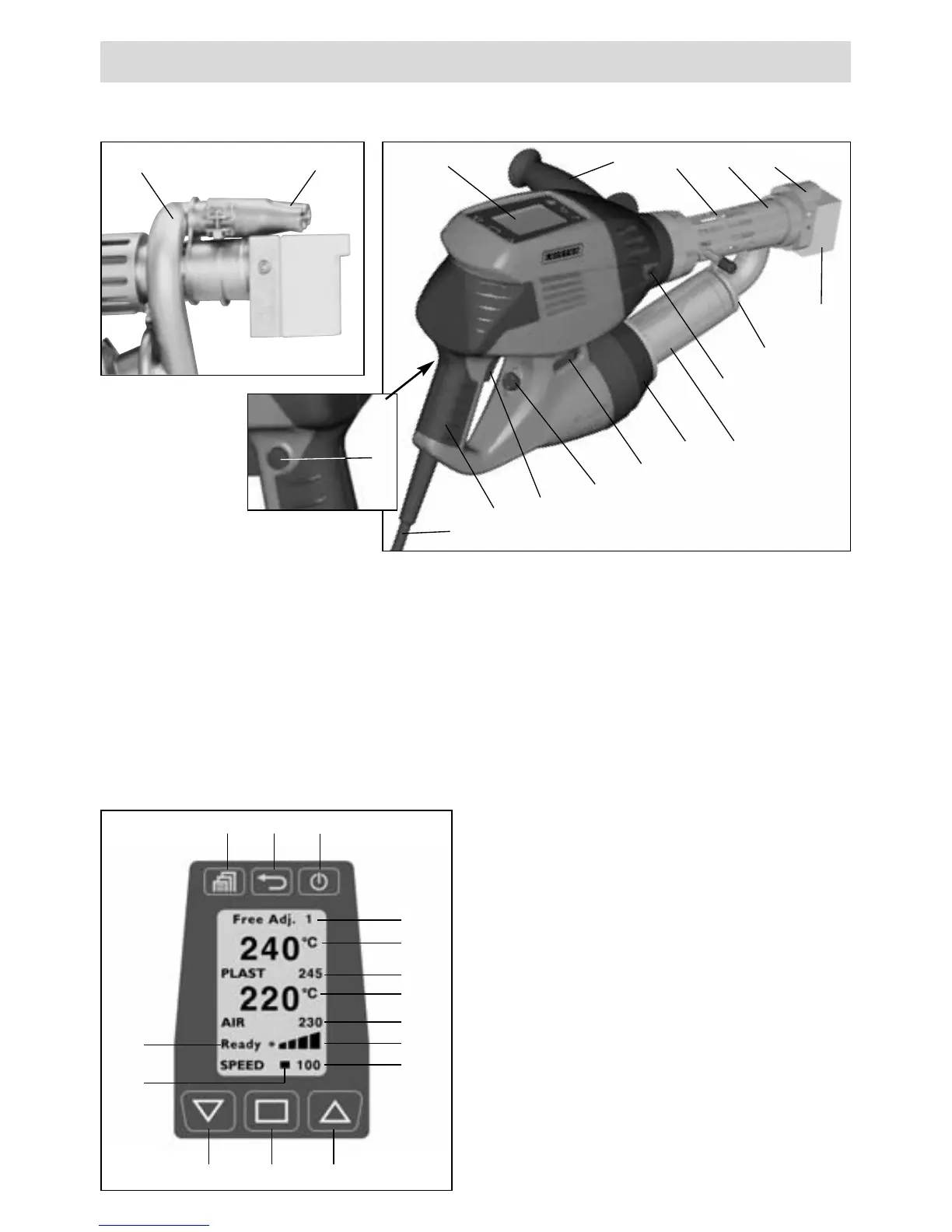

Description of tool
1 Main switch
2 On/off switch drive
3 Potentiometer
4 Drive locking device
5 Display
6 Handle
7 Jacket heating
8 Welding shoe
17 Welding program
18 Actual value plast
19 Set value plast
20 Actual value air
21 Set value air
22 Bar display for drive
23 Welding output display
24 Menu key
25 Back key
26 Stand-by/Enter key
27 Down key
28 Select key
29 Up key
30 Status display for drive
31 Cursor
9 Pre-heating nozzle
10 Tube clamp
11 Protective tube
12 Welding rod opening
13 Tool handle
14 Mains cable
15 Heating element
16 Hot air blower (brush-free)
44 External hot air duct
24
27 28 29
30
31
17
18
19
20
21
22
23
25 26
Multifunctional display
With integrated air ductWith external air duct
1
12
16
8
10
3
2
4
13
5
7
14
11
9
6
15
9
44
