C. PLANING MODE:
The objective of PLANING MODE is to automatically detect and correct Roll and Pitch angle changes to maintain
the most economical, smooth and level ride for the boat.
The Auto Glide transitions from HOLE SHOT MODE
into PLANING MODE as soon as the boat reaches the
HOME PITCH DEFAULT POSITION, During PLANING MODE, the Auto Glide monitors Roll and Pitch changes
and automatically moves the trim tabs to correct for those changes. The CURRENT ROLL AND PITCH
POSITIONS are constantly displayed on the Key Pad Crosshair LED Indicators.
The following illustrations outline how the Auto Glide corrects for Roll and Pitch angle changes and how these
changes are displayed on the Key Pad Crosshair LED Indicator.

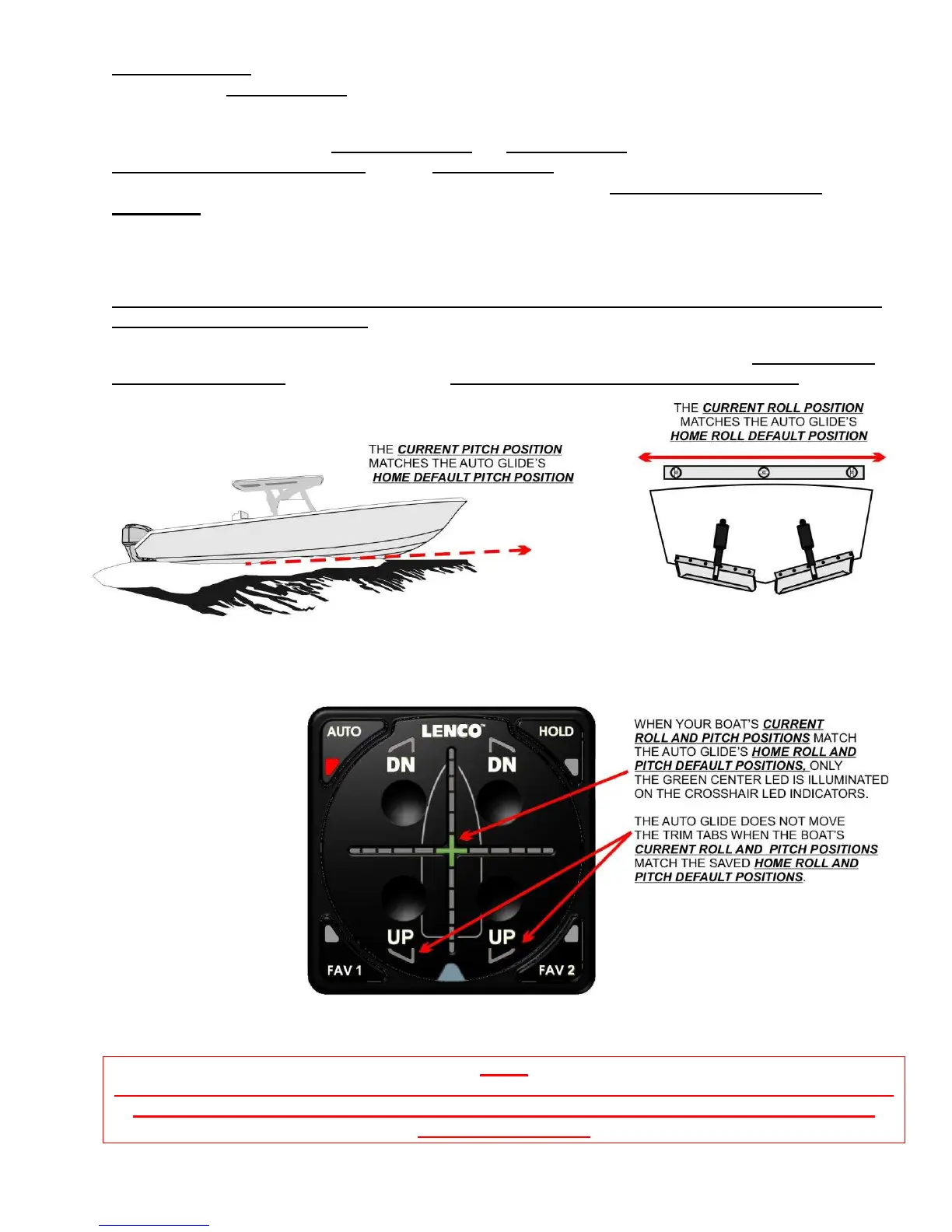

EXAMPLE 1: BOAT’S CURRENT ROLL AND PITCH POSITIONS MATCH THE AUTO GLIDE’S HOME ROLL
AND PITCH DEFAULT POSITIONS:
Only the green center LEDs are illuminated on the Crosshair LED Indicators when the boat’s CURRENT ROLL
AND PITCH POSITIONS match the Auto Glide’s HOME ROLL AND PITCH DEFAULT POSITIONS,
NOTE:
THIS EXAMPLE ILLUSTRATES THE KEY PAD LED INDICATORS DISPLAY WHEN THE BOAT’S ROLL AND
PITCH POSITIONS ARE EQUAL TO THE HOME DEFAULT POSTITIONS WHICH WERE ESTABLISHED
DURING SETUP MODE.
