38

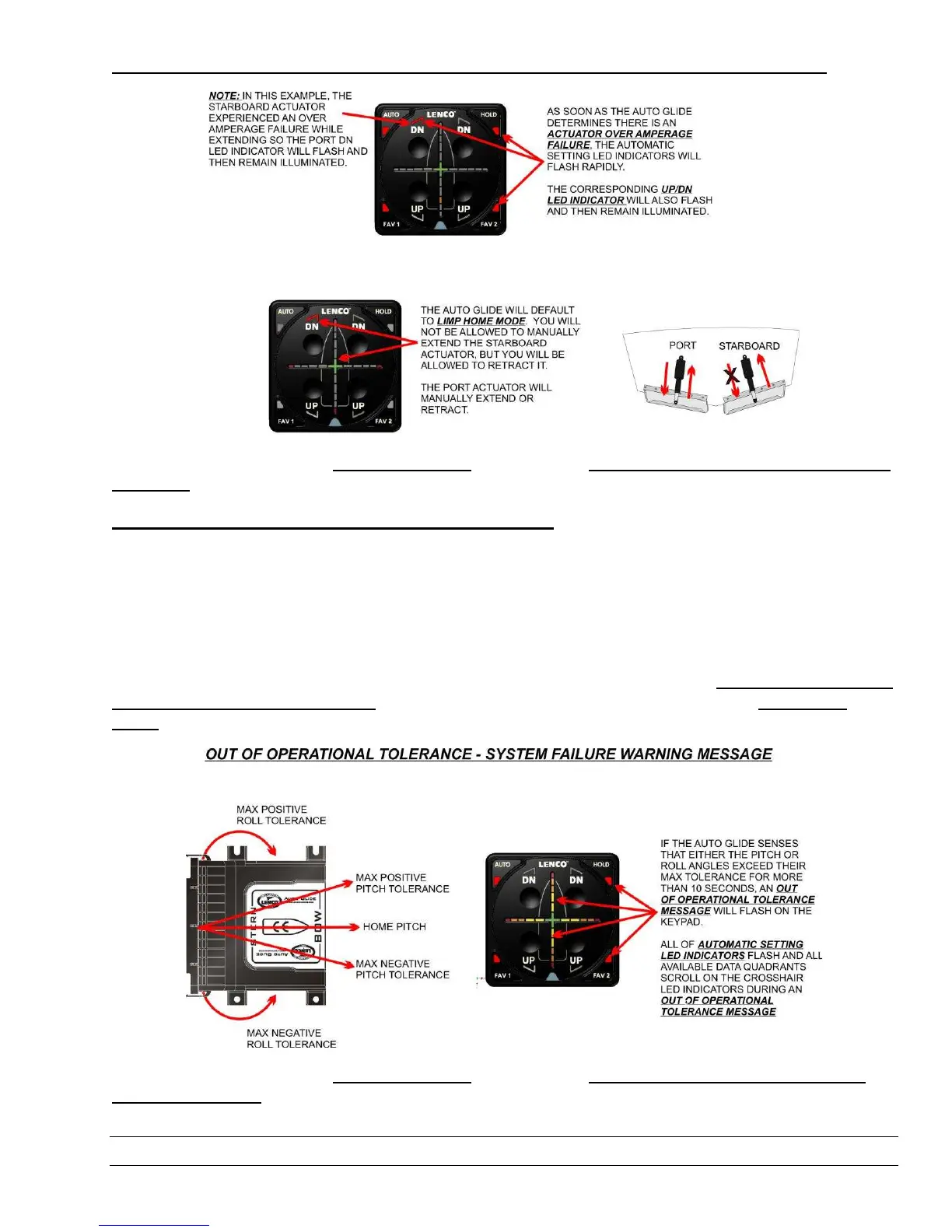

STEP 2 – AUTO GLIDE DISPLAYS SYSTEM FAILURE MESSAGE AND DEFAULTS TO LIMP HOME
Once the Auto Glide defaults to LIMP HOME MODE and displays an ACTUATOR OVER AMPERAGE FAILURE
MESSAGE, you will have to turn your motor(s) “OFF” and then “ON” again to reset the Auto Glide.
G. CONTROL BOX OUT OF OPERATIONAL TOLERANCE:
The Auto Glide Control Box contains sensors that measure roll angles, pitch angles and yaw (rate of turn). When
the Auto Glide Control Box is attached to the boat, the sensors measure the boat’s roll angles, pitch angles and
yaw. If the Control Box becomes detached from its mounting location, these measurements would become
inaccurate.
To protect from these potentially inaccurate pitch and roll readings, the Auto Glide constantly monitors the
maximum pitch and roll angle changes the boat makes at any given time. If the changes in roll or pitch angle
exceed a predetermined threshold for more than 10 seconds, the Auto Glide will flash a OUT OF OPERATIONAL
TOLERANCE WARNING MESSAGE, stop all automatic boat control decisions and default to LIMP HOME
MODE.
Once the Auto Glide defaults to LIMP HOME MODE
and displays an OUT OF OPERATIONAL TOLERANCE
FAILURE MESSAGE, you will have to verify the Auto Glide Control Box is installed properly (See Section 2.3 in
Owner’s Manual A) and then reset the Auto Glide by turning your motor(s) “OFF” then “ON” again.
END OF OWNER’S MANUAL B
