V. SYSTEM FAILURE WARNING MESSAGES
There are six (6) SYSTEM FAILURE WARNING MESSAGES that flash on the key pad whenever the Auto Glide
loses any of the required engine or GPS data, loses communication with the Key Pad, if the Auto Glide Control
Box becomes loose from its mounting location or if one of the trim tab actuators draws too much current.
NOTE:
While in LIMP HOME MODE, you can press all four (4) of the UP/DN Buttons on the Key Pad and the Auto Glide
will display the SYSTEM FAILURE WARNING MESSAGE on the Crosshair LED Indicators.
A. DATA LOSS FAILURE:
There are three types of data loss scenarios that could cause the Auto Glide to flash a SYSTEM FAILURE
WARNING MESSAGE: GPS DATA LOSS, ENGINE DATA LOSS, OR KEY PAD COMMUNICATION LOSS.

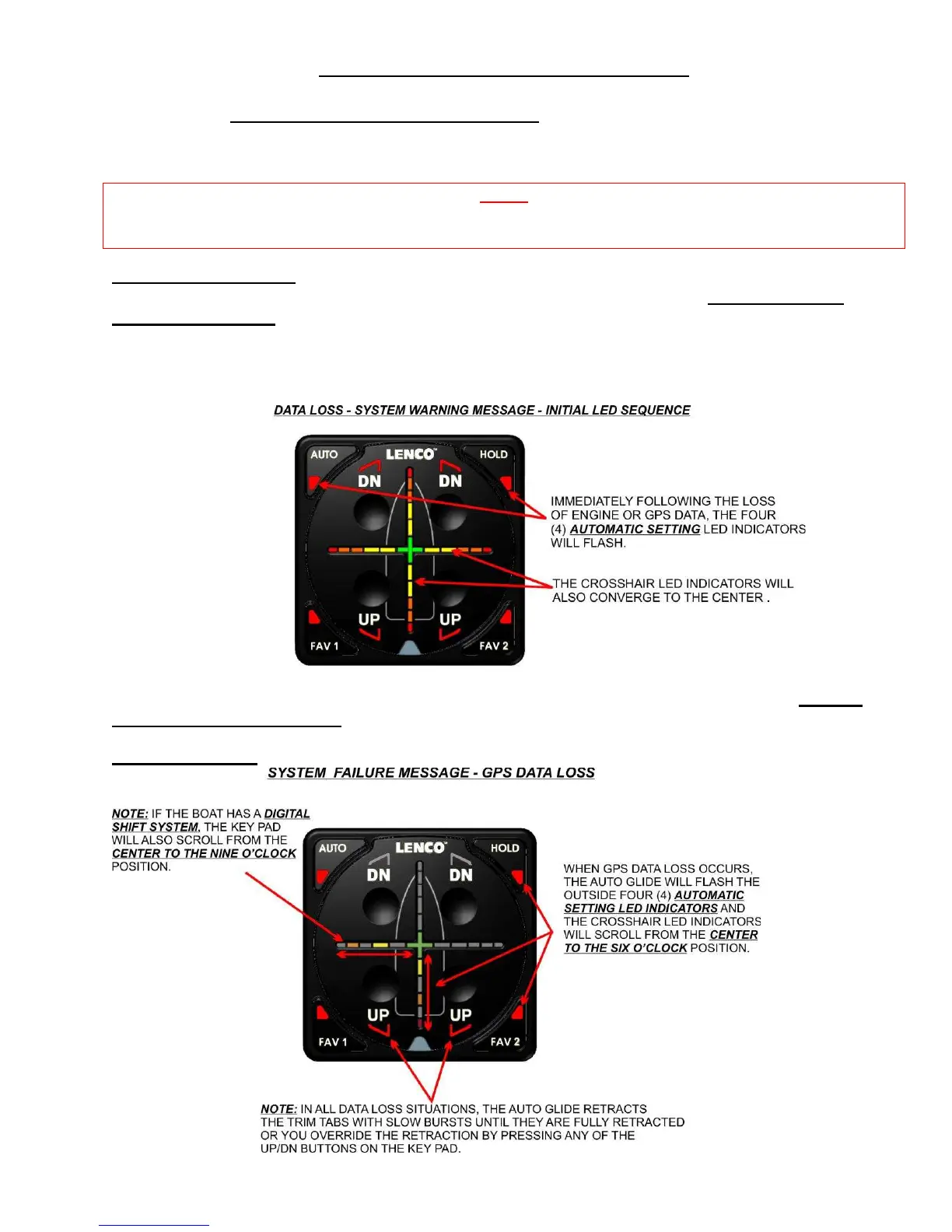

The following illustrations outline the sequence of flashes that occur on the Key Pad when the Auto Glide loses
either GPS or Engine CANBUS data.
Once the Auto Glide completes the initial LED sequence of flashes, it will display the corresponding SYSTEM
FAILURE WARNING MESSAGE.
B. GPS DATA LOSS:
To Next Page
