I. KEY PAD OVERVIEW
A. KEY PAD BUTTONS
The Auto Glide Key Pad has two (2) Bow Down and two (2) Bow Up buttons that provide manual control of the
trim tabs at any time. There are also four (4) Automatic Setting Buttons on the outer corners of the key pad that
enable you to select up to four different automatic Home Roll and Pitch positions that the Auto Glide will use to
level the boat.
DN DN
AUT
O
UP UP
F
H
FA
O
AV
L
V1
D
2
“AUTO” AUTOMATIC
SETTING BUTTON
“FAV 1”
BUTTON
AUTOMATIC
SETTING
“FAV 2”
BUTTON
AUTOMATIC
SETTING
PORT
BOW DOWN
BUTTON
PORT
BOW UP
BUTTON
STARBOARD
BOW DOWN
BUTTON
STARBOARD
BOW UP
BUTTON
“HOLD”
BUTTON
AUTOMATIC
SETTING

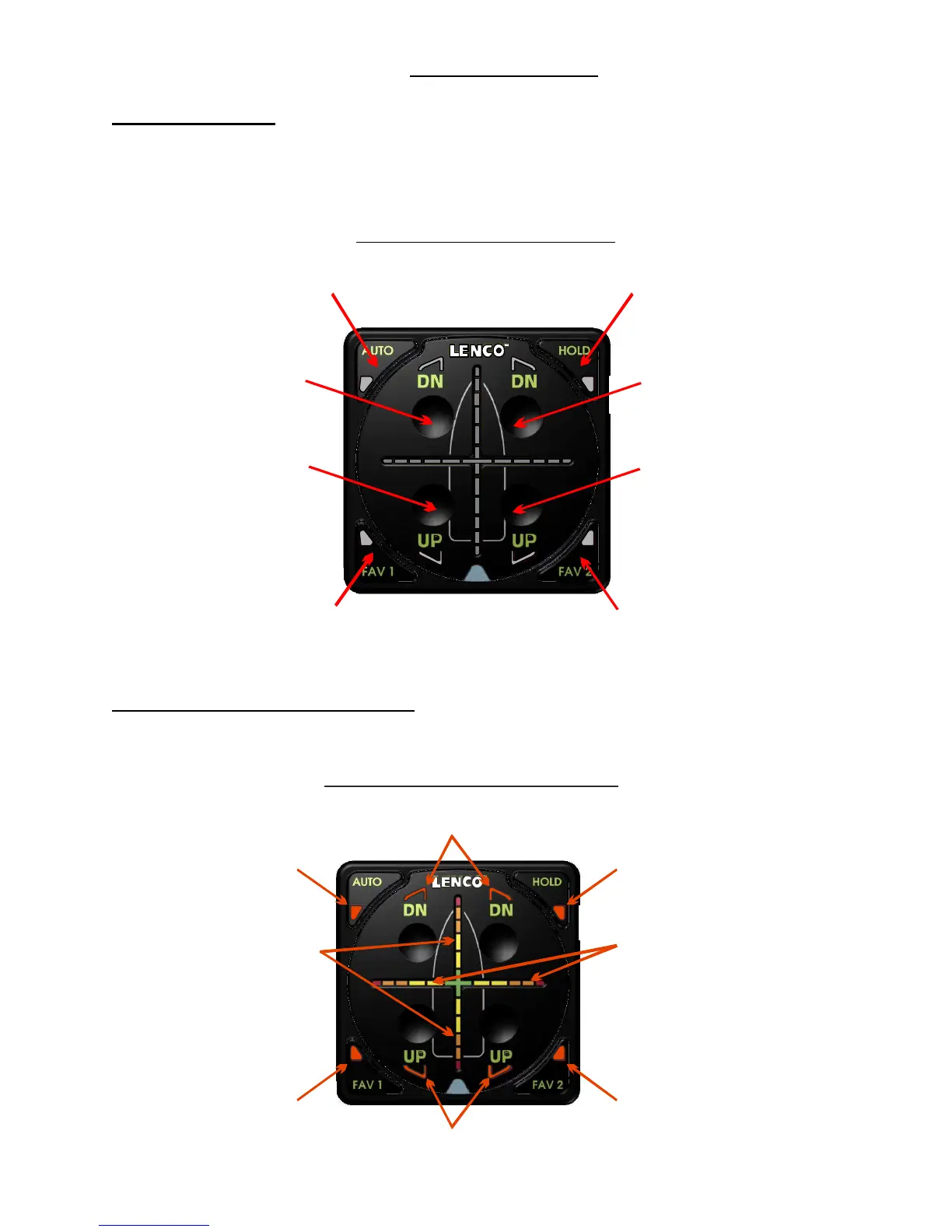

KEY PAD - BUTTON OVERVIEW
B. KEY PAD BUTTON LED INDICATORS
Each of the Key Pad Buttons also has a corresponding LED Indicator that illuminates to indicate that the button is
being activated (either manually or automatically).
DN DN
AUTO
UP UP
F
H
F
A
O
A
V
L
V
1
D
2
HORIZONTAL
CROSSHAIR
LED INDICATORS
VERTICAL
CROSSHAIR
LED INDICATORS
BOW DOWN BUTTON
LED INDICATORS
BOW UP BUTTON
LED INDICATORS
“AUTO” AUTOMATIC
SETTING LED
INDICATOR
“FAV 1” AUTOMATIC
SETTING LED
INDICATOR
“FAV 2” AUTOMATIC
SETTING LED
INDICATOR
“HOLD”AUTOMATIC
SETTING LED
INDICATOR
KEY PAD - LED INDICATOR OVERVIEW
