Page 23
CBX40UHV
CONTROL MODULE
3-PIN JACK
NTC
THERMISTOR

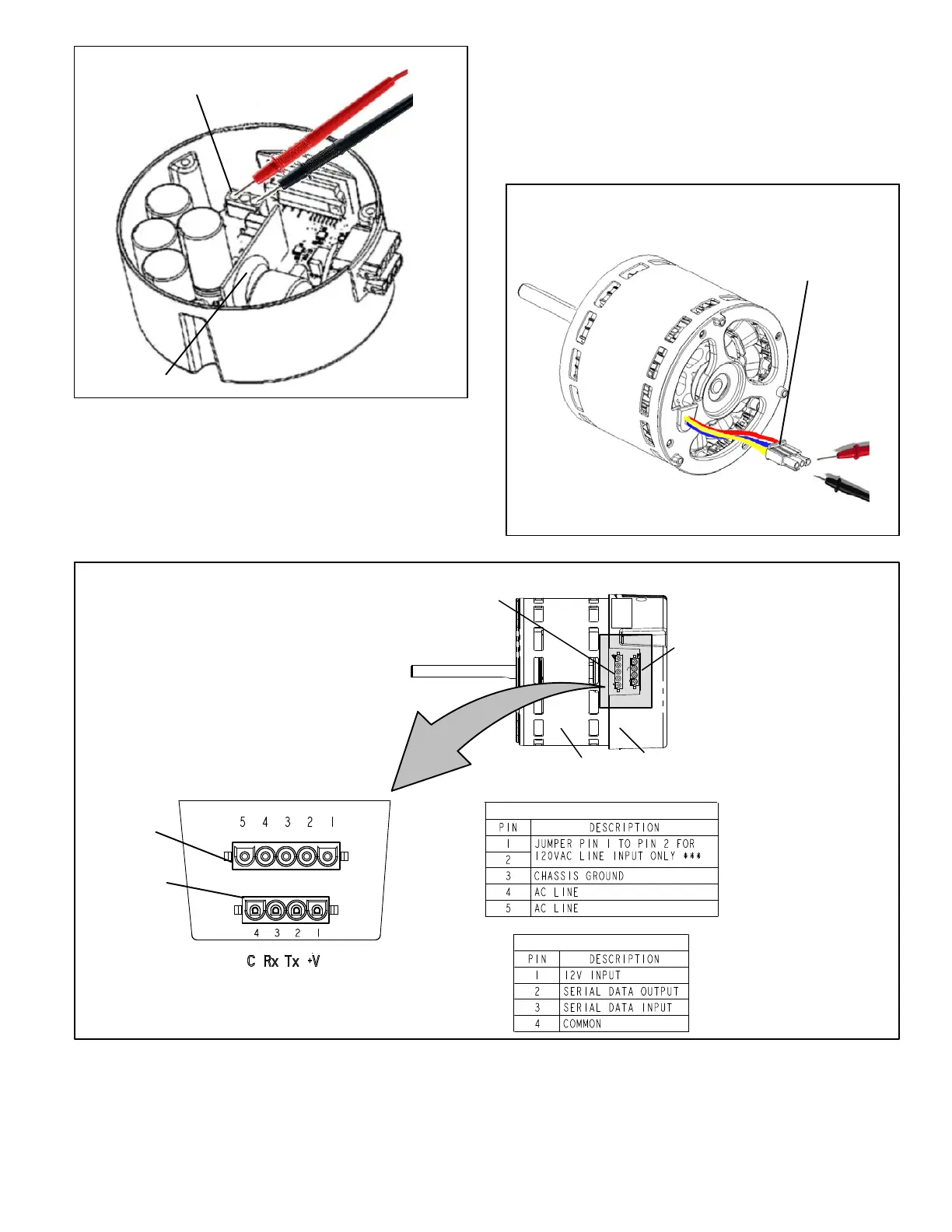

Figure 18. Module Test (Emerson)
Additional Indoor Blower Motor (B3) Troubleshooting
1. If motor shaft spins freely in both directions, proceed to
next step. If not, replace motor.
2. Check the motor to control harness for any damage.
A. If harness or terminals are damaged replace the
motor.
B. If there is no damage, proceed to next step.
3. Check resistance between each of the three-phase
terminals in the motor harness as illustrated in figure
19. Resistance between any two contacts should be
equal. If resistance between any two contacts are not
equal, or if any resistance shows open or
short-circuited, replace the motor.
MOTOR 3-PIN
PLUG
Figure 19. Motor Test (Emerson)
J48 5 Pin Line Voltage Connector
J49 4 Pin Control Connector
P48 5 Pin
P49 4 Pin
P48 (5-PIN)
P49 (4-PIN)
CONTROL MODULE
MOTOR
Figure 20. Indoor Blower Motor (B3) Control Connections (Emerson)
To Next Page
