1130 Trackpad cable and trackpad
For access, remove these FRUs:
• “1010 Base cover assembly” on page 65
• “1060 Built-in battery” on page 73

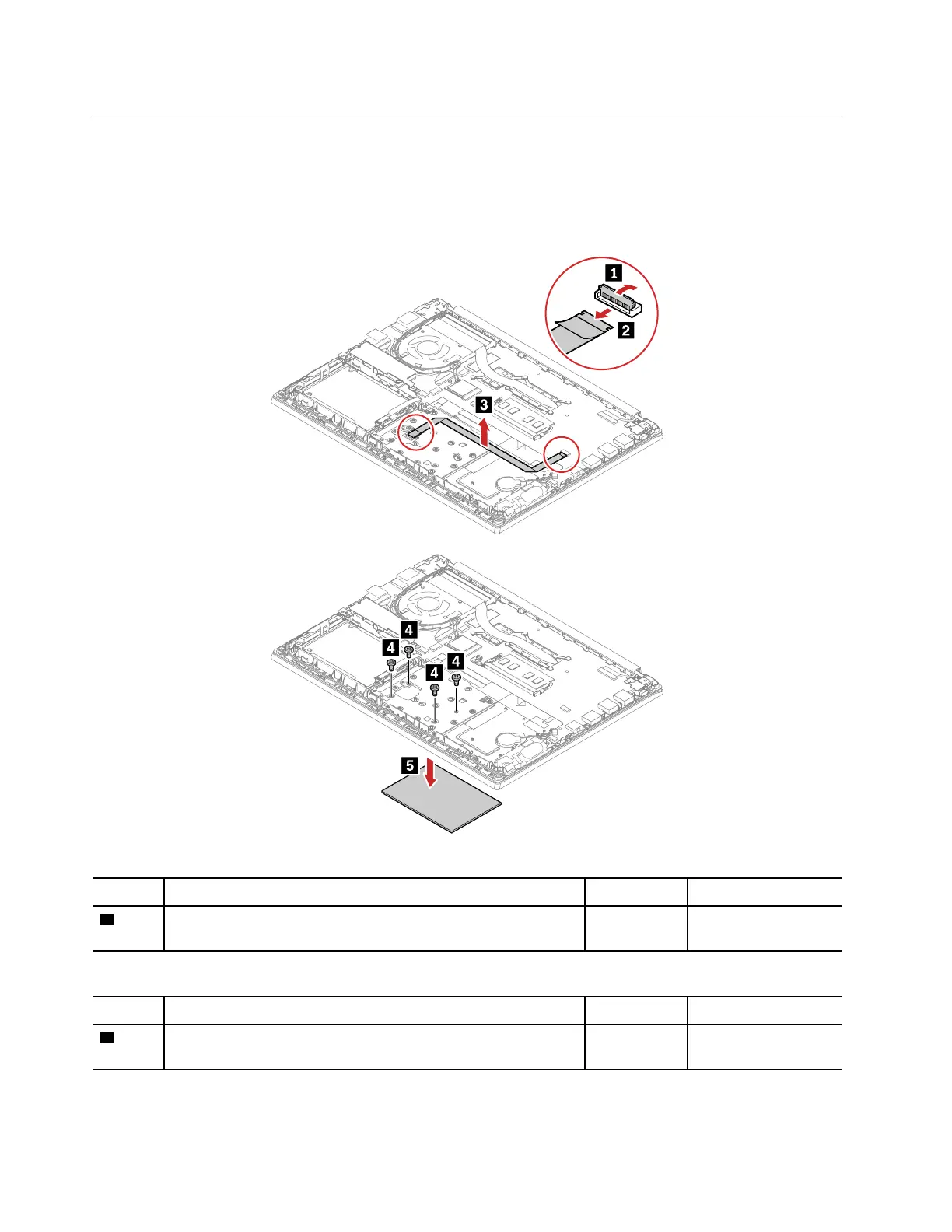

Removal steps of the trackpad cable and trackpad
Table 13. Screw specification (ThinkPad E14/R14/S3 Gen 2)
Step Screw (quantity) Color Torque
4
M2 × 2 mm, flat-head, nylon-coated (4) Silver 0.147 Nm
(1.5 kgf-cm)
Table 14. Screw specification (ThinkPad E15)
Step Screw (quantity) Color
Torque
4
M2 × 1.8 mm, thin-head, nylon-coated (4) Silver 0.147 Nm
(1.5 kgf-cm)
84 E14/R14/E15/S3 Gen 2 Hardware Maintenance Manual
