Removal steps of the camera and microphone combo card
When installing:
Ensure that the connector is attached firmly.
2060 LED and camera cable assembly
ThinkPad E14/R14/S3 Gen 2

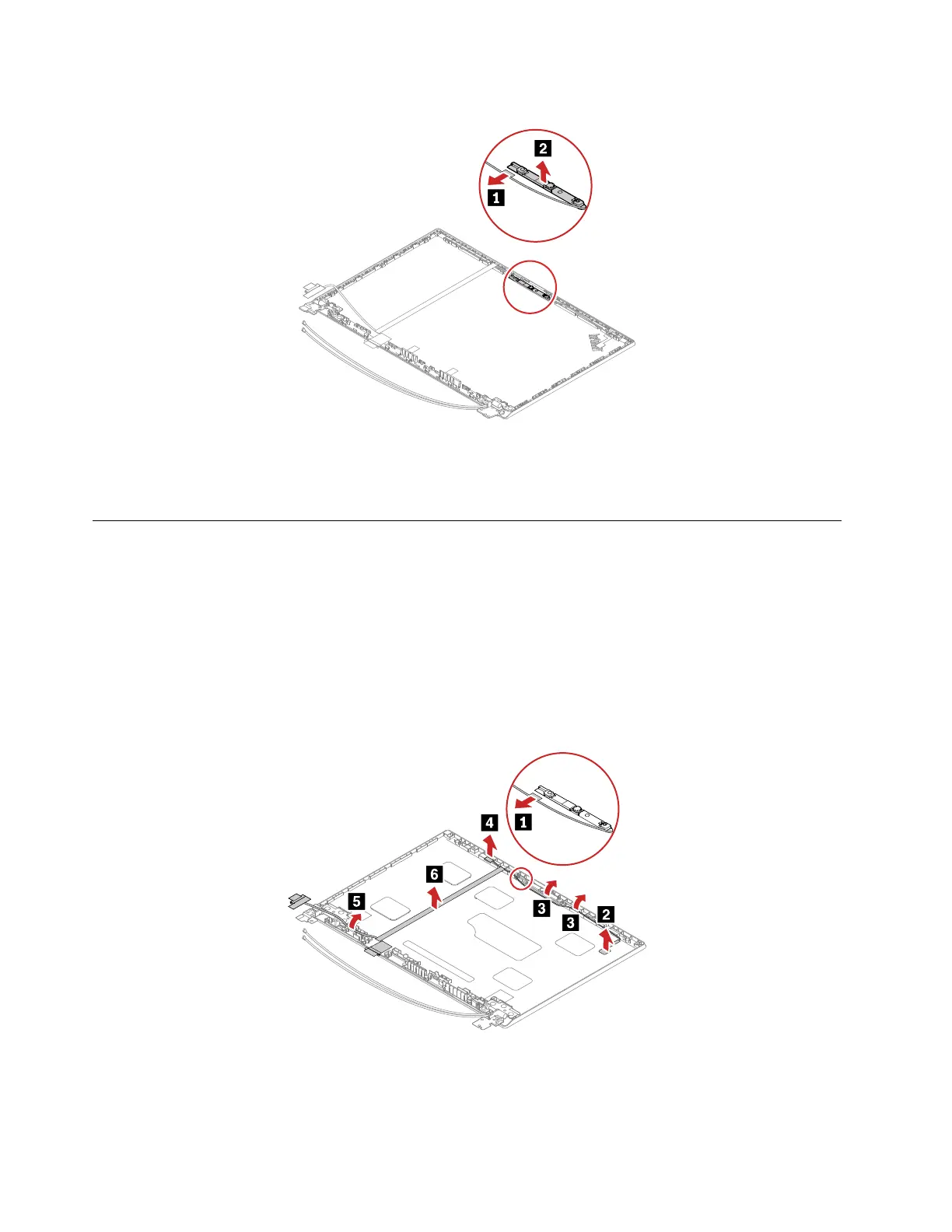

Removal steps of LED and camera cable assembly
For access, remove these FRUs in order:
• “1140 LCD unit” on page 85
• “2010 LCD bezel assembly” on page 91
• “2020 LCD panel” on page 92
• “2030 Hinge cap (for ThinkPad E14/R14/S3 Gen 2 only)” on page 96
100 E14/R14/E15/S3 Gen 2 Hardware Maintenance Manual
