1090 I/O card and cable
ThinkPad E14/R14/S3 Gen 2

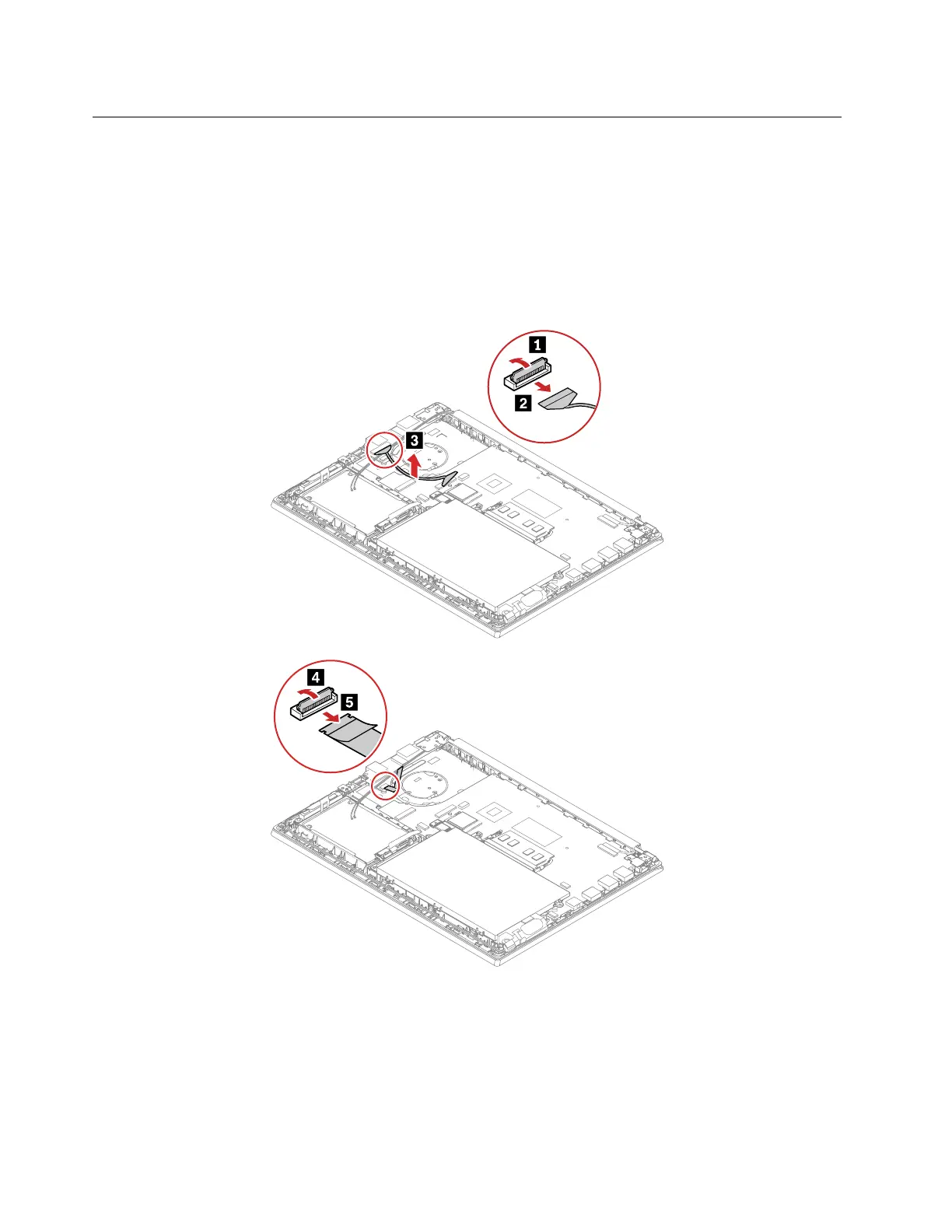

Removal steps of the I/O card and cable
For access, remove these FRUs:
• “1010 Base cover assembly” on page 65
• “1040 M.2 solid-state drive and brackets” on page 68
• “1080 Thermal fan assembly” on page 75
78 E14/R14/E15/S3 Gen 2 Hardware Maintenance Manual
