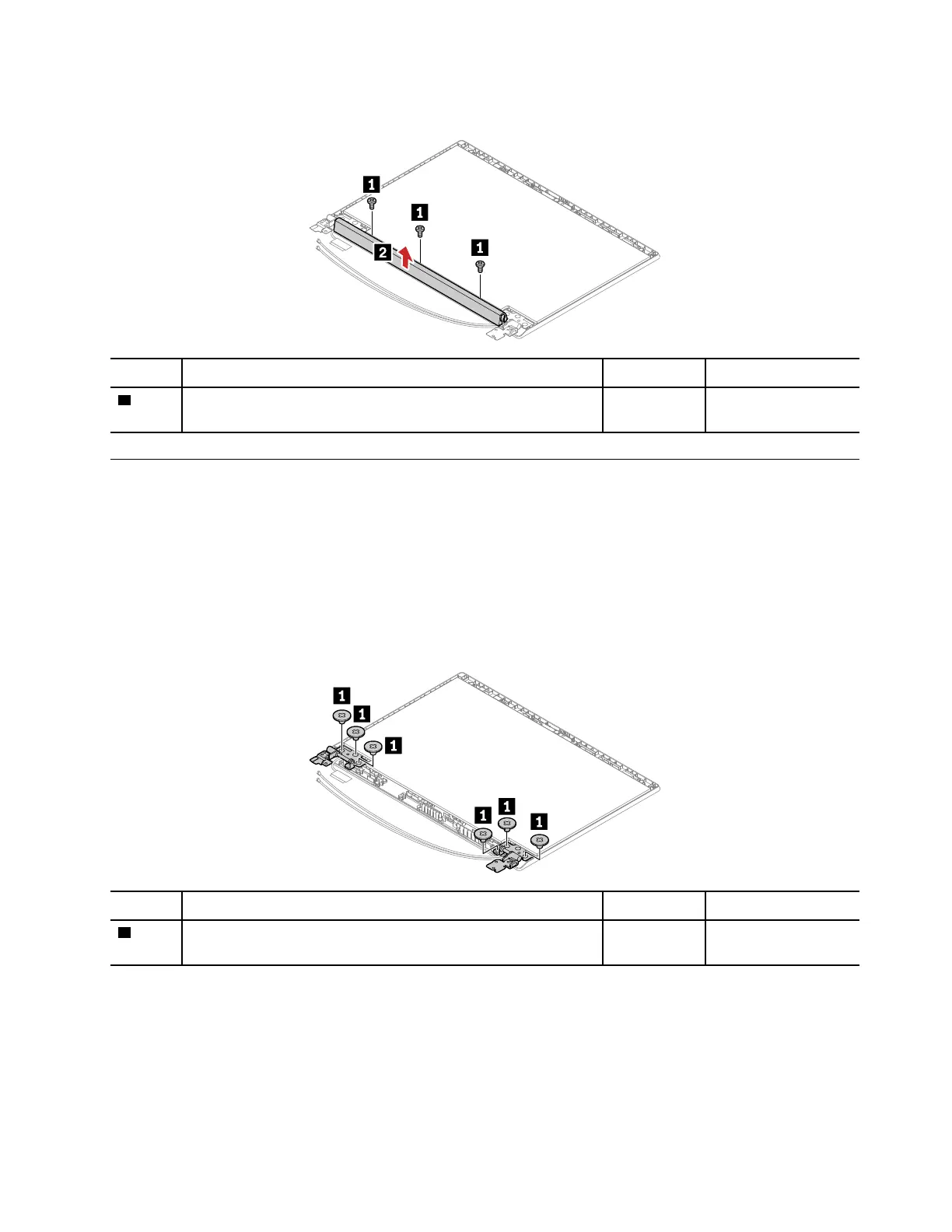

Removal steps of the hinge cap
Step Screw (quantity) Color
Torque
1
M2 × 2 mm, flat-head, nylon-coated (3) Black 0.181 Nm
(1.85 kgf-cm)
2040 Hinge kit
ThinkPad E14/R14/S3 Gen 2 (for models with short hinge kits)
Removal steps of the short hinge kits
For access, remove these FRUs in order:
• “1140 LCD unit” on page 85
• “2010 LCD bezel assembly” on page 91
• “2030 Hinge cap (for ThinkPad E14/R14/S3 Gen 2 only)” on page 96
Step Screw (quantity) Color
Torque
1
M2.5 × 2.2 mm, flat-head, nylon-coated (6) Silver
0.294 Nm
(3.0 kgf-cm)
Chapter 8. Removing or replacing a FRU 97
