ThinkPad E14/R14/S3 Gen 2 (for models with long hinge kits)

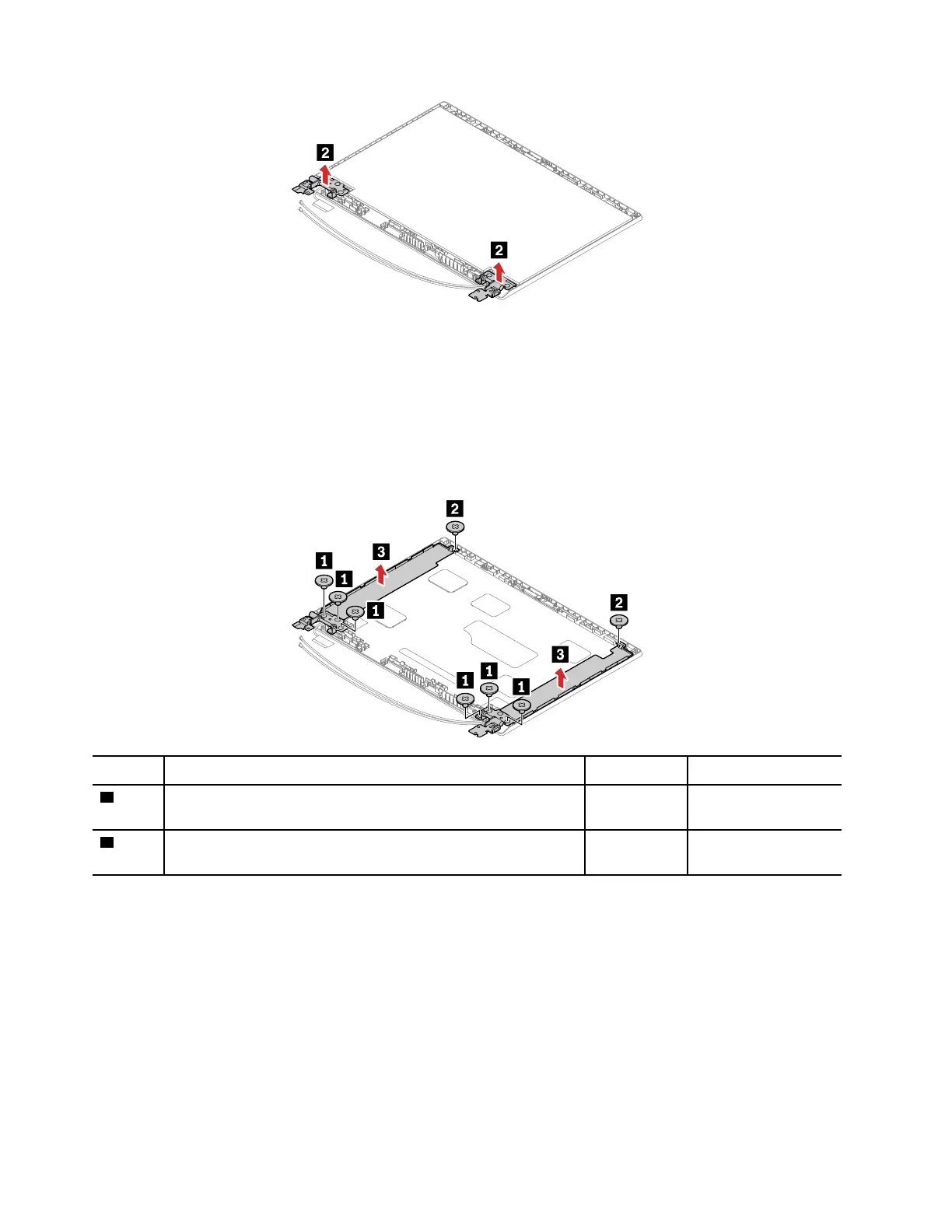

Removal steps of the long hinge kits
For access, remove these FRUs in order:
• “1140 LCD unit” on page 85
• “2010 LCD bezel assembly” on page 91
• “2030 Hinge cap (for ThinkPad E14/R14/S3 Gen 2 only)” on page 96
• “2020 LCD panel” on page 92
Step Screw (quantity) Color
Torque
1
M2.5 × 2.2 mm, flat-head, nylon-coated (6) Silver
0.294 Nm
(3.0 kgf-cm)
2
M2 × 2.5 mm, flat-head, nylon-coated (2)
Black 0.181 Nm
(1.85 kgf-cm)
ThinkPad E15
Removal steps of the hinge kit
For access, remove these FRUs in order:
• “1140 LCD unit” on page 85
• “2010 LCD bezel assembly” on page 91
98
E14/R14/E15/S3 Gen 2 Hardware Maintenance Manual
