2.Removetheservercover.See“Removingtheservercover”onpage21.
3.Removetherisercardassembly.See“Removingtherisercardassembly”onpage36.
4.InstallthePCIcardintotheslotontherisercardassembly.

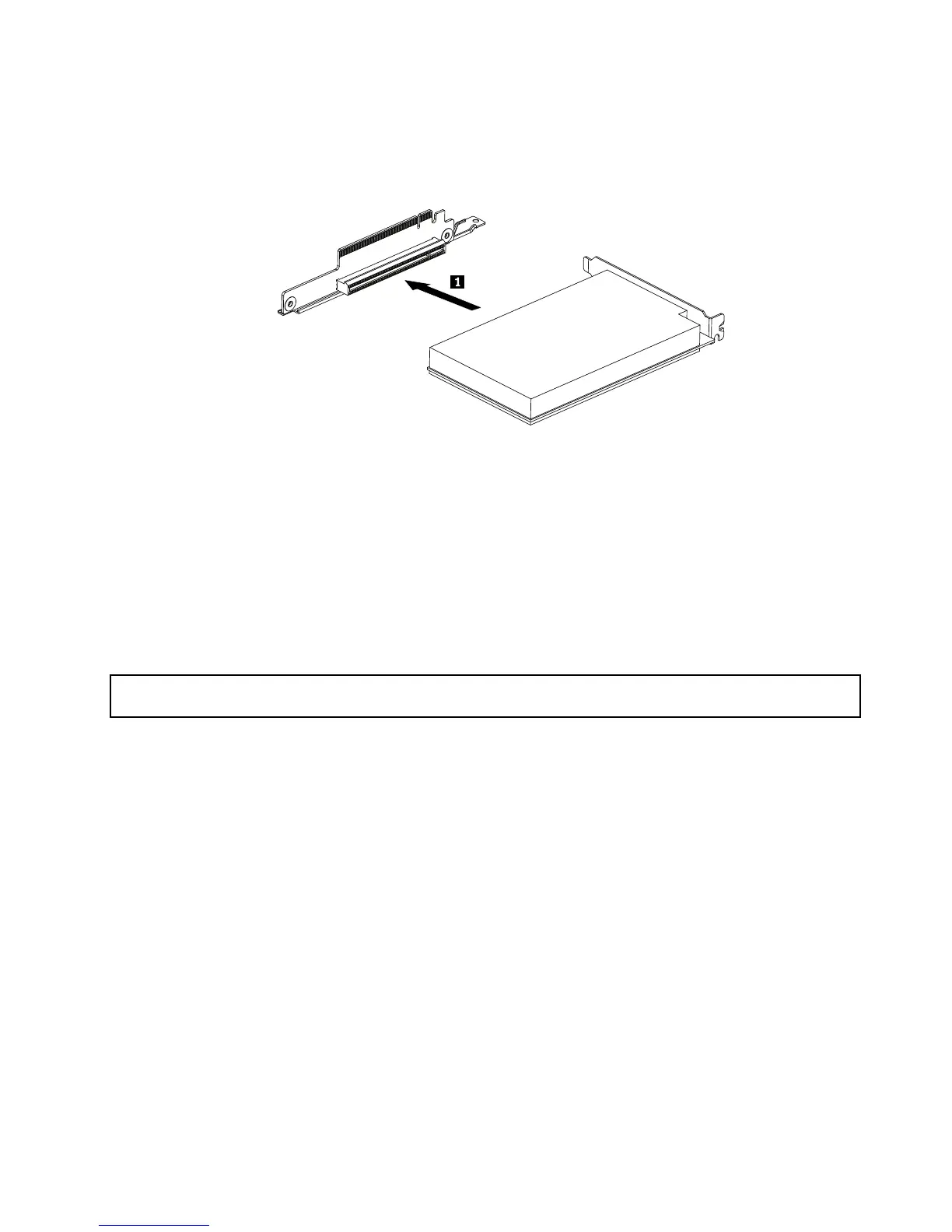

Figure24.InstallingaPCIcardintotheslotontherisercardassembly
5.InstalltherisercardassemblyintoanappropriatePCIcardslotonthesystemboard.See“Installing
therisercardassembly”onpage35
.
6.ConnectanycablestothePCIcard.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage67.
RemovingaPCIcard
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Safetyinformation”
onpageiiiand“Guidelines”onpage19.
ThissectionprovidesinstructionsonhowtoremoveaPCIcard.
ThePCIcardisinstalledontherisercardassembly.ToremoveaPCIcard,dothefollowing:
Note:UseanydocumentationthatcomeswiththePCIcardandfollowthoseinstructionsinadditionto
theinstructionsinthissection.
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage21.
3.DisconnectanycablesfromthePCIcardoranycablesthatimpedeaccesstotherisercardassembly.
4.RemovetherisercardassemblytogetherwiththeinstalledPCIcard.See“Removingtherisercard
assembly”onpage36.
Chapter5.Installing,removing,orreplacinghardware39
