7.InstalltheRAIDcontrollerintoanappropriatePCIcardslotontherisercardassembly.Then,install
thescrewtosecuretheRAIDcontrollerinplace.

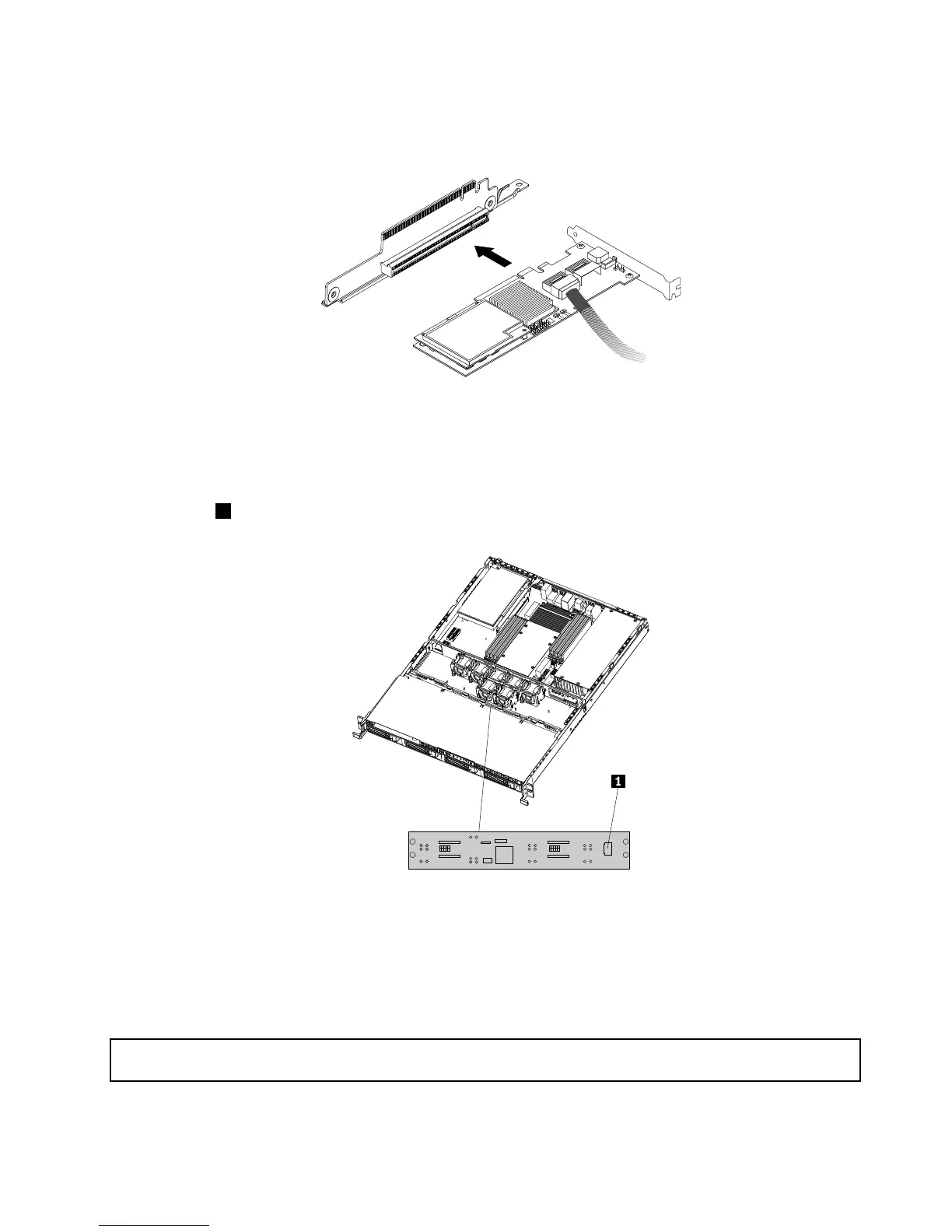

Figure36.InstallingtheRAIDcontrollerintothePCIcardslotontherisercardassembly
8.InstalltherisercardassemblywiththeRAIDcontrollerintoanappropriatePCIcardslotonthesystem
board.
9.Connecttheotherendofthe400mm(15.75inches)miniSASsignalcabletotheminiSASsignalcable
connector1onthebackplaneofyourserver.
Figure37.MiniSASsignalcableconnectoronthebackplane
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage67
.
InstallingtheThinkServerRAID700Adapter
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Safetyinformation”
onpageiii
and“Guidelines”onpage19.
Chapter5.Installing,removing,orreplacinghardware51
