6.Removethetwoscrewsthatsecurethefrontpanelboardandthenremovethefrontpanelboard
fromthechassis.

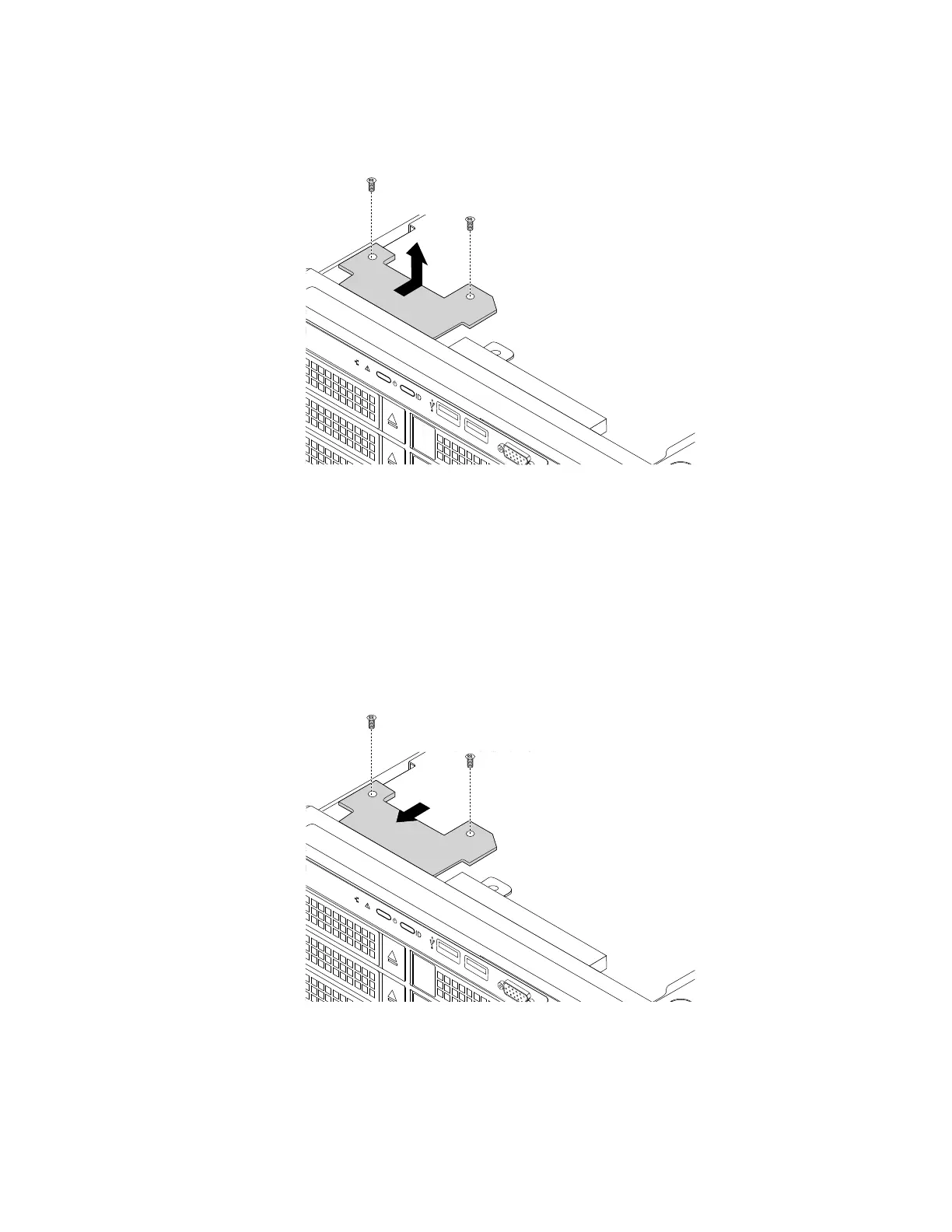

Figure131.Removingthefrontpanelboard
7.Touchthestatic-protectivepackagethatcontainsthenewfrontpanelboardtoanyunpaintedsurface
ontheoutsideoftheserver.Then,takethenewfrontpanelboardoutofthepackage.
Note:Carefullyhandlethefrontpanelboardbyitsedges.
8.Carefullypositionthenewfrontpanelboardonthechassis.Ensurethatthefrontcontrols,connectors,
andLEDsareinsertedintothecorrespondingholesinthefrontbezel.Alignthetwoscrewholesinthe
newfrontpanelboardwiththecorrespondingmountingstudsonthechassis.Then,installthescrewsto
securethefrontpanelboard.
Figure132.Installingthefrontpanelboard
9.Connectthefront-panel-boardcablestothesystemboard.See“Systemboardcomponents”on
page41
.
Chapter6.Replacinghardware151
