• Read “Installation guidelines” on page 92 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DY1RaWHYM4xDloAwuBQHR0
• Youku: http://list.youku.com/albumlist/show/id_52339628
Procedure
Step 1. Touch the static-protective package that contains the internal RAID adapter to any unpainted
surface on the outside of the server. Then, take the internal RAID adapter out of the package and
place it on a static-protective surface.
Step 2. Remove any components that may impede installation of the internal RAID adapter.
Step 3. Align the notches on the tray with the pins on the chassis, place down the internal RAID adapter,
and slightly slide it as shown to secure it on the chassis.

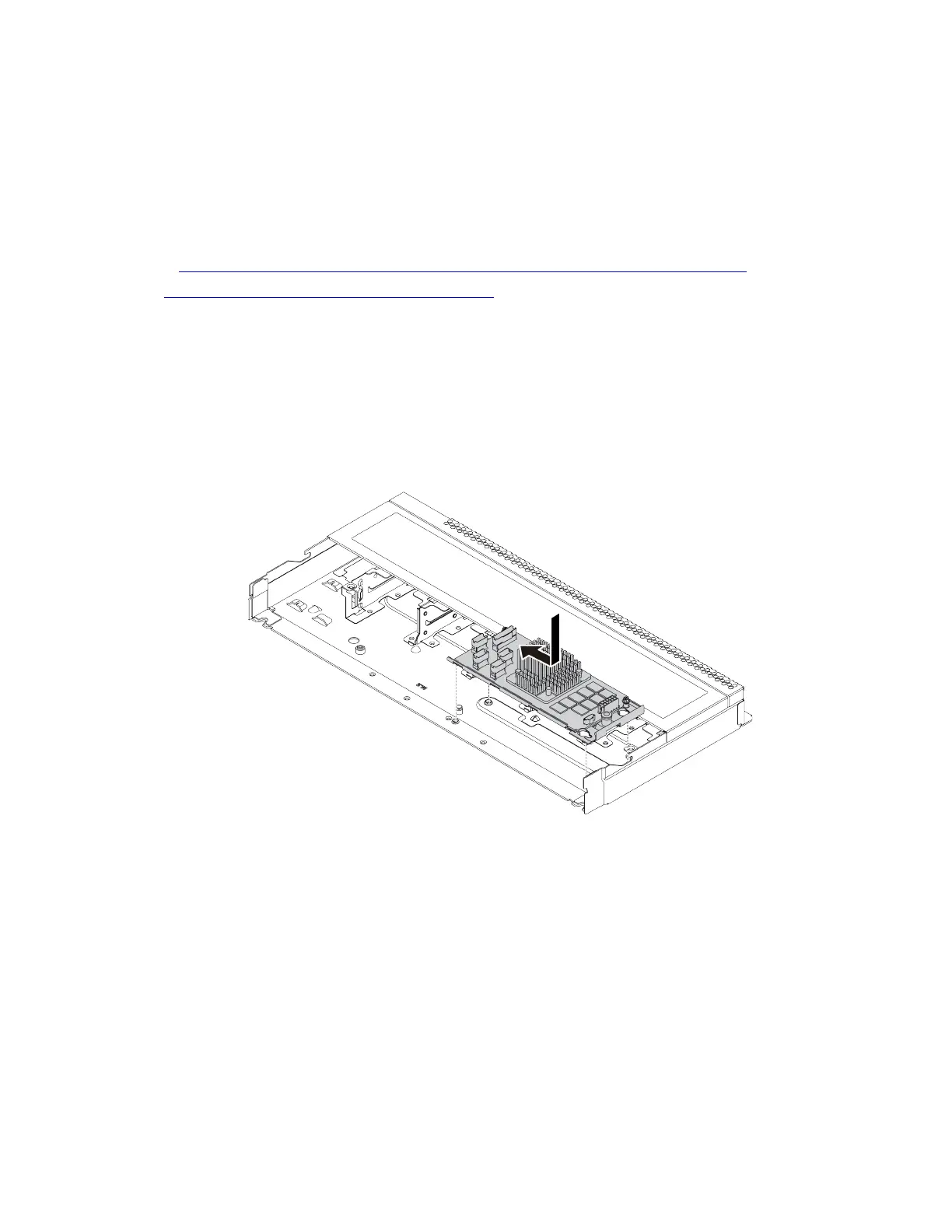

Figure 61. Internal RAID adapter installation
Step 4. Connect cables to the internal RAID adapter.
After you finish
Reinstall the components that you have been removed for installing the internal RAID adapter.
Install the RAID super capacitor module
Use this information to install the RAID super capacitor module.
About this task
Attention:
136 ThinkSystem SR645 Setup Guide
