Install the OCP 3.0 Ethernet adapter
Use this information to install the OCP 3.0 Ethernet adapter.
About this task
Attention:
• Read “Installation guidelines” on page 92 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DY1RaWHYM4xDloAwuBQHR0
• Youku: http://list.youku.com/albumlist/show/id_52339628
Procedure
Step 1. Touch the static-protective package that contains the OCP 3.0 Ethernet adapter to any unpainted
surface on the outside of the server. Then, take the OCP 3.0 Ethernet adapter out of the package
and place it on a static-protective surface.
Step 2. Remove the OCP bay filler if there is a filler installed.
Step 3. Attach the OCP 3.0 Ethernet adapter label that comes with this option on the rear of the server.

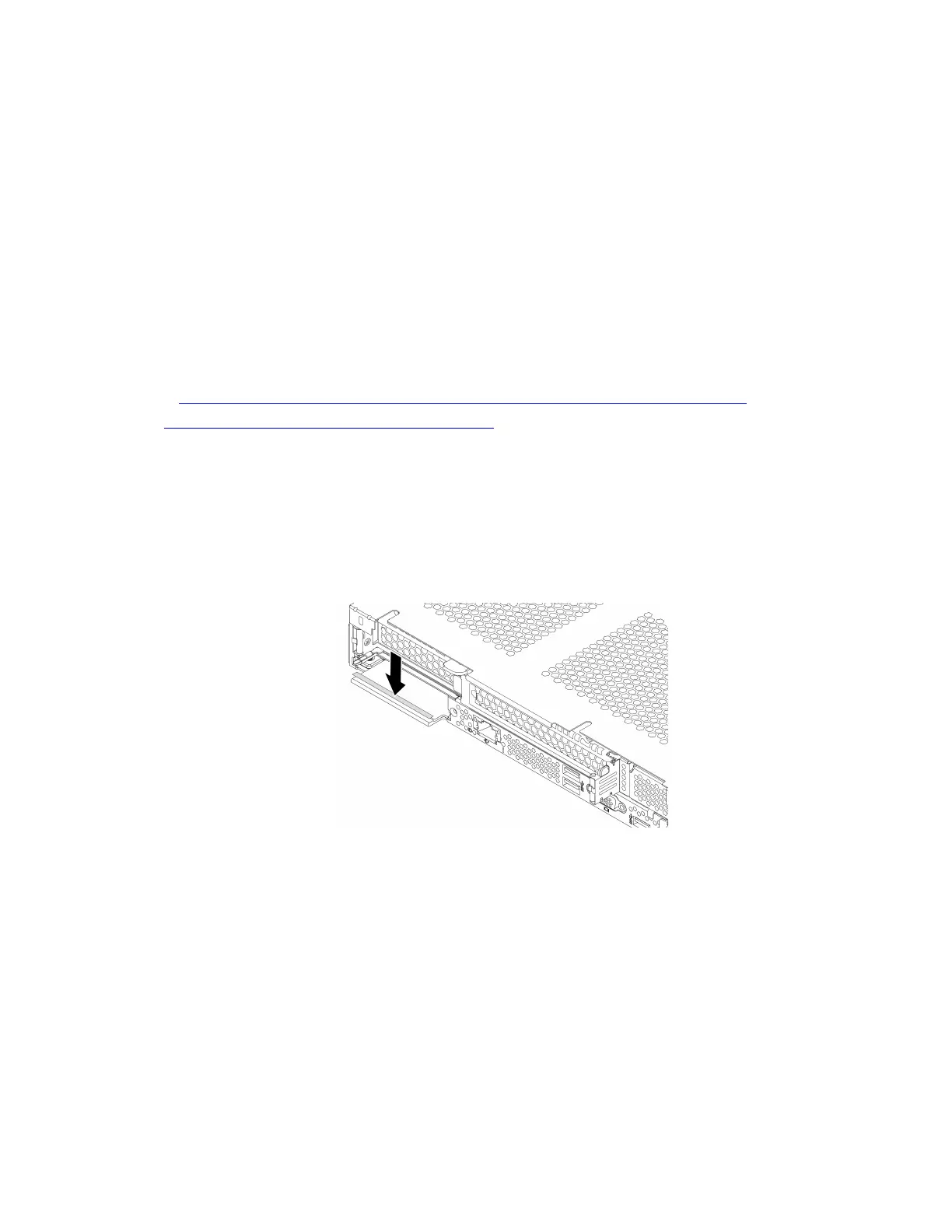

Figure 68. OCP 3.0 Ethernet adapter label installation
142 ThinkSystem SR645 Setup Guide
