Lenovo ThinkSystem ST250 V2 - Rear View

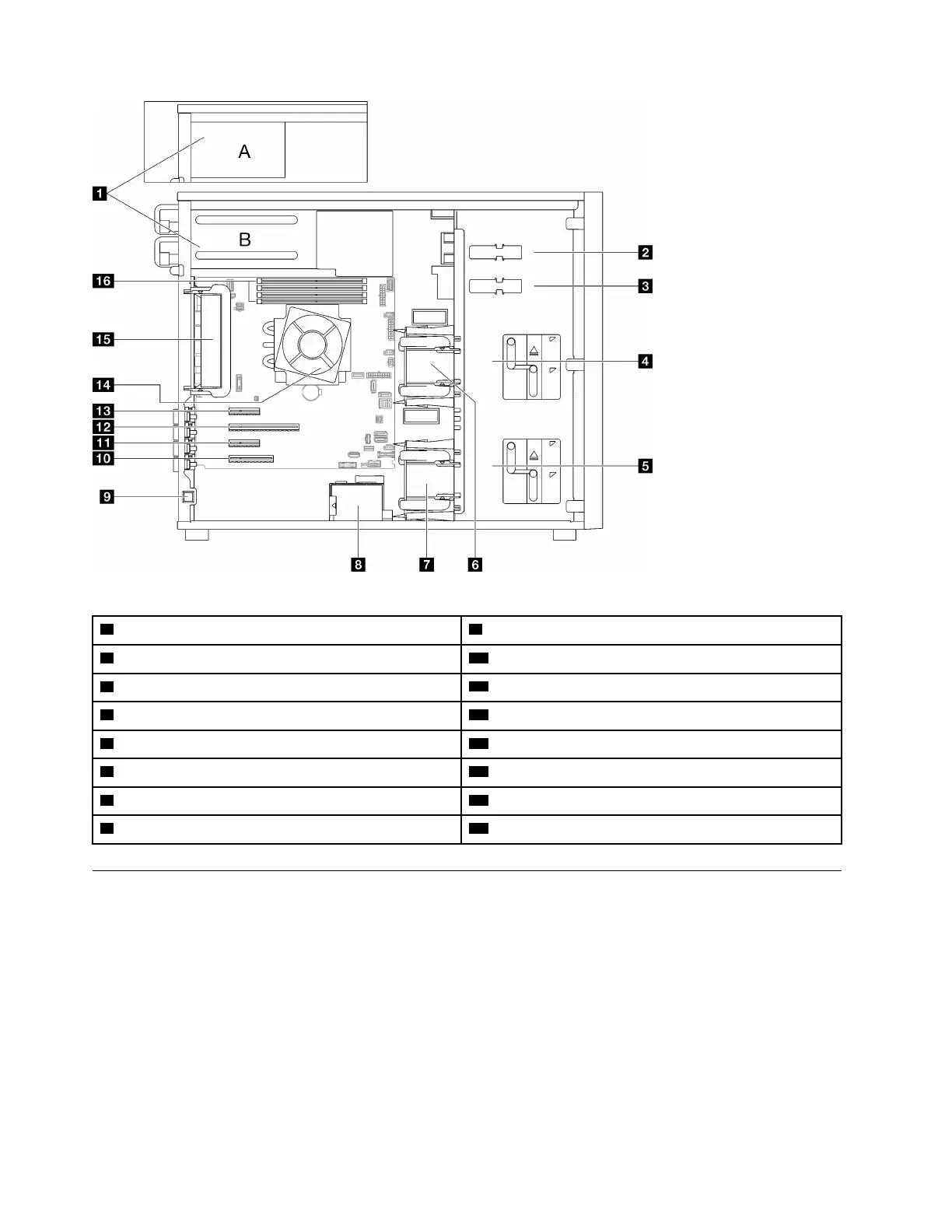

Table 5. Components on the server models side view
1
Power supply cage
9
Intrusion switch
2
Upper ODD drive bay
10
PCIe Slot 4
3
Lower ODD/tape drive bay
11
PCIe Slot 3
4
Upper storage drive cage
12
PCIe Slot 2
5
Lower storage drive cage
13
PCIe Slot 1
6
Front system fan 1
14
Processor and heat sink
7
Front system fan 2
15
Rear system fan
8
RAID flash power module holder
16
DIMM slots
Rear view
Use this information to locate the connectors and components on the rear of the server.
