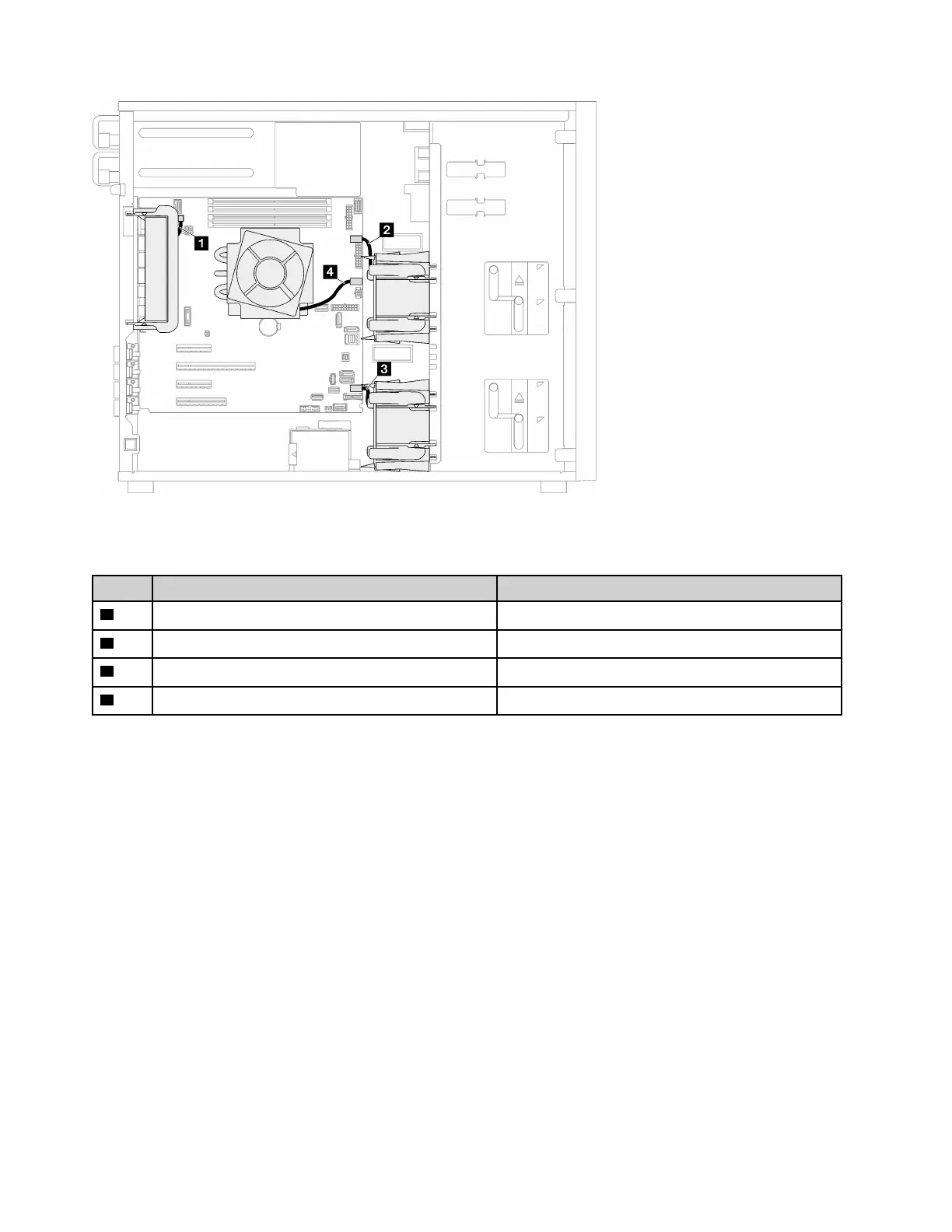

Figure 19. Fan power cable routing
Table 20. Location of fan power connectors on the system board
From To
1
Rear system fan Rear fan connector
2
Front system fan 1 Fan 1 connector for front fan
3
Front system fan 2 Fan 4 connector for front fan
4
Heat sink fan Fan 2 connector for processor
Front panel
Use the section to understand the cable routing for the front panel.
Note: Ensure that all cables are routed through the correct cable clips.
