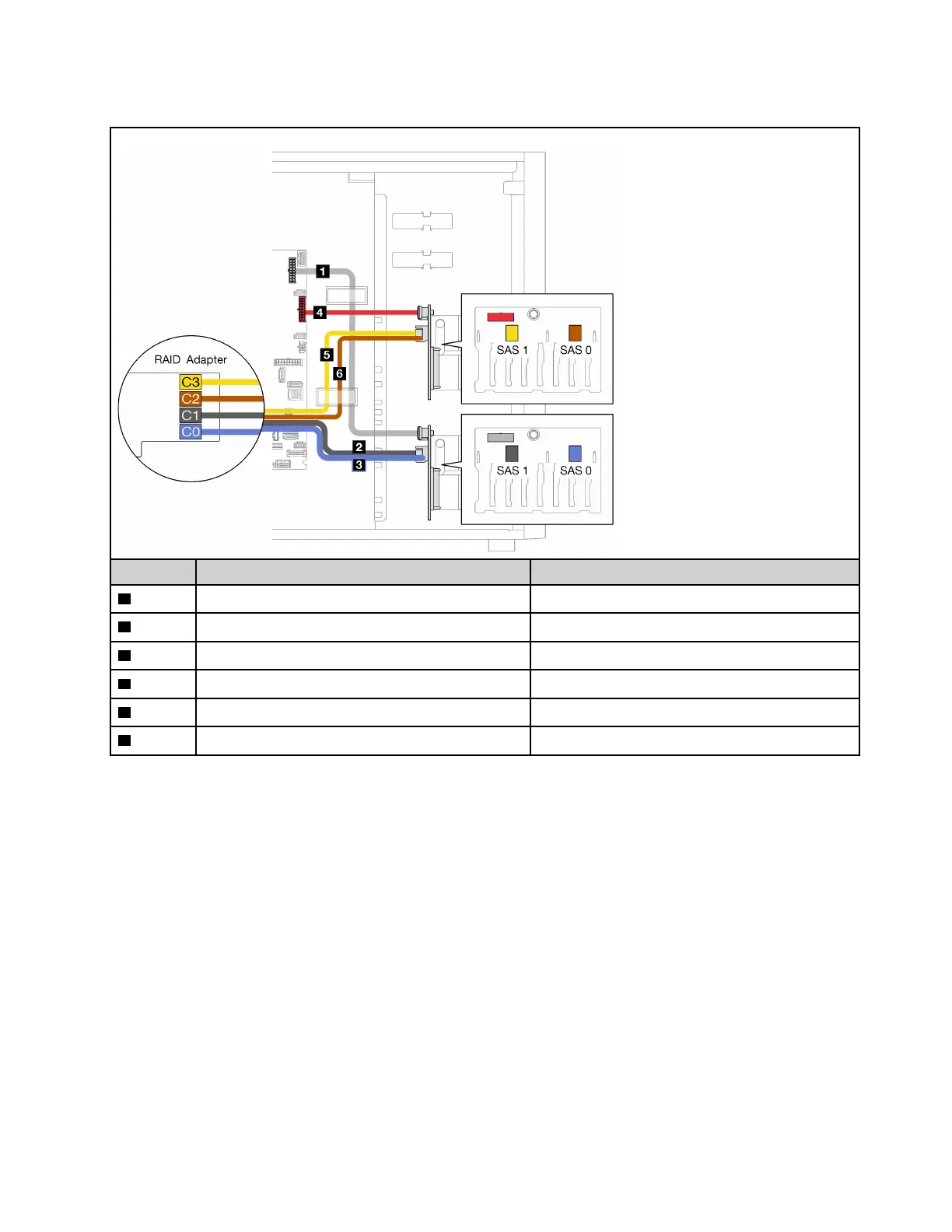

One 9350-16i RAID adapter
From To
1
Lower backplane power connector Backplane 1 power connector
2
Lower backplane SAS/SATA 1 connector C1
3
Lower backplane SAS/SATA 0 connector C0
4
Upper backplane power connector Backplane 2 power connector
5
Upper backplane SAS/SATA 1 connector C3
6
Upper backplane SAS/SATA 0 connector C2
Chapter 2. Server components 53
