Graphics adapter
Use the section to understand the cable routing for the graphics adapters.
Note: Ensure that all cables are routed through the correct cable clips.

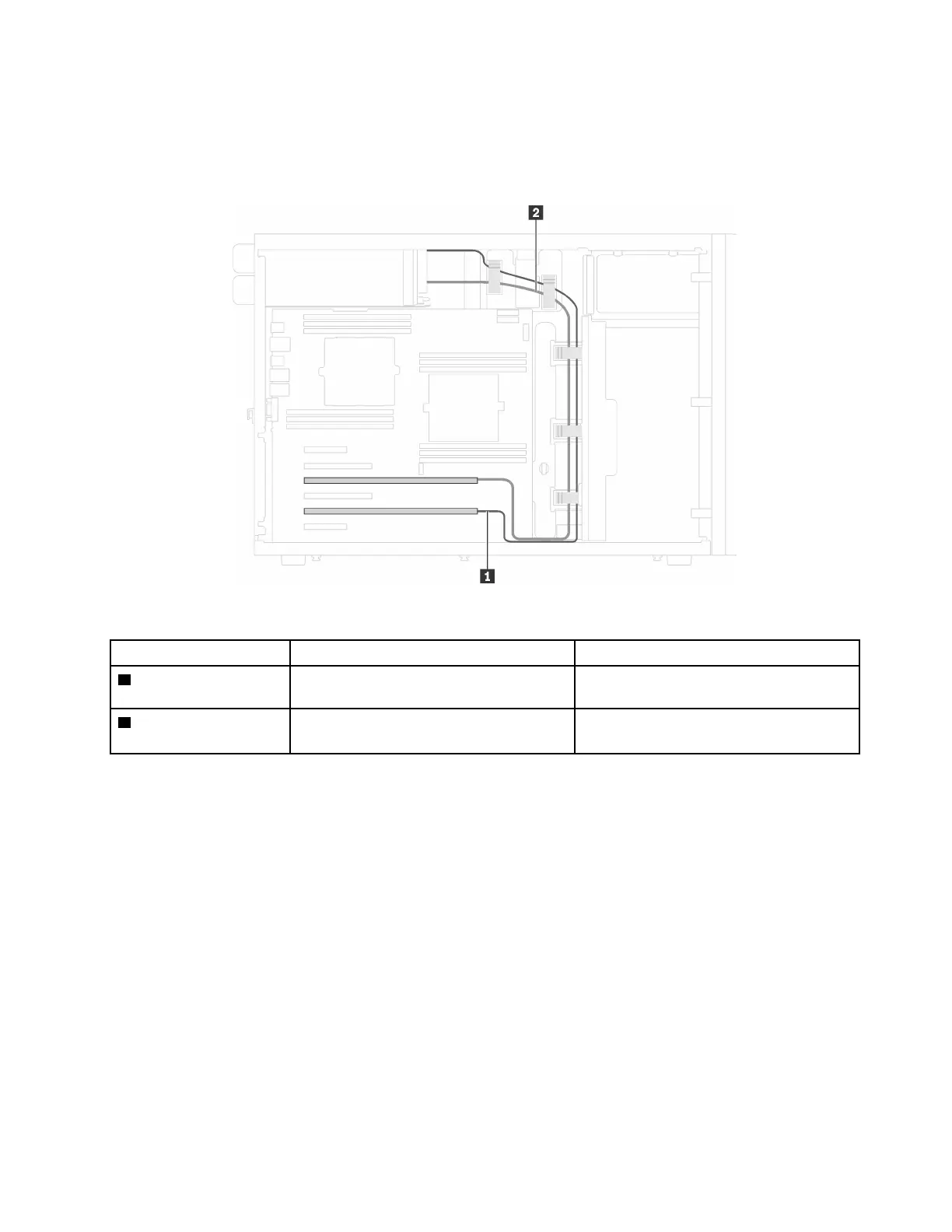

Figure 18. Cable routing for the graphics adapters
Cable
From To
1 Power cable Power connector on one graphics adapter
GPU 1 connector on the power interface
board
2 Power cable Power connector on another graphics
adapter
GPU 2 connector on the power interface
board
Chapter 2. Server components 35
